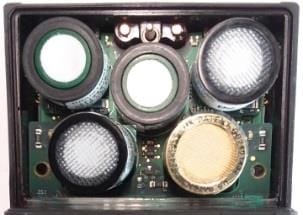

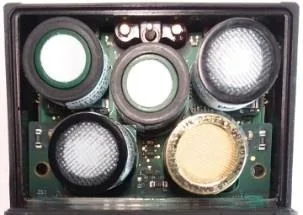

The MX6 gas detectors include field replaceable, plug-in sensors. The user can replace any sensor in the field and have the instrument in service after performing a simple field calibration. Up to 5 sensor can be installed, each in one or more specific location.

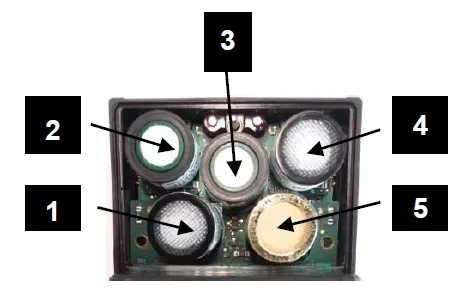

Up to five sensors can be installed, each in one or more specific locations. Installing a COSH (CO + H2S) sensor allows for a sensor configuration that provides gas readings for six gases. To support ingress protection, use a compatible plug in place of any uninstalled sensors.
In addition to the location restrictions for each sensor (below), these installation restrictions also apply:
Click the Part Numbers below for more detail and to purchase the desired cells
| Part Number | Gas | Measurement | Response Time | Location | ||
| Range | Resolution | T50 | T90 | |||
| 17124975-3 | Oxygen (O2) | 0-30% Vol | 0.10%Vol | 6 Secs | 15 Secs | Any |
| 17124975-K | LEL Pentane (C5H12) (Catalytic) | 0-100% LEL | 1% LEL | 15 Secs | 35 Secs | 5 Only |
| 17124975-L | LEL Methane (CH4) (Catalytic) | 0-100% LEL | 1% LEL | 15 Secs | 35 Secs | 5 Only |
| 17124975-P | LEL Hydrocarbons (Propane) (Infrared) | 0-100% LEL | 1% LEL | 15 Secs | 35 Secs | 4 or 5 Only |
| 17124975-S | Methane (CH4) (Infrared) | 0-100% LEL | 1% LEL | 10 Secs | 25 Secs | 4 or 5 Only |
| 17124975-M | Methane (CH4) (Catalytic) | 0-5% Vol | 0.01% Vol | 10 Secs | 25 Secs | 5 Only |
| 17124975-6 | Ammonia (NH3) | 0 to 500ppm | 1ppm | 21 Secs | 78 Secs | Any |
| 17124975-Q | Carbon Dioxide (CO2) (Infrared) | 0 to 5% Vol | 0.01% Vol | 10 Secs | 25 Secs | 4 or 5 Only |

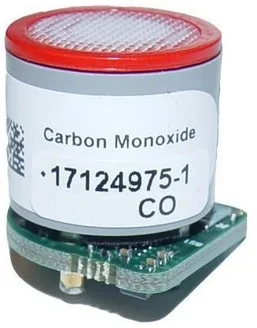

| 17124975-1 | Carbon Monoxide (CO) | 0 to 1,500ppm | 1ppm | 10 Secs | 25 Secs | Any |
| 17124975-H | Carbon Monoxide High (CO) | 0 to 9,999ppm | 1ppm | 8 Secs | 19 Secs | Any |
| 17124975-G | Carbon Monoxide Hydrogen Low (CO/H2 Low) | 0 to 1,000ppm | 1ppm | 9 Secs | 20 Secs | Any |
| 17124975-J | Carbon Monoxide/ | 0 to 1,500ppm | 1ppm | 12 Secs | 30 Secs | Any |
| Hydrogen Sulphide (CO/H2S) | 0 to 500ppm | 0.1ppm | 12 Secs | 30 Secs | ||
| 17124975-7 | Chlorine (Cl2) | 0 to 50ppm | 0.1ppm | 6 Secs | 35 Secs | Any |
| 17124975-8 | Chlorine Dioxide (ClO2) | 0 to 1ppm | 0.01ppm | 7 Secs | 60 Secs | Any |
| 17124975-C | Hydrogen (H2) | 0 to 2,000ppm | 1ppm | 25 Secs | 65 Secs | Any |
| 17124975-A | Hydrogen Chloride (HCl) | 0 to 30ppm | 0.1ppm | 17 Secs | 93 Secs | Any |
| 17124975-B | Hydrogen Cyanide (HCn) | 0 to 30ppm | 0.1ppm | 25 Secs | 80 Secs | Any |
| 17124975-2 | Hydrogen Sulphide (H2S) | 0 to 500ppm | 0.1ppm | 7 Secs | 20 Secs | Any |
| 17124975-4 | Nitrogen Dioxide (NO2) | 0 to 150ppm | 0.1ppm | 7 Secs | 18 Secs | Any |
| 17124975-D | Nitric Oxide | 0 to 1,000ppm | 1ppm | 7 Secs | 28 Secs | Any |
| 17124975-9 | Phosphine | 0 to 5ppm | 0.01ppm | 5 Secs | 18 Secs | Any |
| 17124975-E | Phosphine High | 0 to 1,000ppm | 1ppm | 8 Secs | 40 Secs | Any |
| 17124975-5 | Sulphur Dioxide | 0 to 150ppm | 0.1ppm | 5 Secs | 20 Secs | Any |
| 17124975-R | PID (Volatile Organic Compound VOC) | 0 to 2,000ppm | 0.1ppm | 15 Secs | 20 Secs | 4 or 5 Only |
