PS4500
PS4500 Differential Pressure Switch in an IP54 enclosure. Adjustable Range 500-4,500 pascals with a NO/NC contacts, suitable for up to 3A / 250vAC. 5mm Diameter Male pressure connections. 25kPa Proof Pressure and 50kPa Burst Pressure. Operating Temperature -20 to +60°C, (0-95%RH Non-Condensing). Dimensions 105 x 73 x 63mm...
RMS1-TT-1101616-0X-GR-MB
Remote I/O Module, 16 NPN digital inputs, 16 Open Collector Digital Outputs. RS232/RS485 Modbus ASCII/RTU Communication, Wide power supply range: 10 up to 30vDC, DIN rail mounting...
Series 10L Piezoresistive OEM Pressure Transducers
The 10L Series of pressure transducers have a robust housing made of Stainless Steel, giving them long-term stability for a range of OEM applications. The metal diaphragm is laser welded on front-flush and gap free, ensuring the piezoresistive pressure sensor is separated from the measuring medium. Every 10L pressure transducers..
Tinytag Plus 2 Instrumentation Data Loggers for mA & Voltage
These Tinytag Plus 2 loggers are designed to monitor standard mA or vDC inputs in the ranges of 0-25mA, 0-2.5 and 0-25vDC. The TGP-4703 cover a voltage range of 0-2.5vDC and the TGP-4704 0-25vDC. The TGP-4804 covers a current range of 0-25mA. The unit has a waterproof case and features..
WD-CS-25M
Water Leak Detection Cable. PVC Twisted pair cable with 316 stainless steel elements. Cable is 3.5mm diameter with a 3m leader and 25m of sensor cable...
WPH-N-150
WPH Type Woltmann Helix Hot Water Meter. Pipe diameter 150mm with PN16 flanged connections, flow range: Qmin 6 m3/hr; Qn 150m3/hr; Qmax 350m3/hr. Epoxy coated cast Iron body suitable for up to water up to 90 C. Additional pulse output options from 1,000 to 10,000 Ltr/pulse are available at the..

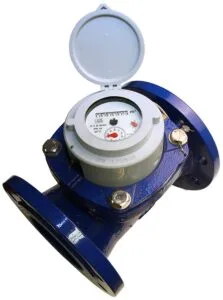

WPI-SDC-150
WPI-SDC Irrigation Water Flowmeter. Pipe diameter DN150 with standard PN16 flanges. Flow range Q1 20m³/h, Q2 32m³/h, Q3 400m³/h and Q4 500m³/h. IP68 Epoxy Coated Iron body with replaceable copper can mechanism. Additional pulse output options from 0.1 to 1 m³/pulse are available at the time of order. (Please order..
8801810020
WL420 Submersible Hydrostatic Level Transmitter. Depth Range 10mH2O. 2-Wire Loop Powered 4-20mA Output with a 12-36vDC Power Supply. 20m Polyurethane (PUR) Cable with Ventilation Tube. Over-Pressure 200% FS, Burst Pressure 500% FS. Stainless Steel Sensor with 105mm Body Length and 26.5mm Diameter...
8801816020
WL420 Submersible Hydrostatic Level Transmitter. Depth Range 16mH2O. 2-Wire Loop Powered 4-20mA Output with a 12-36vDC Power Supply. 20m Polyurethane (PUR) Cable with Ventilation Tube. Over-Pressure 200% FS, Burst Pressure 500% FS. Stainless Steel Sensor with 105mm Body Length and 26.5mm Diameter...
AT01 CH7 Battery Powered LCD Counter Display
The AT01 CH7 is an LCD display for total flow, with pulse input, 1 count per pulse, range from 0-9999999 counts. The unit is battery powered with long life lithium battery. Panel mount, dimensions 48mm x 24mm..
AV-MPS-2000
AV-MSP-2000 Air Velocity Probe Set for Larger Ducts or Turbulent Flows. Suitable for ducts from 1900-2100mm. Probe is made from 304 Stainless Steel with 6mm id Plated Brass Pressure Connections and Stainless Steel Duct Flange, 52mm Diameter. Probe Diameter 26mm. Set includes a pair of probe, one to monitor the..

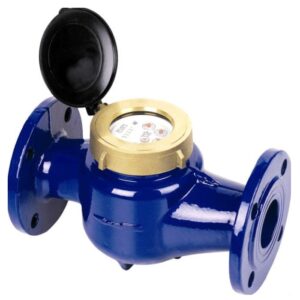

BETA-MJ-SDC(5R)50FL
50mm BETA Multi-Jet Cold Water Flow Meter. Pipe diameter 50mm with 2 inch PN16 Flanged connections, flow range: Qmin 312.5 L/hour; Qn 25m³/hr; Qmax 31.2m³/hr. Epoxy coated Cast Iron body suitable for up to water up to 30 C with WRAS Approval. All BETA Flowmeters come prepared for a pulse..
CA-10/159
140J-V Ameresco Photovoltaic Solar Panel Max power 140W, with a charging current of up to 8.0A at a Nominal voltage of 12V (Max 17.5V). Panel includes 36 crystalline silicon cut cells connected in series with EVA encapsulated 3.2mm high transmission glass front cover and white polyester backing on to a..
CA-10/209
100W SunWare Photovoltaic Solar Panel, SW-20185. Charging current of up to 5.75A at a nominal 12V (Max 18.42V). Light-weight mounting plate made from Aluminium sandwich, powder-coated white with 8 drill holes for mounting panel. Panel may also be secured using glue or SunWare fixing clips (available separately). Front junction box..
CA-12/0140
Solar Mounting Kit for a 140W Ameresco Solar Panel U-bolts are required for pole mounting..
CA-17/26
Absorbed Glass Matt (AGM) Battery. Storage Capacity 135Ah, Output 12V. Dimensions: 408 x 176 x 227mm. Weight: 35Kg..
CA-17/32
Sealed Gel Battery. Storage Capacity 60Ah, Output 12V. Dimensions: 228 x 137 x 207mm. Weight: 17.5Kg..
CTH-300A-5V-24VDC
CTH type 5 DC current sensor range 0-300 AMPS DC, output 0-5v DC, power supply 24v DC, with 21mm diameter hole...
DBCL In-Line – Bi-directional Load Cell
Ranges 1 tonne to 300 tonnes, output 1.5mV/V, accuracy 0.20%, sealed to IP66 (IP67 & IP68 submersible optional)..
DTI-EMF-DN200-HR-PN16
DTI-EMF Series Electromagnetic Flow Meter. DN200 - DIN Flanged, 200mm Pipe Diameter. HR - Hard Rubber Lining. PN16 - 16 Bar Pressure Rating. Electrodes, Power Supply, and any other additional options, must be purchased with this flow meter...
EL-WiFi-T Wireless Temperature Logger
This wireless data logger measures temperature and send the collected information via a WiFi network back to a PC for monitoring. The internal memory can retain up to 1 million data set entries between downloads. Measurement ranges are -20 to +60°C (-4 to +140F). The logger has a rechargeable lithium..
GMX260 Marine Weather Station for Wind Speed & Direction
The MaxiMet GMX260 Marine is similar to the GMX200 with an improved environmental protection, IP68, 6-axis compass and M12 Connection. Allowing it to survive harsh weather conditions encountered by buoys and unmanned surface vessels, including short-term immersion and compensation for tilt with pitch and roll data. Wind speed and direction..
HS-170 Premium Accelerometer with AC Output
The HS-170 Series of compact accelerometers are designed with a premium shear method with either a top entry or 90° side exit housing. These units are available with various mounting, cabling and connector options that will suit a variety of different applications. The side entry version is also available as..

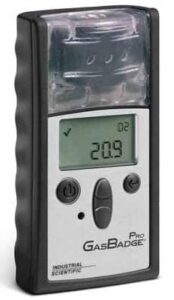

IPRO607
GasBadge Pro Personal Single Gas Monitor for Chlorine (Cl2). Range 0-100 ppm in 0.1ppm increments. 1 Year continuous data logging, plus event logging for last 15 alarm events. Backlit LCD display. Ultra-bright LED, vibrating and audible (95dB) alarms with STEL and TWA and selectable low and high alarm levels. Rugged,..
