AMS-DIG8
8 Channel extension for the AMS LAN all-in-one Data Aquisition Units. Provides an additional 8 digital channels through 8 galvanically isolated optocoupler inputs and relay outputs. The AMS-DIG8 is installed on to a new AMS42 via an additional backplane and is only available when purchased with a new AMS42 System...
AMS-HANDLE
Practical carrying handle for AMS all-in-one Data Aquisition Units...
AMS-HANDLE2
Two metal carry handles for AMS all-in-one Data Aquisition Units. Suitable for the following amplifier measurement systems: AMS42/AMS84, AMS42-LAN16F/AMS84-LAN16F, and AMS42-USB/AMS84-USB...
AMS-K-BIN5
AMS-K Series Cassettes for 5B Modules. Cassettes have a 5-pin Binder socket (712 series). Suitable 5B Modules are available separately...
AMS-K-BLANK
Blank AMS-K Series Cassettes. Protects the AMS units from external influences...
AMS-K-BNC
AMS-K Series Cassettes for 5B Modules. Cassettes have a BNC female connection, allowing a Hi and low signal suitable for using 2-way sensors. 5B Modules are available separately...
AMS-K-CO5
AMS-K Series Cassettes for 5B Modules. Cassettes have a 5-pin socket for connecting a 5-pin screw type terminal block (ZU5STL). 5B Modules are available separately...
AMS-K-THK
AMS-K Series Cassettes for 5B Modules. Cassettes have a K Type thermocouple socket for temperature measurement inputs. Suitable 5B Modules are available separately...
AMS42-EXT8
8 Channel extension for the AMS42 all-in-one Data Acquisition Units. Provides an additional 8 analogue channels for fitting AMS-K cassettes and 5B modules. The AMS42-EXT8 is installed on to a new AMS42 via an additional backplane and is only available when purchased with a new AMS42 System. AMS-K cassettes and..
AMS42-LAN16FX
AMS42-LAN16fx All-In-One Measurement System. 8 Amplifier Inputs via AMS-K Cassettes and 5B Amplifiers with 16-Bit Resolution and 250kHz Total Sampling Rate. A further 8 Analogue Inputs and 2 Analogue Outputs are available via 37-pin Sub-D Connector. 32 Digital Input/Outputs, plus Three 32-Bit Counter Input. Power Supply 9-40vDC, (max 20W, depending..
AMS42-USB
AMS42-USB All-In-One Measurement System. 8 Amplifier Inputs via AMS-K Cassettes and 5B Amplifiers with 16-Bit Resolution and 250kHz Total Sampling Rate. A further 8 Analogue Inputs and 2 Analogue Outputs are available via 37-pin Sub-D Connector. 32 Digital Input/Outputs, plus Three 32-Bit Counter Input. Power Supply 9-40vDC, (max 20W, depending..
AMS84-LAN16FX
AMS84-LAN16fx All-In-One Measurement System. 16 Amplifier Inputs via AMS-K Cassettes and 5B Amplifiers with 16-Bit Resolution and 250kHz Total Sampling Rate. 2 Analogue Outputs are available via 37-pin Sub-D Connector. 32 Digital Input/Outputs, plus One 32-Bit Counter Input. Power Supply 12-40vDC, (max 20W, depending on number of 5B modules used)...
AMS84-USB
AMS84-USB All-In-One Measurement System. 16 Amplifier Inputs via AMS-K Cassettes and 5B Amplifiers with 16-Bit Resolution and 250kHz Total Sampling Rate. 2 Analogue Outputs are available via 37-pin Sub-D Connector. 32 Digital Input/Outputs, plus One 32-Bit Counter Input. Power Supply 9-40vDC, (max 20W, depending on number of 5B modules used)...
ANTCFD890EL
Dipole Antenna, 2dBi gain, 5m cable. Suitable for the 868MHz Frequency range...
AP-LITE

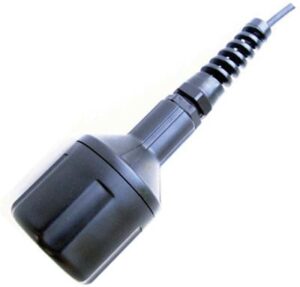

AP-LITE single parameter probe with an integrated temperature sensor and socket for one of the AP-LITE Optical Electrodes. Unit is IP68 rated with immersion depth from a minimum 75mm to 30m for permanent submersion, max 100m (limited to 12 hours). Dimensions: 250mm length with a 24mm diameter, total weight 400g...
AP2A
Mounting backplane for up to 2 5B series amplifiers. Power supply 9-40vDC or +5vDC ( max 1.5 amps )...
AP8A
Mounting backplane for up to 8 5B series amplifiers. Power supply 9-40vDC or +5vDC ( max 1.5 amps )...
0362611
Waterproof 4-pin plug connector with 10m of pre-wired high quality yellow signal cable with 4 wires and a shield covered with black sleeve. Suitable for the following Kipp & Zonen equipment. CMP Series pyranometers, CGR3 & CGR4 pyrgeometers and CVF4 & CNF4 ventilation units...
18107011

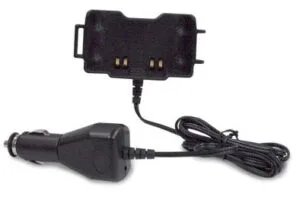

Single-Unit Automotive Charger with 12vDC cigarette lighter plug for MX6 multi-gas detector...
820KCG13DI

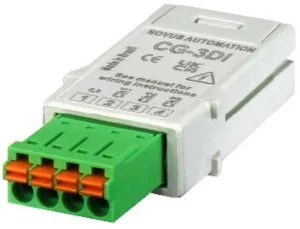

CG-3DI ClickNGo Module, 3 Digital Input Module. Size 1 Module with three PNP, NPN or Dry Contact inputs. Operating Temp -20 to +60°C, 80%RH. Dimensions: 53.8 x 10.6 x 22.2mm, Weight: 10g. IP50 when installed in controller...
DTI-EMF-ELECTRODE-TITANIUM
Titanium Electrodes for DTI-EMF Electromagnetic Flow Meter. Suitable for: Salts (Chloride, Magnesium Aluminium, Calcium, Iron, (etc); Sodium Salt, Potassium Salt, Hydrochlorite, Sea Water; Potassium Hydroxide, Hydroxide Amine, Barium Hydroxide Alkali Solution. (Concentration less than 50%); Acids (Hydrochloric, Sulphuric, Phosphoric, Hydrofluoric and other Reducing Acids...
GL7-L/P

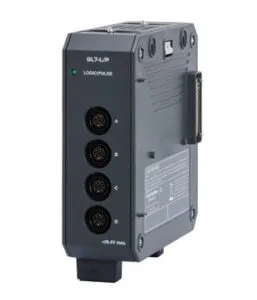

16 channel logic pattern or pulse count module. Bi-level signal, up to 24V, select either Logic or Pulse mode, Logic: Signal pattern, Pulse: Counting in instant, accumulating, rotation (max. 15 million count). Sampling rate Logic: up to 1s interval, Pulse: up to 100s. 4 circular connectors (10 position, socket) with..
GS-3AT
GS-3AT Acceleration and temperature sensor. Acceleration, in 3-axes, range max 10g. Temperature -10 to 50°C. The sensor can provide Peak (largest value each interval), average (mean value during interval) and RMS (root mean square value) acceleration readings at set sampling rates of 500ms up to 60 mins (Sub-sampling interval is..
OceanDISP-1K
OceanDISP-1K subsea LED display unit suitable for displaying sensor readings from Datataker DT80 and DT85 data loggers. Light activated scrolling display with programmable scroll interval. Suitable for depths up to 1,000m..
