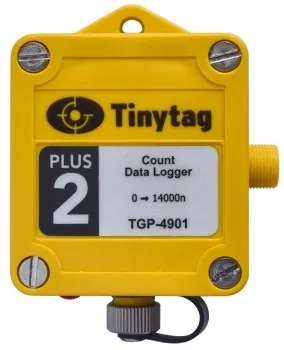

Tinytag Plus 2 Instrumentation Data Loggers for Digital Inputs

These Tinytag Plus 2 loggers are designed to monitor digital and contact inputs. The logger can count up to 14,000 per logging interval with a max 50Hz frequency. Digital inputs with low levels ±0.3V and high 3-5V and contact inputs as simple open or closed circuits. The unit has an IP65 case and features a large memory, a fast offload speed and a low battery monitor. These units are supplied with a 1.5m long input lead with flying leads for easy connection.

Need help finding the right product?

Description

The TGP-4910 is part of the Tinytag Instrumentation data logger range and has been designed to log count inputs from digital or volt-free contact switch inputs. The TGP-4910 will accept inputs at up to 50Hz and totalise up to 14,000 counts per logging interval. The loggers can be factory configured for use with a third-party sensors and are suitable for applications such as flow rate, utility meter, rainfall monitoring and object/people counting

Features

  • High accuracy and reading resolution
  • Low battery monitor
  • Count logger, 0 to 14,000 counts
  • 32,000 reading memory
  • Case waterproof to IP68
  • CAB-3246 input cable supplied
  • User-replaceable battery
  • Delayed start option
  • Factory custom scaling available  (-ED option)

Specifications

Memory Type: Non-volatile
Readings: 32,000
Delayed Start: Relative / Actual (up to 45 days)
Stop Options: When full, After No. of Readings, Never (wrap around)
Reading Types: Actual
Logging Interval: 1 second to 10 days
Offload: While stopped or when logging in minute multiples
Alarms: Two, fully programmable
Functional Range: -40°C to +85°C
Dimensions: Diameter 60mm, Depth 35mm
Weight: 85g

The unit has a waterproof case and features high reading resolution and accuracy, a large memory, a fast offload speed and a low battery monitor.

Each logger is supplied with a 1.5m input cable, CAB-3246.

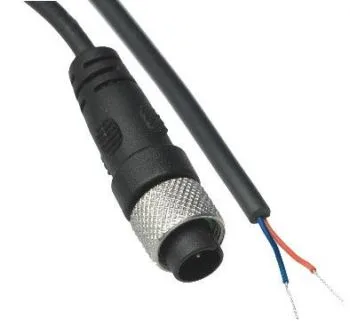

CAB-3246  Tinytag Count Input Lead
Cable Length 1.5m
Cable Material: PVC
Temp Rating: -10 to +85°C
IP Rating: IP68 (Connector)
Weight: 35g

A 2-pin plug, ACS-9700, is available separately.

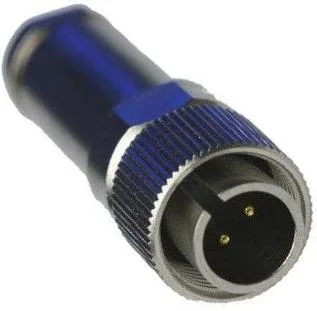

ACS-9700  2-Pin Plug
Shell Material: Brass and Zinc Alloy (Nickel plated)
Contact Material: Cooper Allow (Gold plated)
Temp Rating: -40 to +85°C
IP Rating: IP68 (-25 to 85°C)
Weight: 15g



The standard configuration will record the number of pulses seen during each user-defined logging interval. Loggers can be factory configured for use with a third-party sensor, with specific totalising, for applications such as flow rate, utility meters monitoring, rainfall and object/people counting. To confirm that this logger can be configured to work with a specific sensor, please contact us or fill in the attached Configuration Form. Without Custom Configuration, the logger will only show the counts per logging interval.

Product

Ref

Price

Product Description

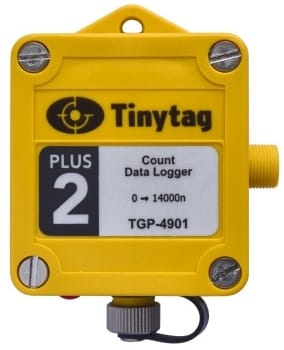

TGP-4901

£125.00

Tinytag Plus 2 Count data logger. Range 0-14000 counts per logging interval, max 50Hz. Memory for 32,000 readings. Logging rate 1 sec to 10 days. Battery life up to 2 year. Splash proof I.P. 65 case. Unit is supplied with the 1.5m Count input Lead, Ref: CAB-3246.

TGP-4901-ED

£175.00

Tinytag Plus 2 Count data logger. Range 0-14000 counts per logging interval, max 50Hz. Memory for 32,000 readings. Logging rate 1 sec to 10 days. Battery life up to 2 year. Splash proof I.P. 65 case. Unit is supplied with the 1.5m Count input Lead, Ref: CAB-3246. Custom Scaling to show readings in required units, ie. mm, kWh, etc.

ACS-9700

£25.00

2-pin plug. Suitable for use with TGPR-0804, TGPR-1001 and TGPR-1201 communication interface and on various loggers for the temperature sensor inputs.

CAB-3246

£20.00

Tinytag CAB-3246 Count Input Lead for connection of 2-wire input signals to Tinytag data loggers. Includes a 2-pin connection to logger and 1m flying tails.

ACS-6000

£10.00

Trigger Start Magnet for various Tinytag data loggers. The magnet is ideal for delayed triggering of Tinytag loggers that have been set up for a trigger start. The magnet is merely passed over the correct location on the logger and the lights will start to flash showing that logging procedure has been started. The position of the unit’s trigger start switch is indicated by the • • • label on the back of the logger.
