Tinytag Data Loggers

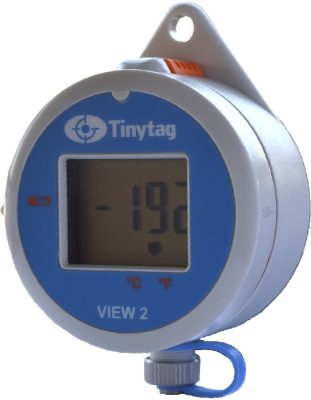

CR-0100 Tinytag Dry Shipper

Tinytag Dry Shipper

The Tinytag Dry Shipper CR-0100 is a specialised, ultra-low temperature cryogenic data logger engineered to travel inside liquid Nitrogen dry shippers and Dewars. Based on the robust Tinyview 2 hardware chassis, this unit is specifically adapted to monitor high-value biological assets, such as stem cells, embryos, semen, and tissue samples, during international transit. Featuring an integrated, heavy-duty stainless steel PT1000 probe extending directly from the base of its splashproof housing, the CR-0100 delivers continuous, traceable thermal validation down to -200°C.

Core Features & Technical Breakdown

  • Integral Cryogenic PT1000 Probe: Features a rigid, 150 mm long X 4 mm diameter stainless steel probe fixed directly to the logger’s base. This allows the electronic housing to sit securely near the top neck of a dry shipper while the probe extends straight down into the cryogenic vapor zone.
  • Real-Time Digital Display: The high-contrast, built-in LCD screen provides immediate visibility of current temperatures down to -196°C or lower. It also displays clear icon indicators for low battery power and active alarm breaches without needing a PC connection during critical site loading windows.
  • High-Volume Protected Data Storage: Captures up to 32,000 continuous readings in non-volatile flash memory, ensuring that data is never lost or wiped if the battery drains completely during an extended international flight or customs delay.
  • High-Speed Data Extraction Options: Fully compatible with standard Tinytag USB download cables (CAB-0005-USB) for rapid panel configuration and data offloading through the unified Tinytag Explorer software platform.
  • Programmable 2-Point Alarms: Supports user-defined high and low alarm thresholds. If a dry shipper fails or loses its vacuum seal mid-transit, causing temperatures to rise into dangerous critical bands, a red indicator icon triggers instantly on the digital interface.

Core Technical Specifications

  • Measuring Range: -200°C to +100°C (Optimised for liquid Nitrogen vapour tracking).
  • Logging Interval: User-programmable from 1 second up to 10 days.
  • Case Protection: IP65 Splashproof rating (Protects against vapor condensation and frost during container opening).
  • Internal Battery: User-replaceable internal battery tailored for prolonged stability at extreme thermal ranges.

Data Management & Regulatory Validation

Every Tinytag Dry Shipper CR-0100 integrates seamlessly into your existing quality management framework via Tinytag’s unified software infrastructure:

  • Tinytag Explorer Software: Avoid the headache of managing fragmented systems. The CR-0100 uses the exact same software license as your Transit 2 cargo discs or clinic-floor Tinytalk loggers. This lets you merge cold-transit dewar data directly with static storage charts onto a single master validation report.
  • Tamper-Proof Data Security: Extracted data is saved in a secure, encrypted .ttd format. This file structure prevents unauthorized manipulation or data editing, ensuring complete compliance with FDA 21 CFR Part 11 and international medical audit guidelines.
  • Custom Cryogenic Calibration: Because bio-banking requirements are exceptionally strict, these units support specialised low-temperature calibration certificates (purchased separately) mapped directly to your specific critical control points, such as -196°C (liquid Nitrogen liquid phase) and -80°C (dry ice boundary lines).

Applications

Monitoring the transport of gametes, embryos, and stem cells in dry vapour shippers to ensure viability across international borders.
Validating ultra-low temperature storage during the distribution of specialized vaccines and biological treatments.
Secure data acquisition for high-value biological samples in laboratory and healthcare environments.
Real-time monitoring for logistics providers specializing in Nitrogen dry vapour shipping containers.

Frequently Asked Questions

▶ Q: What is the measurement range of the CR-0100 probe?
A: The integrated PT1000 probe is specifically designed for cryogenic applications, capable of measuring temperatures down to -196°C in nitrogen dry vapour.
▶ Q: Which cryogenic vessels is the Tinytag Dry Shipper compatible with?
A: This logger is designed for universal fitment on the lids of most standard nitrogen dry vapour flasks, such as the MVE SC2/1v, used for transporting biological samples.
▶ Q: Can the logger body be exposed to cryogenic temperatures?
A: No, the logger case has an operational range of -20°C to +70°C. It is designed to be mounted on the flask lid with only the 252mm probe inserted into the extreme cold.
▶ Q: How many readings can the Dry Shipper logger store?
A: The device features a non-volatile memory capable of storing up to 30,000 readings, ensuring data is retained even if the battery is replaced.
▶ Q: Does the unit provide real-time temperature alerts?
A: Yes, the logger features a digital LCD for current readings and user-programmable alarms that trigger a visual warning on the display if limits are exceeded.
▶ Q: What software is required to download the data?
A: The logger requires Tinytag Explorer software to configure logging intervals, set alarms, and download data into graphs or Excel-compatible tables.
▶ Q: How often does the battery need to be replaced?
A: The battery typically lasts for 1–2 years depending on logging frequency. We recommend replacing it annually using the SER-9500 service kit to maintain the IP65 seal.
▶ Q: Can I get a calibration certificate for this logger?
A: Yes, traceable calibration certificates can be provided at the time of purchase or during annual servicing to ensure compliance with quality standards.
CR-0100

CR-0100

The Tinytag Dry Shipper allows the monitoring of products being shipped in cryogenic vessels employing Nitrogen dry vapour, generating low temperatures from evaporating liquid Nitrogen. The disp[ay securely mounts to the flask lid, with the probe extending into the tank via an insulating plug. Large memory capacity of 32,000 readings and 2 programmable, latchable alarms. Logging rate 1 sec to 10 days with min, max & actual readings.

£360.00
Add to Basket More Info
SWPK-7-USB

SWPK-7-USB

Tinytag Explorer Software and download cable starter pack. The SWPK-7-USB starter pack contains a USB download cable, Software Licence Key and a quick start guide. This pack is suitable for use with the all Tinytag Ultra, Plus and View data loggers. The Tinytag Explorer software comes with a site licence allowing installation on multiple PCs at the same location, additional software should be purchased when used at a different site location.

£65.00
Add to Basket More Info
ACS-6000

ACS-6000

Trigger Start Magnet for various Tinytag data loggers. The magnet is ideal for delayed triggering of Tinytag loggers that have been set up for a trigger start. The magnet is merely passed over the correct location on the logger and the lights will start to flash showing that logging procedure has been started. The position of the unit's trigger start switch is indicated by the • • • label on the back of the logger.

£10.00
Add to Basket More Info
