OmniPlus Flow Sensors

The Senseca OmniPlus transmitters, formerly Honsberg, offer versatile flow measurement solutions for applications ranging from small machines to large automation systems. Compatible with a wide range of flow sensors, including impeller (RRI/RRH), turbine (RT), screw (VHSX), piston (MR/HD/HR) and gear wheel (VHZ) types, the robust OmniPlus electronics provide reliable flow monitoring regardless of the measuring principle. Configuration is simple using the multi-function programming ring or IO-Link interface.

OmniPlus Product Portfolio

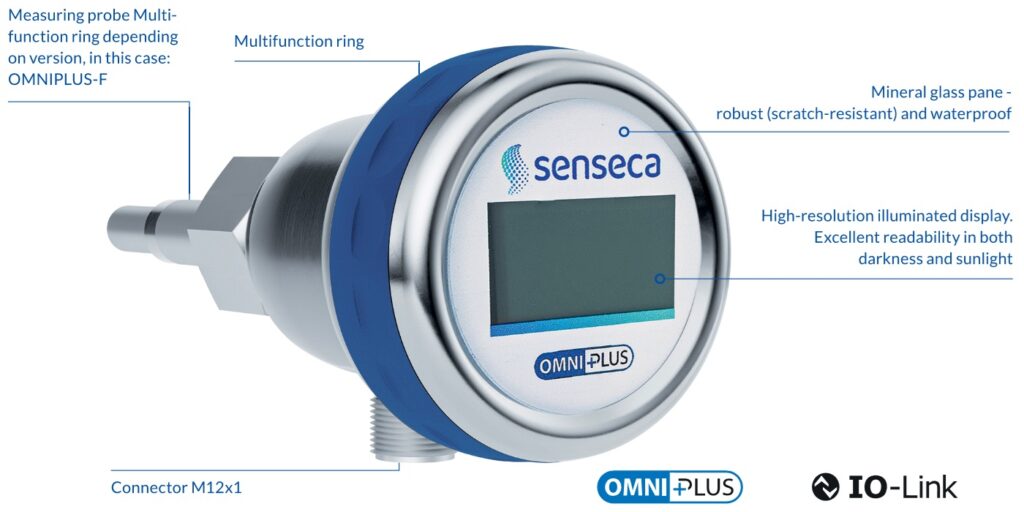

OmniPlus-F Flow Transmitter

The OmniPlus-F Flow Transmitter/Switch is a calorimetric flow sensor designed for measuring flow rates in aqueous fluids. It can provide 4(0)-20mA or 0(2)-10V output, along with a digital display for local indication of flow measurement. The device incorporates two programmable push-pull switches and features a microcontroller for temperature compensation, signal..
View Product

OmniPlus-MR1 Flow Transmitter

The OmniPlus-MR1 Flow Transmitter/Switch is a Flow sensor optimised for measuring flow rate of water and low viscous fluids in small diameter pipes. The meters cover pipe diameters from ¼" up to 1" pipe diameters and flow ranges from 0.4-4 l/min up to 6-60 l/min. Flows are measured using a..
View Product

OmniPlus-HD1 Flow Transmitter

The OmniPlus-HD1 Flow Transmitter/Switch is a Flow sensor optimised for measuring flow rate of water and low viscous fluids in small diameter pipes. The meters cover pipe diameters from ¼" up to 1" pipe diameters and flow ranges from 0.1-1 l/min up to 20-80 l/min. Flows are measured using a..
View Product

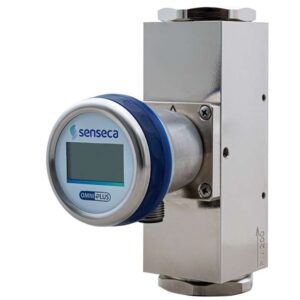

OmniPlus-HD2 Flow Transmitter

The OmniPlus-HD2 Flow Transmitter/Switch is a Flow sensor optimised for measuring flow rate of viscous fluids in small diameter pipes. The meters cover pipe diameters from ¼" up to 1" pipe diameters and flow ranges from 0.5-8 l/min up to 12-60 l/min. Flows are measured using a spring-supported piston with..
View Product

OmniPlus-HR1MV Flow Transmitter

The OmniPlus-HR1MV Flow Transmitter/Switch is a Flow sensor optimised for measuring flow rate of viscous fluids using a spring-supported piston with hall effect sensor. The meters cover pipe diameters from 1¼" up to 2" pipe diameters and flow ranges from 2-12 l/min up to 100-200 l/min. It provides a 4(0)-20mA..
View Product

OmniPlus-HR2 Flow Transmitter

The OmniPlus-HR2 Flow Transmitter/Switch is a Flow sensor optimised for measuring flow rate of water using a spring-supported piston with hall effect sensor. The meters cover pipe diameters from 1¼" up to 2" pipe diameters and flow ranges from 5-60 l/min up to 25-300 l/min. It provides a 4(0)-20mA or..
View Product

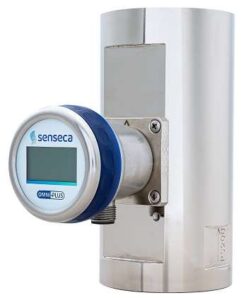

OmniPlus-HR2V Flow Transmitter

The OmniPlus-HR2V Flow Transmitter/Switch is a Flow sensor optimised for measuring flow rates of viscous fluid media (Viscosity Range 30 to 330mm²/s) such as oil using a spring-supported piston with hall effect sensor. The meters cover pipe diameters from 1¼" up to 2" pipe diameters and flow ranges from 10-80..
View Product

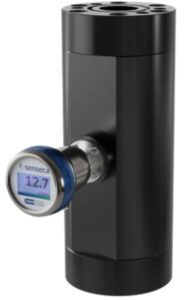

OmniPlus-VHSX Flow Transmitter Screw Volumeter

The OmniPlus-VHSX Flow Transmitter/Switch is a Volumetric flow sensor designed for measuring flow rates in viscous, lubricant media. The meters cover pipe diameters from 1" up to 2" pipe diameters and flow ranges from 1.4-140 l/min up to 15-1,500 l/min. It provides a 4(0)-20mA or 0(2)-10V output, along with a..
View Product

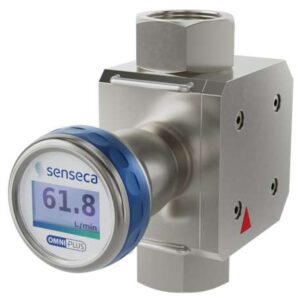

OmniPlus-RRH Flow Transmitter

The OmniPlus-RRH Flow Transmitter/Switch is a Flow sensor optimised for measuring flow rate of water and low viscous fluids in small diameter pipes. The meters cover pipe diameters of 3/8" and 1" pipe diameters and flow ranges from 0.1-1.5 l/min up to 4-100 l/min. Flows are measured using an impeller..
View Product

The Senseca OmniPlus transmitters, formerly Honsberg, offer versatile flow measurement solutions for applications ranging from small machines to large automation systems. Compatible with a wide range of flow sensors, including impeller (RRI/RRH), turbine (RT), screw (VHSX), piston (MR/HD/HR) and gear wheel (VHZ) types, the robust OmniPlus electronics provide reliable flow monitoring regardless of the measuring principle. Configuration is simple using the multi-function programming ring or IO-Link interface.

OmniPlus Product Portfolio

OmniPlus-F Flow Transmitter

The OmniPlus-F Flow Transmitter/Switch is a calorimetric flow sensor designed for measuring flow rates in aqueous fluids. It can provide 4(0)-20mA or 0(2)-10V output, along with a digital display for local indication of flow measurement. The device incorporates two programmable push-pull switches and features a microcontroller for temperature compensation, signal..
View Product

OmniPlus-MR1 Flow Transmitter

The OmniPlus-MR1 Flow Transmitter/Switch is a Flow sensor optimised for measuring flow rate of water and low viscous fluids in small diameter pipes. The meters cover pipe diameters from ¼" up to 1" pipe diameters and flow ranges from 0.4-4 l/min up to 6-60 l/min. Flows are measured using a..
View Product

OmniPlus-HD1 Flow Transmitter

The OmniPlus-HD1 Flow Transmitter/Switch is a Flow sensor optimised for measuring flow rate of water and low viscous fluids in small diameter pipes. The meters cover pipe diameters from ¼" up to 1" pipe diameters and flow ranges from 0.1-1 l/min up to 20-80 l/min. Flows are measured using a..
View Product

OmniPlus-HD2 Flow Transmitter

The OmniPlus-HD2 Flow Transmitter/Switch is a Flow sensor optimised for measuring flow rate of viscous fluids in small diameter pipes. The meters cover pipe diameters from ¼" up to 1" pipe diameters and flow ranges from 0.5-8 l/min up to 12-60 l/min. Flows are measured using a spring-supported piston with..
View Product

OmniPlus-HR1MV Flow Transmitter

The OmniPlus-HR1MV Flow Transmitter/Switch is a Flow sensor optimised for measuring flow rate of viscous fluids using a spring-supported piston with hall effect sensor. The meters cover pipe diameters from 1¼" up to 2" pipe diameters and flow ranges from 2-12 l/min up to 100-200 l/min. It provides a 4(0)-20mA..
View Product

OmniPlus-HR2 Flow Transmitter

The OmniPlus-HR2 Flow Transmitter/Switch is a Flow sensor optimised for measuring flow rate of water using a spring-supported piston with hall effect sensor. The meters cover pipe diameters from 1¼" up to 2" pipe diameters and flow ranges from 5-60 l/min up to 25-300 l/min. It provides a 4(0)-20mA or..
View Product

OmniPlus-HR2V Flow Transmitter

The OmniPlus-HR2V Flow Transmitter/Switch is a Flow sensor optimised for measuring flow rates of viscous fluid media (Viscosity Range 30 to 330mm²/s) such as oil using a spring-supported piston with hall effect sensor. The meters cover pipe diameters from 1¼" up to 2" pipe diameters and flow ranges from 10-80..
View Product

OmniPlus-VHSX Flow Transmitter Screw Volumeter

The OmniPlus-VHSX Flow Transmitter/Switch is a Volumetric flow sensor designed for measuring flow rates in viscous, lubricant media. The meters cover pipe diameters from 1" up to 2" pipe diameters and flow ranges from 1.4-140 l/min up to 15-1,500 l/min. It provides a 4(0)-20mA or 0(2)-10V output, along with a..
View Product

OmniPlus-RRH Flow Transmitter

The OmniPlus-RRH Flow Transmitter/Switch is a Flow sensor optimised for measuring flow rate of water and low viscous fluids in small diameter pipes. The meters cover pipe diameters of 3/8" and 1" pipe diameters and flow ranges from 0.1-1.5 l/min up to 4-100 l/min. Flows are measured using an impeller..
View Product
