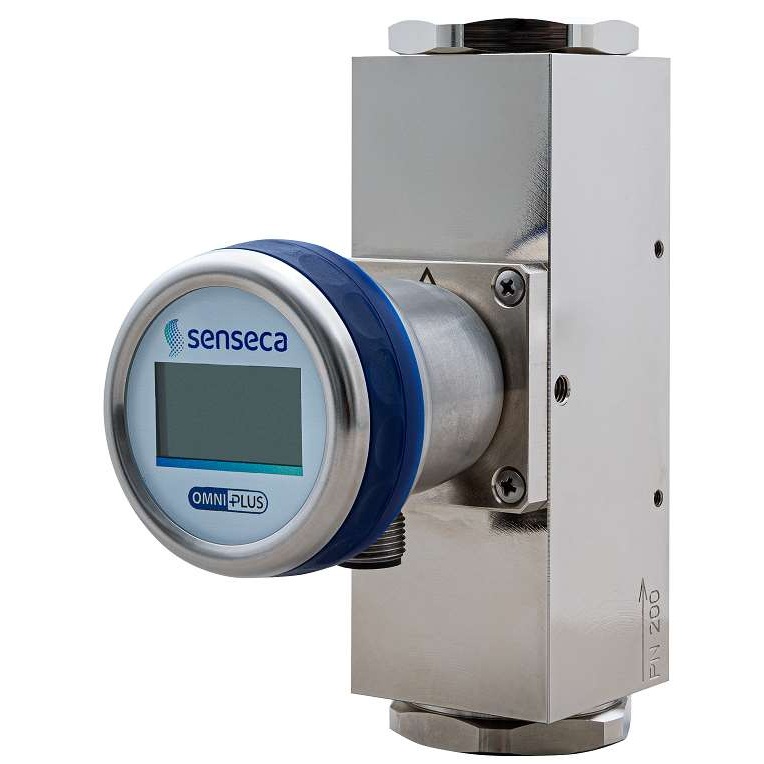

The OmniPlus-HD1 flow transmitter is designed to monitor viscous media (viscosity stablised), utilising a spring-supported piston and magnetic triggering a hall effect sensor. It features an easy-to-read backlit graphical LCD display, analogue output (4-20mA or 0-10V), and two programmable switches, operable through a programming ring for settings adjustments and protection against unintended changes. The transmitter’s construction includes a stainless steel case with a hardened mineral glass pane and an Aluminium housing, suitable for industrial use and capable of operation and measurement in both forward and reverse flow directions
Features
- Optimised for use with viscous fluids
- Analogue output 4-20mA or 0-10V
- Two programmable switches
- Graphical LCD display, backlit, can be read in sunlight and in the dark
- Selectable units in the display
- Programmable parameters via rotatable, multi-function ring
- Electronics housing with non-scratch, chemically resistant glass
- Rotatable electronic housing for best reading position
- Designed for industrial use
Applications
- Flow monitoring in cooling and lubricoolant applications
Specifications
HD1 Flow Meter
| Nominal Width | Process Connection | Metering range | Connection material | Flow Meter Part Code |
|---|---|---|---|---|
| 008 | 1/4″ BSP | 0.1-1l/min | M – Brass | OMNIPLUS-HD1-008GM001 |
| 008 | 1/4″ BSP | 0.5-5l/min | OMNIPLUS-HD1-008GM005 | |
| 008 | 1/4″ BSP | 1.0-10l/min | OMNIPLUS-HD1-008GM010 | |
| 008 | 1/4″ BSP | 2.0-20l/min | OMNIPLUS-HD1-008GM020 | |
| 008 | 1/4″ BSP | 3.0-30l/min | OMNIPLUS-HD1-008GM030 | |
| 008 | 1/4″ BSP | 4.0-40l/min | OMNIPLUS-HD1-008GM040 | |
| 008 | 1/4″ BSP | 6.0-60l/min | OMNIPLUS-HD1-008GM060 | |
| 008 | 1/4″ BSP | 20.0-80l/min | OMNIPLUS-HD1-008GM080 | |
| 008 | 1/4″ BSP | 0.1-1l/min | K – Stainless Steel | OMNIPLUS-HD1-008GK001 |
| 008 | 1/4″ BSP | 0.5-5l/min | OMNIPLUS-HD1-008GK005 | |
| 008 | 1/4″ BSP | 1.0-10l/min | OMNIPLUS-HD1-008GK010 | |
| 008 | 1/4″ BSP | 2.0-20l/min | OMNIPLUS-HD1-008GK020 | |
| 008 | 1/4″ BSP | 3.0-30l/min | OMNIPLUS-HD1-008GK030 | |
| 008 | 1/4″ BSP | 4.0-40l/min | OMNIPLUS-HD1-008GK040 | |
| 008 | 1/4″ BSP | 6.0-60l/min | OMNIPLUS-HD1-008GK060 | |
| 008 | 1/4″ BSP | 20.0-80l/min | OMNIPLUS-HD1-008GK080 | |
| 010 | 3/8″ BSP | 0.1-1l/min | M – Brass | OMNIPLUS-HD1-010GM001 |
| 010 | 3/8″ BSP | 0.5-5l/min | OMNIPLUS-HD1-010GM005 | |
| 010 | 3/8″ BSP | 1.0-10l/min | OMNIPLUS-HD1-010GM010 | |
| 010 | 3/8″ BSP | 2.0-20l/min | OMNIPLUS-HD1-010GM020 | |
| 010 | 3/8″ BSP | 3.0-30l/min | OMNIPLUS-HD1-010GM030 | |
| 010 | 3/8″ BSP | 4.0-40l/min | OMNIPLUS-HD1-010GM040 | |
| 010 | 3/8″ BSP | 6.0-60l/min | OMNIPLUS-HD1-010GM060 | |
| 010 | 3/8″ BSP | 20.0-80l/min | OMNIPLUS-HD1-010GM080 | |
| 010 | 3/8″ BSP | 0.1-1l/min | K – Stainless Steel | OMNIPLUS-HD1-010GK001 |
| 010 | 3/8″ BSP | 0.5-5l/min | OMNIPLUS-HD1-010GK005 | |
| 010 | 3/8″ BSP | 1.0-10l/min | OMNIPLUS-HD1-010GK010 | |
| 010 | 3/8″ BSP | 2.0-20l/min | OMNIPLUS-HD1-010GK020 | |
| 010 | 3/8″ BSP | 3.0-30l/min | OMNIPLUS-HD1-010GK030 | |
| 010 | 3/8″ BSP | 4.0-40l/min | OMNIPLUS-HD1-010GK040 | |
| 010 | 3/8″ BSP | 6.0-60l/min | OMNIPLUS-HD1-010GK060 | |
| 010 | 3/8″ BSP | 20.0-80l/min | OMNIPLUS-HD1-010GK080 | |
| 015 | 1/2″ BSP | 0.1-1l/min | M – Brass | OMNIPLUS-HD1-015GM001 |
| 015 | 1/2″ BSP | 0.5-5l/min | OMNIPLUS-HD1-015GM005 | |
| 015 | 1/2″ BSP | 1.0-10l/min | OMNIPLUS-HD1-015GM010 | |
| 015 | 1/2″ BSP | 2.0-20l/min | OMNIPLUS-HD1-015GM020 | |
| 015 | 1/2″ BSP | 3.0-30l/min | OMNIPLUS-HD1-015GM030 | |
| 015 | 1/2″ BSP | 4.0-40l/min | OMNIPLUS-HD1-015GM040 | |
| 015 | 1/2″ BSP | 6.0-60l/min | OMNIPLUS-HD1-015GM060 | |
| 015 | 1/2″ BSP | 20.0-80l/min | OMNIPLUS-HD1-015GM080 | |
| 015 | 1/2″ BSP | 0.1-1l/min | K – Stainless Steel | OMNIPLUS-HD1-015GK001 |
| 015 | 1/2″ BSP | 0.5-5l/min | OMNIPLUS-HD1-015GK005 | |
| 015 | 1/2″ BSP | 1.0-10l/min | OMNIPLUS-HD1-015GK010 | |
| 015 | 1/2″ BSP | 2.0-20l/min | OMNIPLUS-HD1-015GK020 | |
| 015 | 1/2″ BSP | 3.0-30l/min | OMNIPLUS-HD1-015GK030 | |
| 015 | 1/2″ BSP | 4.0-40l/min | OMNIPLUS-HD1-015GK040 | |
| 015 | 1/2″ BSP | 6.0-60l/min | OMNIPLUS-HD1-015GK060 | |
| 015 | 1/2″ BSP | 20.0-80l/min | OMNIPLUS-HD1-015GK080 | |
| 020 | 3/4″ BSP | 0.1-1l/min | M – Brass | OMNIPLUS-HD1-020GM001 |
| 020 | 3/4″ BSP | 0.5-5l/min | OMNIPLUS-HD1-020GM005 | |
| 020 | 3/4″ BSP | 1.0-10l/min | OMNIPLUS-HD1-020GM010 | |
| 020 | 3/4″ BSP | 2.0-20l/min | OMNIPLUS-HD1-020GM020 | |
| 020 | 3/4″ BSP | 3.0-30l/min | OMNIPLUS-HD1-020GM030 | |
| 020 | 3/4″ BSP | 4.0-40l/min | OMNIPLUS-HD1-020GM040 | |
| 020 | 3/4″ BSP | 6.0-60l/min | OMNIPLUS-HD1-020GM060 | |
| 020 | 3/4″ BSP | 20.0-80l/min | OMNIPLUS-HD1-020GM080 | |
| 020 | 3/4″ BSP | 0.1-1l/min | K – Stainless Steel | OMNIPLUS-HD1-020GK001 |
| 020 | 3/4″ BSP | 0.5-5l/min | OMNIPLUS-HD1-020GK005 | |
| 020 | 3/4″ BSP | 1.0-10l/min | OMNIPLUS-HD1-020GK010 | |
| 020 | 3/4″ BSP | 2.0-20l/min | OMNIPLUS-HD1-020GK020 | |
| 020 | 3/4″ BSP | 3.0-30l/min | OMNIPLUS-HD1-020GK030 | |
| 020 | 3/4″ BSP | 4.0-40l/min | OMNIPLUS-HD1-020GK040 | |
| 020 | 3/4″ BSP | 6.0-60l/min | OMNIPLUS-HD1-020GK060 | |
| 020 | 3/4″ BSP | 20.0-80l/min | OMNIPLUS-HD1-020GK080 | |
| 025 | 1″ BSP | 0.1-1l/min | M – Brass | OMNIPLUS-HD1-025GM001 |
| 025 | 1″ BSP | 0.5-5l/min | OMNIPLUS-HD1-025GM005 | |
| 025 | 1″ BSP | 1.0-10l/min | OMNIPLUS-HD1-025GM010 | |
| 025 | 1″ BSP | 2.0-20l/min | OMNIPLUS-HD1-025GM020 | |
| 025 | 1″ BSP | 3.0-30l/min | OMNIPLUS-HD1-025GM030 | |
| 025 | 1″ BSP | 4.0-40l/min | OMNIPLUS-HD1-025GM040 | |
| 025 | 1″ BSP | 6.0-60l/min | OMNIPLUS-HD1-025GM060 | |
| 025 | 1″ BSP | 20.0-80l/min | OMNIPLUS-HD1-025GM080 | |
| 025 | 1″ BSP | 0.1-1l/min | K – Stainless Steel | OMNIPLUS-HD1-025GK001 |
| 025 | 1″ BSP | 0.5-5l/min | OMNIPLUS-HD1-025GK005 | |
| 025 | 1″ BSP | 1.0-10l/min | OMNIPLUS-HD1-025GK010 | |
| 025 | 1″ BSP | 2.0-20l/min | OMNIPLUS-HD1-025GK020 | |
| 025 | 1″ BSP | 3.0-30l/min | OMNIPLUS-HD1-025GK030 | |
| 025 | 1″ BSP | 4.0-40l/min | OMNIPLUS-HD1-025GK040 | |
| 025 | 1″ BSP | 6.0-60l/min | OMNIPLUS-HD1-025GK060 | |
| 025 | 1″ BSP | 20.0-80l/min | OMNIPLUS-HD1-025GK080 |
OMNI-HD1 Options
Option 1: H – Extended Temperature Range 150°C (With Spacers)
Option 2: T – Electronics fully potted, for increased climatic stress (high humidity and/or strongly changing temperatures)
One product is listed below to provide an indicative price, but a quotation can be provided for any options available from the options in the ordering guide above. Contact info@omni.uk.com to obtain a quotation.
