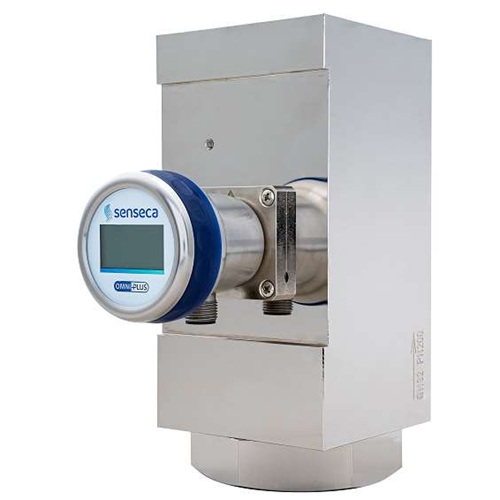

OmniPlus-HR1MV Flow Transmitter

Description

The OmniPlus-HR1MV flow transmitter is designed to monitor oils and other viscous media, utilising a spring-supported piston and magnetic triggering a hall effect sensor. It features an easy-to-read backlit graphical LCD display, analogue output (4-20mA or 0-10V), and two programmable switches, operable through a programming ring for settings adjustments and protection against unintended changes. The transmitter’s construction includes a stainless steel case with a hardened mineral glass pane and an Aluminium housing, suitable for industrial use and capable of operation and measurement in both forward and reverse flow directions

Features

• Suitable for use with Oil and other viscous media (viscosity-stabilised)
• Analogue output 4-20mA or 0-10V
• Two programmable switching outputs
• Graphical LCD display, backlit, can be read in sunlight and in the dark
• Selectable units in the display
• Programmable parameters via rotatable, multi-function ring
• Electronics housing with non-scratch, chemically resistant glass
• Rotatable electronic housing for best reading position
• Designed for industrial use

Applications

• Flow monitoring in hydraulic and lubrication applications

Specifications

HR1MV Flow Meter

OMNI-HR1MV Options

Option 1: H – Extended Temperature Range 150°C (With Spacers)

Option 2: T – Electronics fully potted, for increased climatic stress (high humidity and/or strongly changing temperatures)

One product is listed below to provide an indicative price, but a quotation can be provided for any options available from the options in the ordering guide above. Contact info@omni.uk.com to obtain a quotation.
