Description

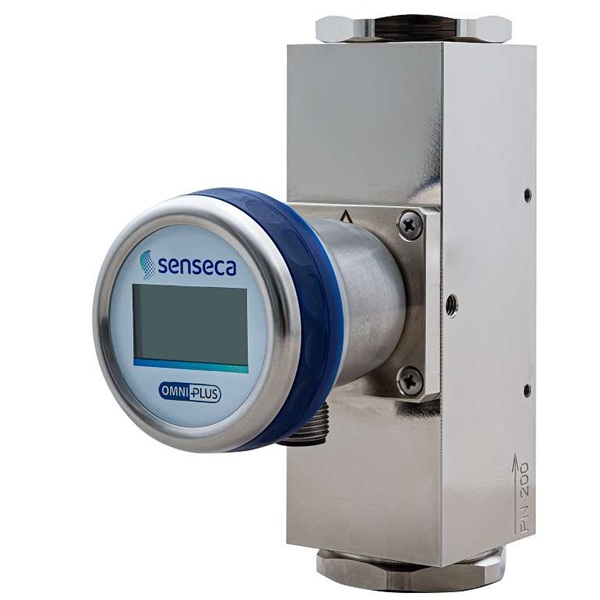

The OmniPlus-HD2 flow transmitter is designed to monitor viscous media (viscosity stablised), utilising a spring-supported piston and magnetic triggering a hall effect sensor. It features an easy-to-read backlit graphical LCD display, analogue output (4-20mA or 0-10V), and two programmable switches, operable through a programming ring for settings adjustments and protection against unintended changes. The transmitter’s construction includes a stainless steel case with a hardened mineral glass pane and an Aluminium housing, suitable for industrial use and capable of operation and measurement in both forward and reverse flow directions
Features
- Optimised for use with viscous fluids
- Analogue output 4-20mA or 0-10V
- Two programmable switches
- Graphical LCD display, backlit, can be read in sunlight and in the dark
- Selectable units in the display
- Programmable parameters via rotatable, removable ring (programming protection)
- Electronics housing with non-scratch, chemically resistant glass
- Rotatable electronic housing for best reading position
- Designed for industrial use
Specifications
HD2 Flow Meter
| Nominal Width | Process Connection | Metering range | Connection material | Flow Meter Part Code |
|---|---|---|---|---|
| 008 | 1/4″ BSP | 0.5-8l/min | M – Brass | OMNIPLUS-HD2-008GM008 |
| 008 | 3/8″ BSP | 1.5-15l/min | OMNIPLUS-HD2-008GM015 | |
| 008 | 1/2″ BSP | 2.5-25l/min | OMNIPLUS-HD2-008GM025 | |
| 008 | 3/4″ BSP | 6.0-40l/min | OMNIPLUS-HD2-008GM040 | |
| 008 | 1″ BSP | 12.0-60l/min | OMNIPLUS-HD2-008GM060 | |
| 008 | 1/4″ BSP | 0.5-8l/min | K – Stainless Steel | OMNIPLUS-HD2-008GK008 |
| 008 | 3/8″ BSP | 1.5-15l/min | OMNIPLUS-HD2-008GK015 | |
| 008 | 1/2″ BSP | 2.5-25l/min | OMNIPLUS-HD2-008GK025 | |
| 008 | 3/4″ BSP | 6.0-40l/min | OMNIPLUS-HD2-008GK040 | |
| 008 | 1″ BSP | 12.0-60l/min | OMNIPLUS-HD2-008GK060 | |
| 010 | 1/4″ BSP | 0.5-8l/min | M – Brass | OMNIPLUS-HD2-010GM008 |
| 010 | 3/8″ BSP | 1.5-15l/min | OMNIPLUS-HD2-010GM015 | |
| 010 | 1/2″ BSP | 2.5-25l/min | OMNIPLUS-HD2-010GM025 | |
| 010 | 3/4″ BSP | 6.0-40l/min | OMNIPLUS-HD2-010GM040 | |
| 010 | 1″ BSP | 12.0-60l/min | OMNIPLUS-HD2-010GM060 | |
| 010 | 1/4″ BSP | 0.5-8l/min | K – Stainless Steel | OMNIPLUS-HD2-010GK008 |
| 010 | 3/8″ BSP | 1.5-15l/min | OMNIPLUS-HD2-010GK015 | |
| 010 | 1/2″ BSP | 2.5-25l/min | OMNIPLUS-HD2-010GK025 | |
| 010 | 3/4″ BSP | 6.0-40l/min | OMNIPLUS-HD2-010GK040 | |
| 010 | 1″ BSP | 12.0-60l/min | OMNIPLUS-HD2-010GK060 | |
| 015 | 1/4″ BSP | 0.5-8l/min | M – Brass | OMNIPLUS-HD2-015GM008 |
| 015 | 3/8″ BSP | 1.5-15l/min | OMNIPLUS-HD2-015GM015 | |
| 015 | 1/2″ BSP | 2.5-25l/min | OMNIPLUS-HD2-015GM025 | |
| 015 | 3/4″ BSP | 6.0-40l/min | OMNIPLUS-HD2-015GM040 | |
| 015 | 1″ BSP | 12.0-60l/min | OMNIPLUS-HD2-015GM060 | |
| 015 | 1/4″ BSP | 0.5-8l/min | K – Stainless Steel | OMNIPLUS-HD2-015GK008 |
| 015 | 3/8″ BSP | 1.5-15l/min | OMNIPLUS-HD2-015GK015 | |
| 015 | 1/2″ BSP | 2.5-25l/min | OMNIPLUS-HD2-015GK025 | |
| 015 | 3/4″ BSP | 6.0-40l/min | OMNIPLUS-HD2-015GK040 | |
| 015 | 1″ BSP | 12.0-60l/min | OMNIPLUS-HD2-015GK060 | |
| 020 | 1/4″ BSP | 0.5-8l/min | M – Brass | OMNIPLUS-HD2-020GM008 |
| 020 | 3/8″ BSP | 1.5-15l/min | OMNIPLUS-HD2-020GM015 | |
| 020 | 1/2″ BSP | 2.5-25l/min | OMNIPLUS-HD2-020GM025 | |
| 020 | 3/4″ BSP | 6.0-40l/min | OMNIPLUS-HD2-020GM040 | |
| 020 | 1″ BSP | 12.0-60l/min | OMNIPLUS-HD2-020GM060 | |
| 020 | 1/4″ BSP | 0.5-8l/min | K – Stainless Steel | OMNIPLUS-HD2-020GK008 |
| 020 | 3/8″ BSP | 1.5-15l/min | OMNIPLUS-HD2-020GK015 | |
| 020 | 1/2″ BSP | 2.5-25l/min | OMNIPLUS-HD2-020GK025 | |
| 020 | 3/4″ BSP | 6.0-40l/min | OMNIPLUS-HD2-020GK040 | |
| 020 | 1″ BSP | 12.0-60l/min | OMNIPLUS-HD2-020GK060 | |
| 025 | 1/4″ BSP | 0.5-8l/min | M – Brass | OMNIPLUS-HD2-025GM008 |
| 025 | 3/8″ BSP | 1.5-15l/min | OMNIPLUS-HD2-025GM015 | |
| 025 | 1/2″ BSP | 2.5-25l/min | OMNIPLUS-HD2-025GM025 | |
| 025 | 3/4″ BSP | 6.0-40l/min | OMNIPLUS-HD2-025GM040 | |
| 025 | 1″ BSP | 12.0-60l/min | OMNIPLUS-HD2-025GM060 | |
| 025 | 1/4″ BSP | 0.5-8l/min | K – Stainless Steel | OMNIPLUS-HD2-025GK008 |
| 025 | 3/8″ BSP | 1.5-15l/min | OMNIPLUS-HD2-025GK015 | |
| 025 | 1/2″ BSP | 2.5-25l/min | OMNIPLUS-HD2-025GK025 | |
| 025 | 3/4″ BSP | 6.0-40l/min | OMNIPLUS-HD2-025GK040 | |
| 025 | 1″ BSP | 12.0-60l/min | OMNIPLUS-HD2-025GK060 |
OMNI-HD2 Options
Option 1: H – Extended Temperature Range 150°C (With Spacers)
Option 2: T – Electronics fully potted, for increased climatic stress (high humidity and/or strongly changing temperatures)
One product is listed below to provide an indicative price, but a quotation can be provided for any options available from the options in the ordering guide above. Contact info@omni.uk.com to obtain a quotation.
