Description

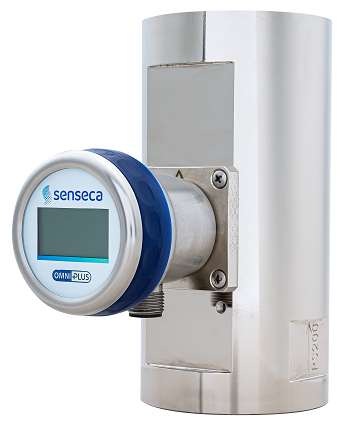

The OmniPlus-HR2 flow transmitter is designed to monitor water, utilising a spring-supported piston and magnetic triggering a hall effect sensor. It features an easy-to-read backlit graphical LCD display, analogue output (4-20mA or 0-10V), and two programmable switches, operable through a programming ring for settings adjustments and protection against unintended changes. The transmitter’s construction includes a stainless steel case with a hardened mineral glass pane and an Aluminium housing, suitable for industrial use and capable of operation and measurement in both forward and reverse flow directions
Features
- Optimised for use with water
- Analogue output 4-20mA or 0-10V
- Two programmable switches
- Graphical LCD display, backlit, can be read in sunlight and in the dark
- Selectable units in the display
- Programmable parameters via rotatable, removable ring (programming protection)
- Electronics housing with non-scratch, chemically resistant glass
- Rotatable electronic housing for best reading position
- Designed for industrial use
Specifications
HR2 Flow Meter
| Nominal Width | Process Connection | Metering range | Connection material | Flow Meter Part Code |
|---|---|---|---|---|
| 032 | 1¼” BSP | 5-60l/min | M – Brass | OMNIPLUS-HR2-032GM060 |
| 032 | 1¼” BSP | 10-100l/min | OMNIPLUS-HR2-032GM100 | |
| 032 | 1¼” BSP | 15-200l/min | OMNIPLUS-HR2-032GM200 | |
| 032 | 1¼” BSP | 25-300l/min | OMNIPLUS-HR2-032GM300 | |
| 032 | 1¼” BSP | 5-60l/min | K – Stainless Steel | OMNIPLUS-HR2-032GK060 |
| 032 | 1¼” BSP | 10-100l/min | OMNIPLUS-HR2-032GK100 | |
| 032 | 1¼” BSP | 15-200l/min | OMNIPLUS-HR2-032GK200 | |
| 032 | 1¼” BSP | 25-300l/min | OMNIPLUS-HR2-032GK300 | |
| 040 | 1½” BSP | 5-60l/min | M – Brass | OMNIPLUS-HR2-040GM060 |
| 040 | 1½” BSP | 10-100l/min | OMNIPLUS-HR2-040GM100 | |
| 040 | 1½” BSP | 15-200l/min | OMNIPLUS-HR2-040GM200 | |
| 040 | 1½” BSP | 25-300l/min | OMNIPLUS-HR2-040GM300 | |
| 040 | 1½” BSP | 5-60l/min | K – Stainless Steel | OMNIPLUS-HR2-040GK060 |
| 040 | 1½” BSP | 10-100l/min | OMNIPLUS-HR2-040GK100 | |
| 040 | 1½” BSP | 15-200l/min | OMNIPLUS-HR2-040GK200 | |
| 040 | 1½” BSP | 25-300l/min | OMNIPLUS-HR2-040GK300 | |
| 050 | 2″ BSP | 5-60l/min | M – Brass | OMNIPLUS-HR2-050GM060 |
| 050 | 2″ BSP | 10-100l/min | OMNIPLUS-HR2-050GM100 | |
| 050 | 2″ BSP | 15-200l/min | OMNIPLUS-HR2-050GM200 | |
| 050 | 2″ BSP | 25-300l/min | OMNIPLUS-HR2-050GM300 | |
| 050 | 2″ BSP | 5-60l/min | K – Stainless Steel | OMNIPLUS-HR2-050GK060 |
| 050 | 2″ BSP | 10-100l/min | OMNIPLUS-HR2-050GK100 | |
| 050 | 2″ BSP | 15-200l/min | OMNIPLUS-HR2-050GK200 | |
| 050 | 2″ BSP | 25-300l/min | OMNIPLUS-HR2-050GK300 |
OMNI-HR2 Options
Option 1: H – Extended Temperature Range 120°C (With Spacers)
Option 2: T – Electronics fully potted, for increased climatic stress (high humidity and/or strongly changing temperatures)
One product is listed below to provide an indicative price, but a quotation can be provided for any options available from the options in the ordering guide above. Contact info@omni.uk.com to obtain a quotation.
