Omni-HR2V Flow Transmitter/Switch

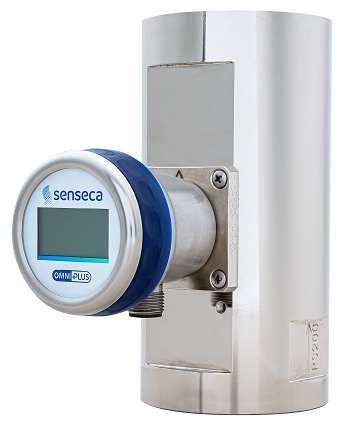

Description

The OmniPlus-HR2V flow transmitter is designed to monitor viscous fluid media (Viscosity Range 30 to 300mm²) like oil, utilising a spring-supported piston and magnetic triggering a hall effect sensor. It features an easy-to-read backlit graphical LCD display, analogue output (4-20mA or 0-10V), and two programmable switches, operable through a programming ring for settings adjustments and protection against unintended changes. The transmitter’s construction includes a stainless steel case with a hardened mineral glass pane and an Aluminium housing, suitable for industrial use and capable of operation and measurement in both forward and reverse flow directions

Features

  • Optimised for use with oil
  • Analogue output 4-20mA or 0-10V
  • Two programmable switches
  • Graphical LCD display, backlit, can be read in sunlight and in the dark
  • Selectable units in the display
  • Programmable parameters via rotatable, removable ring (programming protection)
  • Electronics housing with non-scratch, chemically resistant glass
  • Rotatable electronic housing for best reading position
  • Designed for industrial use



Specifications

HR2V Flow Meter

Nominal Width Process Connection Metering range Connection material Flow Meter Part Code
032 1¼” BSP 10-80l/min M – Brass OMNIPLUS-HR2V-032GM080
032 1¼” BSP 20-120l/min OMNIPLUS-HR2V-032GM120
032 1¼” BSP 30-140l/min OMNIPLUS-HR2V-032GM140
032 1¼” BSP 50-160l/min OMNIPLUS-HR2V-032GM160
032 1¼” BSP 10-80l/min K – Stainless Steel OMNIPLUS-HR2V-032GK080
032 1¼” BSP 20-120l/min OMNIPLUS-HR2V-032GK120
032 1¼” BSP 30-140l/min OMNIPLUS-HR2V-032GK140
032 1¼” BSP 50-160l/min OMNIPLUS-HR2V-032GK160
040 1½” BSP 10-80l/min M – Brass OMNIPLUS-HR2V-040GM080
040 1½” BSP 20-120l/min OMNIPLUS-HR2V-040GM120
040 1½” BSP 30-140l/min OMNIPLUS-HR2V-040GM140
040 1½” BSP 50-160l/min OMNIPLUS-HR2V-040GM160
040 1½” BSP 10-80l/min K – Stainless Steel OMNIPLUS-HR2V-040GK080
040 1½” BSP 20-120l/min OMNIPLUS-HR2V-040GK120
040 1½” BSP 30-140l/min OMNIPLUS-HR2V-040GK140
040 1½” BSP 50-160l/min OMNIPLUS-HR2V-040GK160
050 2″ BSP 10-80l/min M – Brass OMNIPLUS-HR2V-050GM080
050 2″ BSP 20-120l/min OMNIPLUS-HR2V-050GM120
050 2″ BSP 30-140l/min OMNIPLUS-HR2V-050GM140
050 2″ BSP 50-160l/min OMNIPLUS-HR2V-050GM160
050 2″ BSP 10-80l/min K – Stainless Steel OMNIPLUS-HR2V-050GK080
050 2″ BSP 20-120l/min OMNIPLUS-HR2V-050GK120
050 2″ BSP 30-140l/min OMNIPLUS-HR2V-050GK140
050 2″ BSP 50-160l/min OMNIPLUS-HR2V-050GK160



OMNI-HR2V Options

Option 1: H – Extended Temperature Range 120°C (With Spacers)

Option 2: T – Electronics fully potted, for increased climatic stress (high humidity and/or strongly changing temperatures)

One product is listed below to provide an indicative price, but a quotation can be provided for any options available from the options in the ordering guide above. Contact info@omni.uk.com to obtain a quotation.
