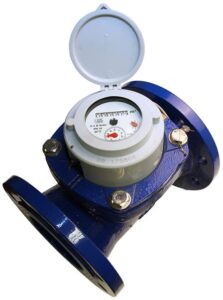

WPI-SDC-250
WPI-SDC Irrigation Water Flowmeter. Pipe diameter DN250 with standard PN16 flanges. Flow range Q1 50m³/h, Q2 80m³/h, Q3 1,000m³/h and Q4 1,250m³/h. IP68 Epoxy Coated Iron body with replaceable copper can mechanism. Additional pulse output options from 1 to 10 m³/pulse are available at the time of order. (Please order..
Keller PD10LHP OEM Differential High Pressure Transducer
The Keller PD10LHP utilises a dual-cell construction with a higher pressure rating then the PD10L, allowing up to 600 Bar Line Pressures. The unique architecture provides superior accuracy over even low differential pressures at high line pressures. It is critical that line pressure is applied evenly to both sides of..
4184 Universal Uni/Bi-Polar Signal Transmitter
The 4184 is a programmable universal transmitter suitable for converting uni/bi-polar DC voltage or current inputs to uni-bi-polar DC outputs. The unit is capable of measuring DC voltages from -300V to +300V and DC currents from -100mA to +100mA. Units are available with the 4510 programming display or the 4511..
8801840050
WL420 Submersible Hydrostatic Level Transmitter. Depth Range 40mH2O. 2-Wire Loop Powered 4-20mA Output with a 12-36vDC Power Supply. 50m Polyurethane (PUR) Cable with Ventilation Tube. Over-Pressure 200% FS, Burst Pressure 500% FS. Stainless Steel Sensor with 105mm Body Length and 26.5mm Diameter...
CA-17/28
Absorbed Glass Matt (AGM) Battery. Storage Capacity 188Ah, Output 12V. Dimensions: 530 x 209 x 214mm. Weight: 52.2Kg..
CA-17/37
Sealed Gel Battery. Storage Capacity 88Ah, Output 12V. Dimensions: 259 x 168 x 208mm. Weight: 23.30Kg..
DG7 Series Intelligent Gas Detectors
The DG7 Series Intelligent gas detectors is split over three main options housed in a common unit with interchangeable, intrinsically safe sensor cartridges that can be replaced while powered. The DGI-TT7-E monitors toxic gases or oxygen using electrochemical cells, the DG-TT7-S employs a solid-state metal oxide semiconductor, and the DG-TX7..
EL-WiFi Vaccine Monitoring Kits
These data loggers were specifically designed to measure temperature in vaccine fridges and freezers. Each logger has a thermistor temperature probe with 3m of cable mounted into a small bottle filled with Glycol. This provides a temperature reading of the vaccines, instead of the air temperature. The built-in LCD display..
IPRO609
GasBadge Pro Personal Single Gas Monitor for Phosphine (PH3). Range 0-10 ppm in 0.01ppm increments. 1 Year continuous data logging, plus event logging for last 15 alarm events. Backlit LCD display. Ultra-bright LED, vibrating and audible (95dB) alarms with STEL and TWA and selectable low and high alarm levels. Rugged,..
MSR165 Data Logger for Shock & Vibration
The MSR165 is a miniature universal data logger for measuring and recording 3 axis acceleration up to 15g or 200g, frequency range 1600 Hz. It also has the option of internal temperature, humidity, pressure and light sensors. The units comes in a waterproof housing and an anodised aluminium case with..
Nemo D4-DC Multi-Function DC Power Meter
The Nemo D4-DC is a multi-function power meter designed for monitoring DC power supplies. Voltage input 10-300vDC and direct current of up to 10A. Higher ranges available using external adapters and DC current Shunts. Output has two alarm relay outputs, pulse output or RS485 Communications...
OMEGA-WE-SDC300
OMEGA Helix Woltmann Type Bulk Water Meter. Pipe diameter 300mm with PN16 flanged connections, flow range: Qmin 12.5m³/hr; Qn 1000m³/hr; Qmax 1250m³/hr. Epoxy coated cast Iron body suitable for up to water up to 30°C. All OMEGA Flowmeters come prepared for a pulse output of Ltr/pulse. Additional pulse output options..
PL-692-16
PL-692-16 differential pressure transmitter suitable for liquids, steam and gases. Pressure range 0-16 BarD over a 4-20mA output with 11-33vDC power supply. IP65 stainless steel casing with a pair of 6mm compression pressure connection, ceramic Al2O3 (96%) diaphragm and 1.5m flying lead. Operating temperature range -15 to +85°C...
PM-CT-800SC
Current Transformer (split core type) - Primary current - 800A, Rating Class 3 - 5.0 VA..
PM-CT-M800
Current Transformer (moulded type) - Primary current - 800A, Rating Class 3 - 10VA..
RMS1-TT-110168-6V-GR-MB
Remote I/O Module, 16 NPN digital Inputs, 8 Open Collector Digital Outputs and 6 Analog Inputs 0-10V . RS232/RS485 Modbus ASCII/RTU Communication, Wide power supply range: 10 up to 30vDC, DIN rail mounting...
RMS1-XR-110016-0X-GR-MB
Remote Outputs Module, 16 Digital Relay Outputs. RS232/RS485 Modbus ASCII/RTU Communication, Wide power supply range: 10 up to 30vDC, DIN rail mounting...
Tinytag Energy Logger
The Tinytag Energy Logger can be used to monitor single and three phase energy supplies and is very simple and easy to use portable energy logger. Current measurements are taken using flexible non-invasive coils for quick and easy installation. The unit provides 6 weeks continuous logging at 5 minute intervals...
WPI-SDC-300
WPI-SDC Irrigation Water Flowmeter. Pipe diameter DN300 with standard PN16 flanges. Flow range Q1 80m³/h, Q2 128m³/h, Q3 1,600m³/h and Q4 2,000m³/h. IP68 Epoxy Coated Iron body with replaceable copper can mechanism. Additional pulse output options from 1 to 10 m³/pulse are available at the time of order. (Please order..
Power Logger for AC Current, Voltage, kWh
Utilising the SQ2010 data logger, along with AC current clamps, AC voltage sensors and kWh sensors this system can be used to monitor electrical power consumption on single phase or multiphase supplies...
0338920-002
CMP 3 Spectrally Flat Class C Pyranometer. Single 4mm glass dome. Integrated leveling. Sun shield. Spectral range 300-2800nm, response time less than 20 sec (95%), Operating temperature -40 to +80°C. Thermopile detector. Sensitivity 24 to 32µV/W/m². Supplied with waterproof 2-pin plug connector with 10m of pre-wired yellow signal cable...

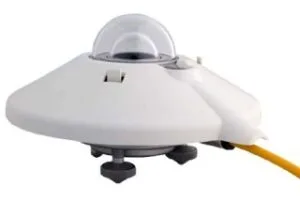

0338920-004
CMP 3 Spectrally Flat Class C Pyranometer. Single 4mm glass dome. Integrated leveling. Sun shield. Spectral range 300-2800nm, response time less than 20 sec (95%), Operating temperature -40 to +80°C. Thermopile detector. Sensitivity 24 to 32µV/W/m². Supplied with waterproof 2-pin plug connector with 25m of pre-wired yellow signal cable...
0342901-003
CSD 3 Sunshine Duration Sensor for measuring the duration and amount of direct solar radiation above 120W/m². No moving parts, direct irradiance value derived from global and diffuse radiation measurements from 3 photo-diode detectors. Derived direct irradiance output signal of 1mV/W/m² and switched output: 1V for sunny; 0V for not..
