MCDC3M
Blanking cap for miniature series MCIL type subsea connector, 3 pin male, to suit MCIL3F inline connector or MCBH3F bulkhead connectors. This item isn't available to purchase online but is normally held in stock. You can contact us directly to check availability and pricing. info@omni.uk.com..
MCR-4V
MCR-4V High Speed Voltage Data Logger suitable for up to 4 voltage inputs (ranges: ±300mV; ±1.5V; ±6V; and ±24V). Complete kit supplied with windows software for programming and data download, USB download cable and 2 x AA batteries. Units include an integrated LCD and internal memory for up to 480,000..
MF96002
Nemo 96HD Multi-function panel mounted power meter suitable for single or 3 phase networks, 3 or 4-wires. Single-phase Input: 50-290V. Three-phase Input: 80-500V (phase-phase). Current Inputs 1A or 5A CTs. Meter has 4 slots for plug in modules. Auxiliary Power Supply: 16-60vDC. Backlit LCD display with 12mm digits. Dimensions 96..
MicroCal 2 & 3 K-Type Thermocouple Simulator
The MicroCal 2 & 3 thermocouple simulator helps ensure that the frequent checking of thermometer accuracies is a routine operation. The thermometer calibrator designed to simulate a chosen temperature, allowing standard K thermocouple thermometers to be tested or recalibrated simply and quickly, without the need for additional specialised equipment or..
Micromag GSM Antenna
MICROMAG GSM frequency antenna with magnetic base for easy mounting. The MICROMAG is an omni-directional antennasuitable for use with most GSM GPRS devices with a radio band frequency from 868MHz to 915MHz. Standard options are 5m of cable with an SMA connector. Other standard radio connectors and cable lengths are..
MIEX06114
MiniAir 6EX Micro vane anemometer. Sensing head 11mm diameter x 15mm, probe length 165mm. Air velocity range 0-40m/s with a 0-2V output. Accuracy ±1% of full scale, ±3% of reading. Power supply 9-24vDC Sensor is supplied with 20m cable to zener barrier housing. Operating range -10 to +80°C. Plastic sensing..
MPDCD3-B
Solid state relay, operation voltage 3-32vDC, load voltage 3-60vDC, maximum current 3 Amps, with SPST-NC contacts. Suitable for switching power to DC devices...
MSR Dry Shipper Data Logger
The robust MSR85 data logger ensures reliable temperature monitoring for products transported or stored with dry ice. It is ideal for sensitive goods such as pharmaceuticals, vaccines, biological samples, tissues or enzymes that require a secure cold chain down to -85°C. Logger has bright LEDs for each alarm recognition and..
MSR FlexSensor
MSR FlexSensors are extremely robust plug-in sensors for recording measured parameters such as temperature, humidity, liquid pressure, light and 3-axis acceleration (Fast Peak). The MSR FlexSensors can be used with a USB cable, or your MSR data logger. Offering an all-round high performance measuring instrument with countless sensor combination options...
MTN/1185C
MTN/1185C Series RMS Velocity Transducer with 5m of stainless steel overbraided cable. Robust Stainless Steel construction with a 2-wire 4-20mA output. Measurement ranges: 0-10, 0-20, 0-25, 0-50, 0-100mm/sec. Power supply 12-32vDC. Frequency response 2 Hz to 1kHz. Operating temperature -25 to +90°C. Various mounting options. Sealed to IP67...
MTN/1187 RMS Acceleration Sensor with 4-20mA Output
The MTN/1187 is a general purpose, top-entry acceleration sensor with a 4-20mA output of the RMS acceleration values. Sensors are constructed of stainless steel throughout for a robust sensor suitable for continuous vibration monitoring, even in harsh environments. Electrical connection options include a 3-pin 62GB connector, 2-pin MS connector, integral..
MTN/1187C
MTN/1187C Series general purpose RMS acceleration transducer with 5m of stainless steel overbraided cable. Robust Stainless Steel construction with a 2-wire 4-20mA output. Measurement ranges: 0-1, 0-2, 0-5, 0-10, 0-20g. Power supply 12-32vDC. Frequency response 2 Hz to 1kHz. Operating temperature -25 to +90°C. Various mounting options. Sealed to IP67...

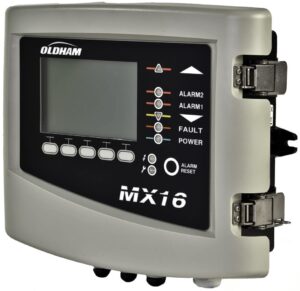

MX16-0-000-1-0-0
MX16 Gas Detection Controller configured for Analogue or Digital Input Gas Detectors. RS485 Modbus Comms, 2 Alarm levels (Al1, Al2) + 1 fault, with Dry Contact Relays. LCD back-lit display. IP55 Enclosure with 3 x M16 and 2 x M20 cable glands. Dimensions 265 x 266 x 96mm. The MX16..

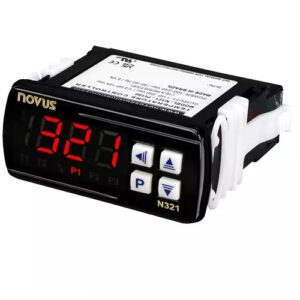

N321 Electronic Thermostat
The Novus N321 Electronic Thermostat is designed for cooling and heating control using a single control SPDT Relay (Max 250vAC @ 16A) to activate or deactivate a compressor or electronic heater with simple ON/OFF control. The N321 can accept PT100 (2- or 3-Wire), NTC Thermistor or Thermocouple (Type J, K..

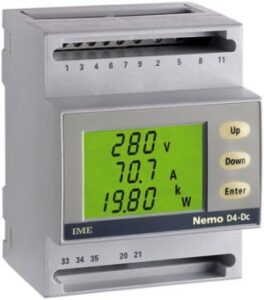

NEMOD4-DC42006
Nemo D4-DC Multi-Function Power Meter. Suitable for DC power monitoring, 10-300vDC and up to 10A with direct connections, higher available with suitable adapters and DC current shunts. LCD display, RS485 Modbus Communications, pulse output and 2 relay outputs. Auxiliary Supply 230vAC...
NS500/063-SUB-CRE
NS 500/063 Pelton Wheel Flowmeter. 316/431 Wetted parts (PTFE or Viton oring). End connections 3/4 inch BSPM. Pressure rating 345 bar. Calibrated over the range of 0.18-1.8 l/min. For use on Water. Standard pick-up coil & subsea CRE connector...

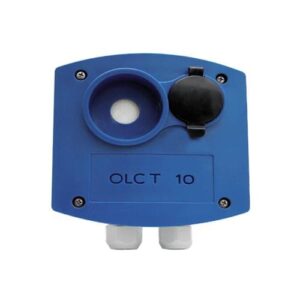

OLCT10-216
OLCT10 Fixed Gas Detector for Nitrogen Monoxide (NO). Range 0-100ppm. Output 4-20mA. Power supply 15-30vDC, consumption 30mA max. Operating temperature -20 to +55°C. Life span >36 months. Response time less than 120 second (T90). Plastic housing, 118 x 126 x 63mm, IP65...
OLCT10N-002
OLCT10N Fixed Digital Gas Detector for Methane (CH4), Range 0-4.4% Volume, Accuracy ±1%LEL. Output: RS485 Modbus RTU. Power Supply: 12-30vDC, Consumption 50mA typ. Operating temperature: -20 to +55°C. Life span: 48 Months. Plastic housing, 118 x 157 x 60mm, IP65. Certified to use in ATEX II 3GD zone...
OLCT60 Fixed Gas Detector with Display
The OLCT60 is a new high quality industrial fixed gas detector suitable for a wide range of industrial applications for the detection of flammable, toxic gases or Oxygen. The transmitters has a digital display and will provide a 4-20mA output. The detectors are ATEX approved, SIL 2 certified and available..
OMEGA-WP-SDC65
OMEGA Helix Woltmann Type Bulk Water Meter. Pipe diameter 65mm with PN16 flanged connections, flow range: Qmin 788 l/hr; Qn 63m3/hr; Qmax 78.75m3/hr. Epoxy coated cast Iron body suitable for up to water up to 30 C with WRAS Approval. All OMEGA Flowmeters come prepared for a pulse output of..
Omni C Series Current Transducers
The Omni C Series are single-phase AC current transducer with a split core sensor. Jumpers allow for the a selectable input range of 0-10, 0-20 and 0-50 Amp or 0-100, 0-150 and 0-200 Amps. Self powered units are available with a 0-5vDC or 0-10vDC output plus a loop powered 4-20mA..
P501 Miniature Rotary Sensor
The P501 RIPS (Rotary Inductive Position Sensor) suitable for OEM applications. Each unit is supplied with the output calibrated to the angle required by the customer, between 30 and 140 degrees. It is particularly suitable for OEMs seeking good sensor performance for arduous applications where space is important...

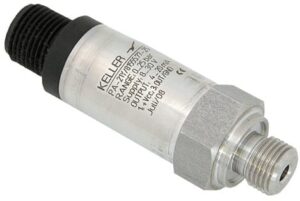

PA-21Y/30BAR/22-2155-144
Series 21Y Pressure Transmitter. Range 0 to 30 Bar. Power Supply 8-32vDC, Output 4-20mA. 1/4" BSP process thread and IP67 rated M12 electrical connection. Compensated temperature range 0 to +50°C and ±0.5%FS linearity...

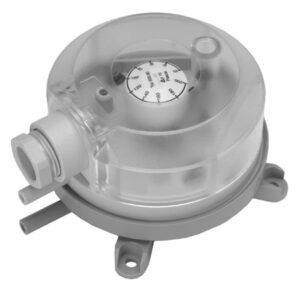

PA-DPS-83
PA-DPS Differential Air Pressure Switch in an IP54 enclosure. Range 50-500 pascals with a Silver Cadmium Oxide (AgCdO) contacts suitable for up to 1.5A (0.4)/250vAC. 6mm id pressure connections. Dimensions 130mm diameter x 99mm high. Units come complete with duct fixing kit (consisting of 2 x pitot tubes, 2m tubing..
