cLAN Ethernet TCP/IP Data Logger
The cLAN data logger includes an Ethernet interface to allow for data transfer via TCP/IP. The cLAN unit comes complete with an embedded Modbus Master for I/O expansion. Two versions of the cLAN are available, CLAN-1520-XF has 2 serial ports allowing Modbus (Master or Slave) or transparent serial access from..
COMPASS-A4020-45
Compass sensor, with 0-5V output for 0-360 degrees, power supply 7-15vDC at 60mA, operating temperature -20 to +65°C. Tilt compensation to 45°...
Conto D4-Sh – Multifunction Power Meters
The Conto D4-SH multifunction power meter is suitable for monitoring single and three phase supplies for current, phase to phase and phase to neutral voltage and kWh consumption. It offers a pulse output for kWh measurement or Modbus RS485..
CTH-30A-5V-24VDC
CTH type 5 DC current sensor range 0-30 AMPS DC, output 0-5v DC, power supply 24v DC, with 21mm diameter hole...
Datataker DT82E Environmental Logger
The Datataker DT82E is a smart data logger designed especially for environmental monitoring. The DT82E is a robust, low power data logger featuring USB memory stick support, 18-bit resolution, extensive communications capabilities and built-in display. The DT82E also supports SDI-12 inputs, allowing it to be used with various weather station..
DBBSM S Beam – Bi-directional Load Cell
The DBBSM series loadcells are a miniature S beam, bi-directional load cell suitable for tension and compression applications. Loadcells are available with a bi-directional range of 1Kgf up to 30,000Kgf with a standard 2.7mV/V (2mV/V above 10,000Kgf) output and accuracy of 0.03%. Units can be supplied with suitable inline amplifiers..
DFM2 Fixed Ultrasonic Doppler Flow Meter
The DFM2 is a microprocessor-controlled flow meter for the measurement and control of liquids flowing through process and effluent pipelines using the non-intrusive Doppler principle. The flow meter display indicates flow rate and total volume for a wide range of liquids, including aerated water, liquids containing suspended solids, slurries and..
DigiRail I/O Modules
The DigiRail Modules are a set of small DIN Rail mounted acquisition modules that will accept a range of different inputs. Specific units can be configured to accept mA, V, mV, PT100, Thermocouple or digital pulse inputs, plus one unit provides 2 relay outputs. The unit will connect to a..
DMI420
DMI420 Series Dual Axis Inclinometer with display for X-axis & Y-axis readings. Range ±90° with an accuracy of 0.05° and 0.01° resolution. Built-in rechargeable battery suitable for up to 8 hours standalone operation from 3 hours charging, or infinite operation when powered by the USB port. The USB port for..
DMI420 Digital Display Dual Axis Inclinometer
The DMI420 is a dual axis inclinometer with USB connection and digital display for real-time inclination monitoring. Units include a built-in rechargeable battery suitable for up to 8 hours standalone operation from 3 hours charging, or infinite operation when powered by the USB port. The USB port may also be..
DMI810-30
DMI810 Series Single Axis Inclinometer with touchscreen display for single axis readings. Range ±30° with an accuracy of 0.01° and 0.001° resolution. Built-in rechargeable battery suitable for up to 11 hours standalone operation from 3-4 hours charging, or infinite operation when powered by the USB port. The USB port can..
DMI810-30-RS232
DMI810 Series Single Axis Inclinometer with touchscreen display for single axis readings. Range ±30° with an accuracy of 0.01° and 0.001° resolution. Built-in rechargeable battery suitable for up to 11 hours standalone operation from 3-4 hours charging, or infinite operation when powered (9-36vDC) by the wired connection. The RS232 connection..
DMI820-30
DMI820 Series Dual Axis Inclinometer with touchscreen display for X-axis and Y-axis readings. Range ±30° with an accuracy of 0.01° and 0.001° resolution. Built-in rechargeable battery suitable for up to 11 hours standalone operation from 3-4 hours charging, or infinite operation when powered by the USB port. USB port for..
DMI820-30-RS232
DMI820 Series Dual Axis Inclinometer with touchscreen display for X-axis and Y-axis readings. Range ±30° with an accuracy of 0.01° and 0.001° resolution. Built-in rechargeable battery suitable for up to 11 hours standalone operation from 3-4 hours charging, or infinite operation when powered (9-36vDC) by the wired connection. The RS232..

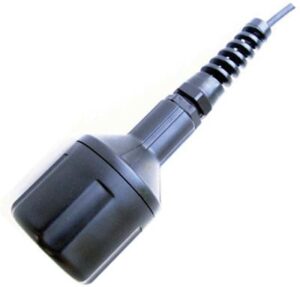

DO6441-T
Dissolved Oxygen sensor with a Zinc anode and a Teflon membrane for standard range applications. Range 0-100% saturation with a 4-20mA output. Sensors are fitted with a standard of 3m cable...
DPT-FLOW-1000-AZ-D
DPT-Flow-1000-AZ-D - Air Flow and Velocity Transmitter. Designed for Building Management Automation Systems with measurements for Volume Flow, Velocity and Static and Differential Pressures. Power Supply: 24V ±10% @ <1W. Measuring Range: 100 - 1000 Pascals. Accuracy: >125 Pa, ±1%, ±1 Pa and <125 Pa, ±1%, ±2 Pa. Selectable Output:..

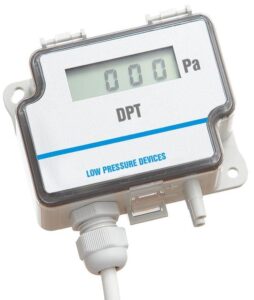

DPT250-R8-D
DPT-R8 Multi-Range Differential Pressure Transmitters for Air Pressure. 8 Jumper selectable ranges: ±25, ±50, ±100, ±150, 0-25, 0-50, 0-100, 0-250 Pa. Selectable output of 4-20mA or 0-10vDC, Accuracy 1% ±2Pa < 125Pa (1% ±1Pa >125 Pa). Power Supply: 24vDC, ±10%. Back-lit LCD with measurement and units. ABS Enclosure with IP54..
DTI-EMF-DN65-HR-PN16
DTI-EMF Series Electromagnetic Flow Meter. DN65 - DIN Flanged, 65mm Pipe Diameter. HR - Hard Rubber Lining. PN16 - 16 Bar Pressure Rating. Electrodes, Power Supply, and any other additional options, must be purchased with this flow meter..

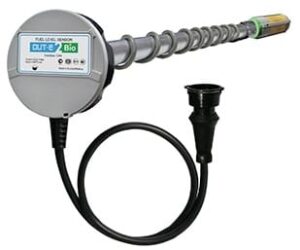

DUT-E-2BIO-I-1000
DUT-E 2 BIO Capacitance Fuel Level Sensor. Ideal for Biodiesel and long distance vehicle fuel tanks. Power supply 10-50vDC @ 10mA. Operating temperature -40 to +80°C, accuracy ±1% FSD. Output: 4-20mA, Probe length: 1,000mm..
EGW1-1C0-00-IA3-MB-IS
EGW1 - Serial Modbus ASCII/RTU to Modbus TCP Protocol Converter. 1 x Isolated RS232/RS485/RS422 Serial Ports and 1 x RJ45 Ethernet Port. DIN Rail mounted industrial enclosure with terminal blocks. Power supply: 10-30vDC, consumption 70mA @ 12vDC. Dimensions: 100 x 22.5 x 112mm. Operating Temperature: -15 to 65°C...
EGW1-IA3-MB – Modbus ASCII or RTU To Modbus TCP Protocol Converter
The EGW1-MB module is used to connect any industrial equipment with Modbus RTU or ASCII, to an Ethernet TCP / IP protocol to transmit data across an Ethernet connection. An EGW1-MB unit is available with 10 digital I/O channels for additional monitoring and onsite control. This option makes it different..

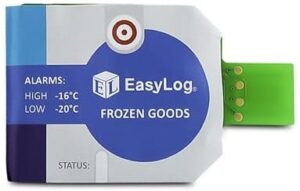

EL-CC-1-002
EasyLog Cold Chain Temperature Logger for Frozen Goods. Temperature Range: -30 to +60°C. Alarm Thresholds: Low: -20°C; High -16°C. Logging Interval: 10 Mins, Internal Memory: 32,600 readings (220 days logging). Battery Life: 12 Months. Start/Stop button and status LEDs to give a quick indication of any alarm conditions. Windows software..

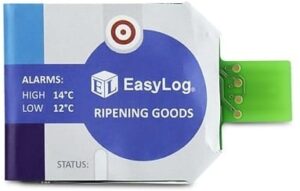

EL-CC-1-003
EasyLog Cold Chain Temperature Logger for Ripening Goods. Temperature Range: -30 to +60°C. Alarm Thresholds: Low: +12°C; High +14°C. Logging Interval: 10 Mins, Internal Memory: 32,600 readings (220 days logging). Battery Life: 12 Months. Start/Stop button and status LEDs to give a quick indication of any alarm conditions. Windows software..
EL-SIE-1+
EL-SIE-1+ High Accuracy Temperature Data Logger with Display. Temperature range -18 to +55°C, Accuracy ±0.1°C. Over 1 million reading internal memory. Selectable logging intervals with configurable start time and high & low alarms. An integrated USB port for configuration and downloading logged data. 2 x AAA batteries provides more than..
