Fluidwell B-Basic Flow Rate Display

Basic flow measurement where a local flow rate indication and totaliser function is required without re-transmission functionality. The Fluidwell B-series offers you an economical solution for common industrial applications. The B-Series were designed and constructed for measurement purposes in industrial processes in safe areas for various flow meter signals. ...

Keller Series 35X Flush Diaphragm Pressure Transmitters

The Series 35X is a high-precision Piezoresistive pressure transmitter featuring a flush-mounted metal diaphragm and delivers a highly accurate, mathematically compensated output signal. Standard accuracy is 0.05% of full scale for both RS485 serial and analog outputs. The RS485 comms allow the Control Center Series 30 software, for easy reconfiguration ...

WindSonic 60 Ultrasonic Wind Speed and Direction Sensor

WL420 Hydrostatic Level Transmitter

The WL420 is a submersible transmitter designed for continuous liquid level monitoring in various water and liquid applications. It measures static pressure using a durable 316L stainless steel sensor with a proportional 4-20mA signal. A vented cable ensures that readings are compensated for atmospheric pressure changes. Standard cable length is ...

0338920-000

CMP 3 Spectrally Flat Class C Pyranometer. Single 4mm glass dome. Integrated leveling. Sun shield. Spectral range 300-2800nm, response time less than 20 sec (95%), Operating temperature -40 to +80°C. Thermopile detector. Sensitivity 24 to 32µV/W/m². Supplied with no plug or cable. ...

0342901-000

0344920-003

0346901

0359900-010

CGR 4 Pyrgeometer with integrated 10K Thermistor temperature sensor. Silicon meniscus dome with hard carbon coating and infrared window materials to absorb short-wave radiation. Integrated leveling. Sun shield. Spectral range 4500-42,000nm, response time less than 18 sec (95%), temperature dependence of sensitivity less than 1% (-20 to +50°C). Operating temperature ...

0362900-000

CMP 6 Spectrally Flat Class B Pyranometer. Two, 2mm thick, high quality concentric domes. Integrated levelling. Sun shield. Spectral range 285-2800nm, response time less than 18 sec (95%), Operating temperature -40 to +80°C. Thermopile detector. Sensitivity 5 to 20µV/Wm². Supplied with no plug or cable. ...

0362920-010

CMP 21 Secondary Standard Pyranometer. Two, 2mm thick, high quality concentric domes. Integrated leveling. Sun shield. Spectral range 285-2800nm, response time less than 5 sec (95%), Operating temperature -40 to +80°C. Thermopile detector. Sensitivity 7 to 14µV/Wm². 10K Thermistor output. Supplied with no plug or cable. ...

0362930-010

CMP 22 Secondary Standard Pyranometer. Two, 4mm thick, very high quality quartz domes. Integrated leveling. Sun shield. Spectral range 200-3600nm, response time less than 5 sec (95%), Operating temperature -40 to +80°C. Thermopile detector. Sensitivity 7 to 14µV/Wm². 10K Thermistor output. Supplied with no plug or cable. ...

0364910-000

CUV 5 Broadband UV Radiometer. For measurement of global combined UV-A and UV-B irradiance. Single 2mm glass dome. Integrated leveling. Sun shield. Spectral range 280 - 400nm (50% points), response time less than 1 sec (95%), sensitivity 300-500µV/Wm² (variation ±0.1% per °C), operating temperature -40 to +80°C. Photo-diode detector, diffuser, ...

0367900-001

Solys 2 Sun Tracker with stand-alone solar tracking and integrated GPS receiver. Stepping motor drive through inverted tooth belts. Includes tripod with leveling feet and side mounting plate with mountings for a pyrheliometer. Directional accuracy less than 0.1 with passive tracking, less than 0.02 with active tracking (requires sun sensor). ...

0368900-030

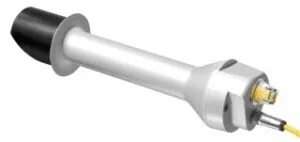

CHP 1 Pyrheliometer. Quartz window, integrated alignment aids, rain shield. Spectral range 200-4000nm, response time less than 5 sec (95%), Operating temperature -40 to +80°C. Thermopile detector. Sensitivity 7 to 14µV/Wm², (variation < 0.5% from -20 to +50°C). Calibration certificate includes temperature dependency from -20 to +50°C in 8 steps ...

0369900-030

0374900-100

SMP 3 Smart Pyranometer with 0-1vDC output. Single 4mm glass dome. Integrated leveling. Sun shield. Spectral range 300 - 2800nm, response time less than 12 sec (95%), Operating temperature -40 to +80°C. Thermopile detector. 2-wire RS485 Modbus and 0-1V output. Digital output range -200 to 2,000W/m². Analogue output range -200 ...

0374905-100

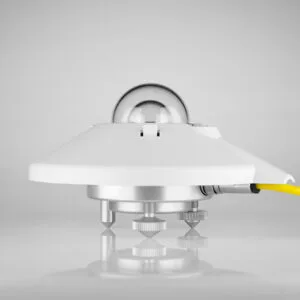

SMP 10 Smart Pyranometer with 0-1vDC output. Double 2mm glass dome. Integrated leveling. Sun shield. Spectral range 285 - 2800nm, response time less than2 sec (95%), Operating temperature -40 to +80°C. Thermopile detector. 2-wire RS485 Modbus and 0-1vDC output. Analogue output range -200 to 2000Wm², Digital output range -400 to ...

0374920-100

SMP 6 Smart Pyranometer with 0-1vDC output. Two, 2mm thick, high quality concentric domes. Integrated levelling. Sun shield. Spectral range 285-2800nm, response time less than 12 sec (95%), Operating temperature -40 to +80°C. Thermopile detector. 2 wire RS485 Modbus and 0-1V output. Analogue output range -200 to 2,000Wm², Digital output ...

0374940-100

0376900-100

SGR4-V Smart Pyrgeometer. Silicon meniscus dome with hard carbon coating and infrared window materials to absorb short-wave radiation. Integrated leveling. Sun shield. Spectral range 4400-50,000nm, response time less than 18 sec (95%), temperature dependence of sensitivity less than 1% (-20 to +50°C). Operating temperature -40 to +80°C. 2-wire RS485 Modbus ...

0379900-000

CMP 10 Secondary Standard Pyranometer. Two, 2mm thick, high quality concentric domes. Integrated levelling. Sun shield. Spectral range 285-2800nm, response time less than 5 sec (95%), Operating temperature -40 to +80°C. Thermopile detector. Sensitivity 7 to 14µV/Wm². Supplied with no plug or cable. ...

0382900

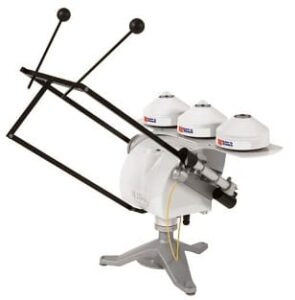

RaZON+ All-in-One solar monitoring system with Sun Tracker, including integrated GPS receiver for accurate location information and time stamps. System includes a gear drive sun tracker base unit, one PH1 Pyrheliometer and one PR1 Pyranometer with shading assembly and cables for supplied sensors. Power supply 24vDC @ 13W. Operating temperature ...

0426900

Edit Content

Fluidwell B-Basic Flow Rate Display

Keller Series 35X Flush Diaphragm Pressure Transmitters

WindSonic 60 Ultrasonic Wind Speed and Direction Sensor

The Windsonic 60 Ultrasonic anemometer provides wind speed and direction in the range of 0-60m/s. Data can be provided in a single serial stream or two analogue outputs. The WindSonic unit is a robust, lightweight (0.5kg) sensor with a corrosion-free polycarbonate blend housing. The WindSonic 60 is suitable for use in harsh marine environments and uses an ultrasonic measurement principle that will avoid the problems caused by the fragility of cups and propellers. Units are ...

WL420 Hydrostatic Level Transmitter

0338920-000

0342901-000

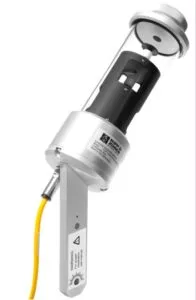

CSD 3 Sunshine Duration Sensor for measuring the duration and amount of direct solar radiation above 120W/m². No moving parts, direct irradiance value derived from global and diffuse radiation measurements from 3 photo-diode detectors. Derived direct irradiance output signal of 1mV/Wm² and switched output: 1V for sunny; 0V for not sunny. Typical accuracy better than 90%. Operating temperature -40 to +70°C. Integrated heater with 2 power levels; 1W or 10W. 12vDC power supply. Supplied with ...

0344920-003

NR Lite2 Net Radiometer with a standard millivolt output for net total radiation. Thermopile detector with a black PTFE coated conical absorbers on both sides. Signal output reflects the difference between the Sun/Sky radiation and ground radiation. Spectral range 20nm to 100 µm, response time less than 60 sec (95%), non-linearity less than 1% (over full range), sensitivity 10µV/Wm² (nominal). Captive cable 15m long. Integral mounting rod, 800mm long x 20mm diameter, for mast or ...

0346901

CM121C Shadow Ring suitable for all ventilated Kipp & Zonen pyranometers, smart pyranometers, pygeometers and UV Radiometers to shield the instrument from direct radiation. The device allows diffuse sky irradiance measurement by covering the sensors dome with a shadow. Correction factors are supplied with the equipment to allow compensation for the diffuse radiation intercepted by the ring. The CM121C includes a factory fitted adapter to correct for the extra height of the ventilated sensors. The ...

0359900-010

0362900-000

0362920-010

0362930-010

0364910-000

0367900-001

0368900-030

0369900-030

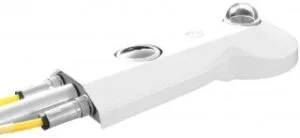

CNR 4 Net Radiometer with 4 separate millivolt outputs for incoming and reflected short-wave radiation and downward and upward long-wave radiation. The unit consists of a pyranometer and pygeometer on both sides. Spectral range 300 to 2800nm (short-wave) and 4.5 to 42µm (long-wave), response time less than 18 sec (95%), non-linearity less than 1% (over full range), sensitivity 7 to 20µV/Wm² (short-wave) and sensitivity 5 to 10µV/Wm² (long-wave). Units are supplied with a screw-in mounting ...

0374900-100

0374905-100

0374920-100

0374940-100

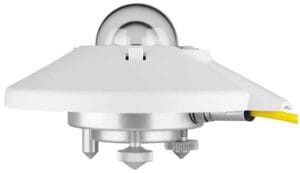

SMP22 Smart Pyranometer with a configurable 0-1vDC output. Secondary standard pyranometer with a 32-junction thermopile sensing element under two, 2mm thick, high quality concentric domes. Integrated leveling. Sun shield. Spectral range 250 - 3500nm, response time less than 2 sec (95%), Operating temperature -40 to +80°C. Thermopile detector. 2 wire RS485 Modbus and 0-1V output. Analogue output default range -200 to 2,000W/m², Digital output range -400 to 4,000W/m². Power Supply 5 to 30vDC. Supplied with ...

0376900-100

0379900-000

0382900

0426900

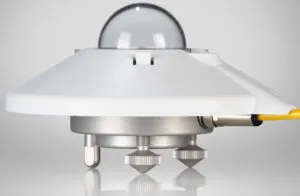

SMP 12 Smart Pyranometer with RS485 Modbus Comms. High Quality glass dome with heating to mitigate effects of morning dew, frost or snow. Integrated leveling. A white diffuser based thermopile solar measurement sensor for a faster response time. Spectral range 285 - 2750nm, response time less than 0.5 Secs (95%). Operating Temperature -40 to +70°C. Remote tilt angle monitoring, Sun shield and EN 61000-6-2 surge protection against lightning strikes. The RS485 Modbus RTU outputs provide ...
