Description

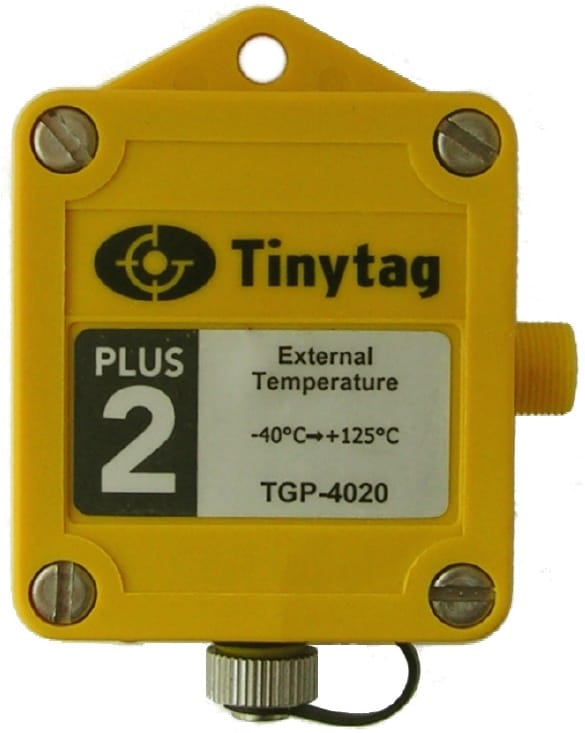

The TGP-4020 is the most popular of the Tinytag Plus 2 range. The robust and waterproof (IP68 rated) housing, specifically designed for challenging indoor and outdoor environments, allows the TGP-4020 to be used virtually anywhere. The large range of Tinytag Thermistor probes means the logger is able to monitor temperatures in a wide range of different applications.

Features

• Temperature recorder
• 32,000 reading capacity
• High accuracy
• High reading resolution
• Fast data offload
• Robust, waterproof case
• Low battery monitor
• User-replaceable battery

Popular Applications

• Environmental monitoring
• Food processing and storage
• Pharmaceutical manufacture
• Logistics monitoring
• Museums and art galleries

Logger Specifications		Sensor Specifications
Total Reading Capacity:	32,000 Readings	Sensor Type:	External 10K NTC Thermistor Probe
Memory Type:	Non-Volatile	Measuring Range:	-40 to 125°C (-40 to +257°F)
Trigger Start:	Magnetic Switch	Reading Resolution:	0.02°C or better

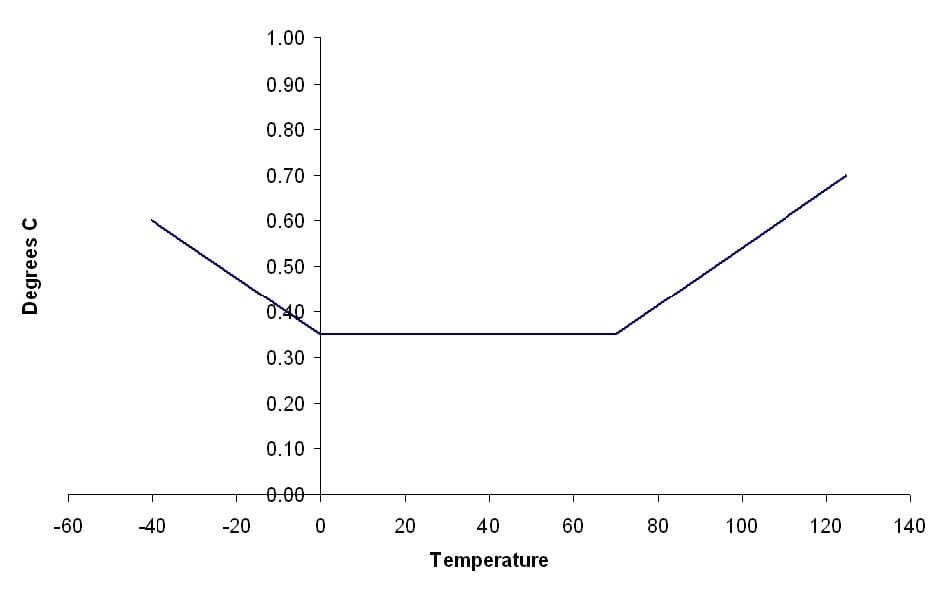

Delayed Start:	Relative/Absolute (up to 45 days)	Sensor Accuracy: (Graph below is based on PB-5001, PB-5002 or PB-5003 probes)
Stop Options:	When full After n Readings Never (overwrite oldest data)
Reading Types:	Actual, Min, Max
Logging Interval:	1 sec to 10 days
Alarms:	2 fully programmable; latchable
Operational Temperature Rating:	-40 to +85°C (-40 to +185°F)
IP Rating:	IP68 (Waterproof)
Case Dimension (HxWxD):	34 x 59 x 80mm
Weight:	110g

This Logger can be used with any of the Tinytag Thermistor probes available.
