When industrial process validation demands absolute reliability in the harshest environments, the Tinytag Plus 2 Instrumentation series delivers unmatched performance. Housed in Tinytag’s ultra-robust IP68 waterproof and dustproof casing, these heavy-duty data loggers are engineered for long-term outdoor deployment, high-humidity factories, and aggressive washdown areas. They provide the rugged interface needed to connect directly to standard industrial transmitters, utility meters, and laboratory sensors without risking hardware failure from moisture or debris ingress.

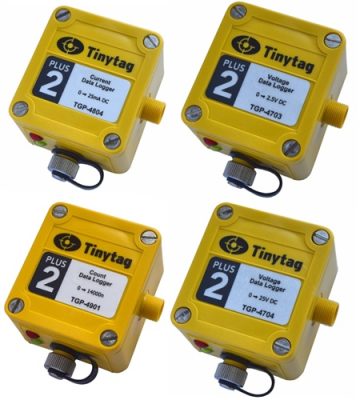

The range is split into four core signal-input variants:
While the Tinytag Plus 2 Instrumentation series offers rugged environmental protection, its primary limitation lies in its fixed input architecture and permanent firmware scaling. Each hardware unit is dedicated strictly to its native signal profile, functioning purely as a direct current, voltage, or pulse-count logger.
To display true physical metrics (such as Bar, flow rate, or ppm) on your charts, the logger must be factory-calibrated and scaled to the specific engineering units required prior to deployment. This scaling profile is permanent and cannot be modified or reconfigured in the field after the initial setup. To accommodate this, customers have two distinct options at the time of purchase: select a standard raw-signal model to handle calculations manually within external software, or specify your exact sensor scaling requirements upfront for factory pre-configuration.
Tinytag Plus 2 Voltage data logger. Range 0-2.5vDC. Memory for 32,000 readings with 2 programmable alarms. Logging rate 1 sec to 10 days with min, max & actual readings, battery life up to 2 year. Splash proof I.P. 65 case. Unit is supplied with the Current/Voltage input cable, CAB-3239
Tinytag Plus 2 Voltage data logger. Range 0-25vDC. Memory for 32,000 readings with 2 programmable alarms. Logging rate 1 sec to 10 days with min, max & actual readings, battery life up to 2 year. Splash proof I.P. 65 case. Unit is supplied with the Current/Voltage input cable, CAB-3239
Tinytag Plus 2 Current data logger. Range 0-25mA. Memory for 32,000 readings with 2 programmable alarms. Logging rate 1 sec to 10 days with min, max & actual readings, battery life up to 2 year. Splash proof I.P. 65 case. Unit is supplied with the Current/Voltage input cable, CAB-3239
Tinytag Plus 2 Voltage data logger. Range 0-2.5vDC. Memory for 32,000 readings with 2 programmable alarms. Logging rate 1 sec to 10 days with min, max & actual readings, battery life up to 2 year. Splash proof I.P. 65 case. Unit is supplied with the Current/Voltage input cable, CAB-3239. Custom Scaling to show readings in required units, ie. Bar, m/s, etc.
Tinytag Plus 2 Voltage data logger. Range 0-25vDC. Memory for 32,000 readings with 2 programmable alarms. Logging rate 1 sec to 10 days with min, max & actual readings, battery life up to 2 year. Splash proof I.P. 65 case. Unit is supplied with the Current/Voltage input cable, CAB-3239. Custom Scaling to show readings in required units, ie. Bar, m/s, etc.
Tinytag Plus 2 Current data logger. Range 0-25mA. Memory for 32,000 readings with 2 programmable alarms. Logging rate 1 sec to 10 days with min, max & actual readings, battery life up to 2 year. Splash proof I.P. 65 case. Unit is supplied with the Current/Voltage input cable, CAB-3239. Custom Scaling to show readings in required units, ie. Bar, m/s, etc.
