SQ Series Data Loggers with 8-16 Analogue Inputs
The SQ Series data loggers are a range of general purpose data loggers with universal inputs suitable for monitoring current, voltage, resistance, temperatures and digital channels for alarms and triggering. Loggers have 8 differential/16 single-ended, 8 digital state inputs and 4 digital outputs. The logger can be used as a..
SQ16
Squirrel SQ16 Data Logger, 8 differential or 16 single ended channels suitable for 2-Wire PT100, Thermocouples, V and mA inputs. 32 bit resolution, 4GB internal memory (200 million readings), 8 digital inputs and 4 digital alarm outputs. USB to PC connection & Bluetooth wireless interface, complete with SquirrelView, AA Batteries,..
SQ851
8 Channels. Universal inputs each V/C, thermistor or thermocouple ( max 1Hz)..

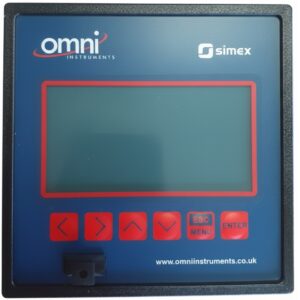

SRD-99 Data Logger Display Unit
The SRD-99 data logger is designed to record signal inputs and display current values in graphs and numeric form. The SRD-99 is equipped with 1, 4 or 8 input channels, suitable for either temperature (RTD or Thermocouples) or analogue (0/4-20mA or 0-10V) inputs across all available channels. A pulse (digital)..

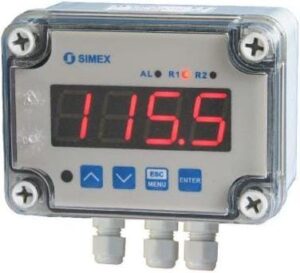

SRT-N118 Temperature Meter
SRT-N118 LED temperature meter with a wall mountable IP65 enclosure. Large 20mm, 4 digit, red LED Digital Display. Accepts PT100, PT500, PT1000 and Thermocouples (type K, J, S, T, N, R, B or E) inputs and provides a RS485 Modbus RTU output with options for an isolated current output and..
SSE232-1083-ST-HT
Ethernet data acquisition unit, 8 digital / pulse inputs. Each channel may be configured for digital state or pulse input ( max 4Hz ). Internal back up battery stores pulse count if external power is lost. Unit publishes data to .web php page. Power supply 9-26vAC or 9-30vDC..

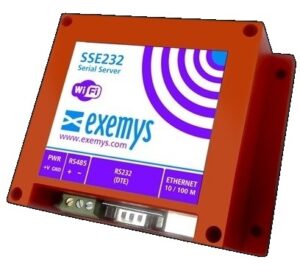

SSE232-1B0-00-LE
Transparent Serial Server. Single RS232/485/422 port. Suitable for Low-End applications...
SSE232-1C0-00-IA3-IS
Transparent Serial Server. Single Isolated RS232/485/422 port and one RJ45 connector Ethernet 10/100 Base T port. Powers supply 10-30vDC. Suitable for industrial applications...
SSE232-IA3 Industrial Serial Server
The SSE232-IA3 is an Ethernet communications devices designed to connect any serial device (RS232, RS485 or RS422) to a standard Ethernet Network. The SSE232 works as a transparent serial server to convert the serial string to an Ethernet TCP/IP or UDP/UP protocol. Units are available with a single isolated serial..
Subsea Temperature Transmitter
Subsea temperature sensor, with 316 stainless steel body suitable for external seawater pressure 400 bar, with Birns MCBH5M bulkhead connector. Accuracy 0.2% FSD...

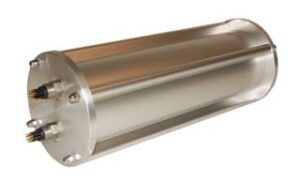

SUBSEA-AH-NB100-IL300-2C
Subsea logger housing, aluminium, suitable for immersion to 300 metres seawater ( external case pressure 30 bar ). NB100 - nominal bore 100 mm. IL300 - internal length 300 mm. 2C - fitted with subsea Subconn bulkhead connector port x 2..

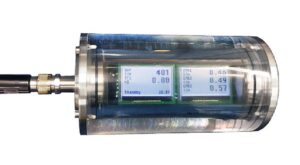

SUBSEA-DISP-HOUSING
Subsea display housing, with clear acrylic tube, internal diameter 75mm and internal length 225mm, suitable for a variety of LCD and LED indicators. With stainless steel endcaps and CRE bulkhead connector...

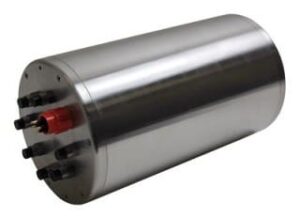

SUBSEA-HS-LGE-8C-4K
Subsea stainless steel housing, rated to immersion to 4000M seawater. Internal dimensions 200mm dia x 350mm long, fitted with 8 Subcon bulkhead connectors..
SUBSEA-LGR-HOUS-1000M
Subsea housing, clear acrylic for LEO 2 manometer, with ¼" BSP port in 1 end. Assembly suitable for immersion in 1000m of seawater...
SUBSEA-LGR-HOUS-MSR165
Subsea housing, stainless steel, for subsea logger electronics. 3000m rated..

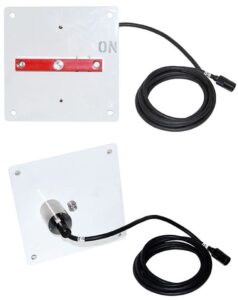

SUBSEA-SW1
Subsea switch assembly comprising of square mounting plate 200 x 200 x 8mm, 316 stainless steel, with rotating switch bar (190 x 50 x 25mm), fitted with 2 permanent magnets. Subsea housing with proximity switch mounted behind the square mounting plate. Maximum switching current 500mA at 24vDC. Fitted with Subcon..

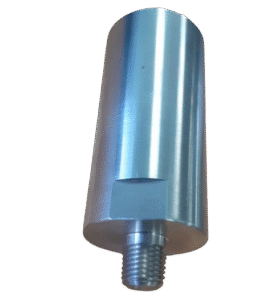

SUBSEA-TEMP-SML-0-80C-MA-1/4BSPM-MCBH5M
Subsea Temperature Sensor Housing: SML - Small Housing 39.5mm Diameter, 86.5mm Housing Length Temp Range: 0-80C - Measurement Range: 0 to 80°C Output: MA - 2-Wire 4-20mA Output Signal Process Connection: 1/4BSPM - ¼" BSP Male Thread Probe Subsea Connector: MCBH5M - 5-Pin MCBH Miniature Bulkhead Connector..
SV 4B Alarm Monitoring Unit
SV4B single channel alarm monitoring unit with 2 alarm thresholds, fault alarm, built in relays, AC / DC power supply, DIN rail mounting. When used with OLC10 or OLC100 flammable gas detector this provides a fixed monitoring and alarm system for a low cost...
SWS-W510-0000-1-3-001
Large-size (100mm high digits) simple digital panel indicator. Red LED Display shows up to 5 digits with 8 step adjustment of brightness. 24V AC/DC power supply with RS485 Modbus RTU communication. Programmable via front panel buttons or SIR-15 IR Programmer (available separately)...
TAS227060/5A
TAS227 Series fixed core current transformer. Primary current range 60A AC, secondary current range 5A. Dimensions 185 x 84 x 45mm with three 27mm diameter apertures...
TCG120 Remote Monitoring Controller
TCG120 is a remote IO control module that connects via a GSM/GPRS mobile Network. It has two digital and two analogue inputs, plus up to four 1-wire sensor support for temperature and humidity sensor. Two relay outputs for remotely switching devices (offering both normally open and normally closed wiring options)...
TCG120-4E
TCG120-4E is a remote IO control module that connects via a GSM/GPRS Mobile Network. Two Digital and Analogue Inputs, with 1-wire interface and Two Relay Outputs (NO/NC contacts). Power supply 10-28vDC...
TCG120-4G
TCG120-4G is a remote IO control module that connects via a GSM/GPRS Mobile Network. Two Digital and Analogue Inputs, with 1-wire interface and Two Relay Outputs (NO/NC contacts). Power supply 10-28vDC...
TCW242
The TCW242 Ethernet IoT module with RJ45 Ethernet Port. Four digital, four analogue inputs and 4 relay outputs with Normally Open and Normally Closed contacts. RS485 Modbus sensor Interface for up to 24 sensors. Screw terminal & RJ45 port for Teracom Modbus sensors. Power Supply 10-28vDC...
