Description

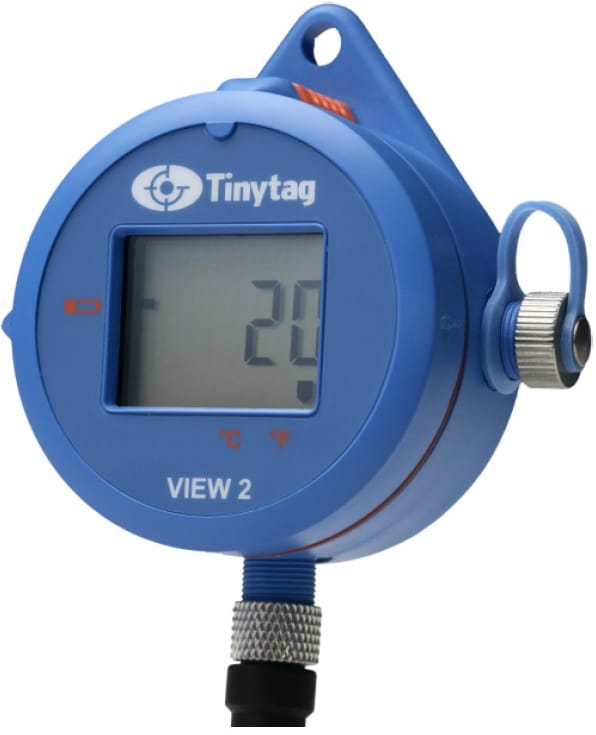

The TV-4020 Tinyview 2 is a reliable temperature data logger with a display, designed for use with external probes in a variety of applications, particularly where fast response and monitoring in challenging environments are needed. Its compliance with BS EN 12830 makes it useful in the food industry. The large range of Tinytag Thermistor probes means the logger is able to monitor temperatures in a wide range of different applications.

Features

• Temperature data logger with display
• BS EN 12830 Compliant (S; A; 1)
• LCD display of current readings
• 30,000 reading capacity
• High Accuracy
• High Reading Resolution
• Fast Data Offload
• 2 user-programmable alarms
• Low battery monitor
• User-replaceable battery

Popular Applications

• Chill cabinets and fridges
• Building condition monitoring
• Environmental monitoring
• Pharmaceutical storage

Logger Specifications		Sensor Specifications
Total Reading Capacity:	30,000 Readings	Sensor Type:	External 10K NTC Thermistor Probe
Memory Type:	Non-Volatile	Measuring Range:	-40 to 125°C (-40 to +257°F)
Display:	4 digits + indicators	Logger Resolution:	0.02°C or better
Display Modes:	°C or °F	Display Resolution:	0.1°C

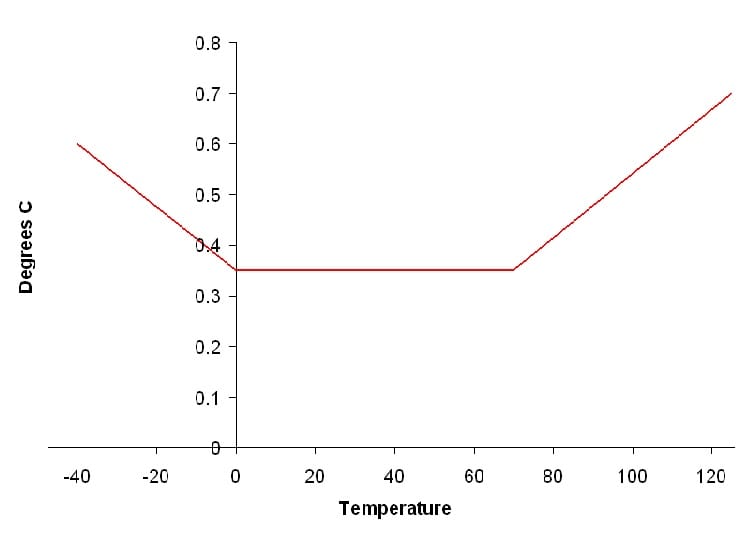

Display Refresh Rate:	Every 2 seconds	Sensor Accuracy: (Graph below is based on PB-5001 or PB-5002 probes)
Trigger Start:	Magnetic Switch
Delayed Start:	Relative/Absolute (up to 45 days)
Stop Options:	When full After n Readings Never (overwrite oldest data)
Reading Types:	Actual, Min, Max
Logging Interval:	1 sec to 10 days
Alarms:	2 fully programmable; latchable
Operational Temperature Rating:	-30 to +70°C
IP Rating:	IP65 (Splashproof)
Case Dimension (HxWxD):	85 x 77 x 35mm, 60mm diameter
Weight:	85g

The TV-4020 can be downloaded using the USB cable, Ref CAB-0007-USB. The download cable connects to the base of the logger and allows for configuration and downloading data.

This Logger can be used with any of the Tinytag Thermistor probes available.
