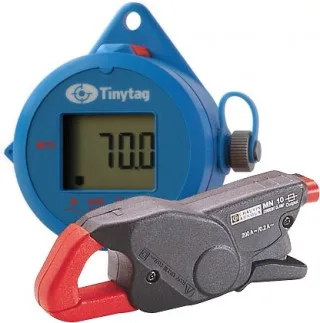

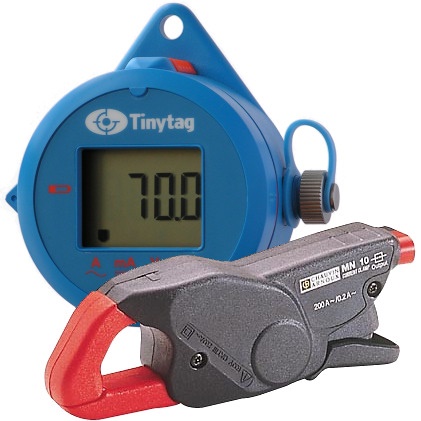

The TV-4810 measures current from 0 to 200A AC and is ideal for mains and power consumption monitoring. As well as recording data the unit has a display that shows what the unit is currently reading. The unit has an IP65 case and features high reading resolution and accuracy, a large memory, a fast offload speed and a low battery monitor. This unit is supplied with a current clamp suitable for conductor sizes up to 20mm.
Features
| Specification | |
| Memory Type | Non-volatile |
| Readings | 30,000 |
| Delayed Start | Relative / Actual (up to 45 days) |
| Stop Options | When full, After No. of Readings, Never (wrap around) |
| Reading Types | Actual, Minimum, Maximum |
| Logging Interval | 1 second to 10 days |
| Offload | While stopped or when logging in minute multiples |
| Alarms | Two, fully programmable |
| Functional Range | Display Logger: -30°C to +70°C, Current Clamp: -10°C to +55°C |
| Weight | Display/Logger: 85g Current Clamp: 180g |
The TV-4810 measures current from 0.15 to 200A AC and the display updates every 2 seconds with the current readings. This unit is supplied with a Current Clamp (ACS-0003) with 1.5m cable.
TV-4810
£350.00
ACS-5001
£85.00
ACS-6000
£10.00
SWPK-7-USB
£65.00
CAB-0007-USB
£25.00
