Description
The PB-5019 is a flat cable probe available with 1.5m or 3m cable. The probe comes with a flat cable that is designed to pass through a door seal with minimal effect. The probe ideal for monitoring inside fridge and freezers for temperature monitoring applications.
| Physical Specifications | Sensor Specifications | ||
| IP Rating: | IP66 (Splashproof) | Sensor Type: | 10K NTC Thermistor |
| Weight: | 34g | Measuring Range: | -40 to 105°C (-40 to +221°F) |

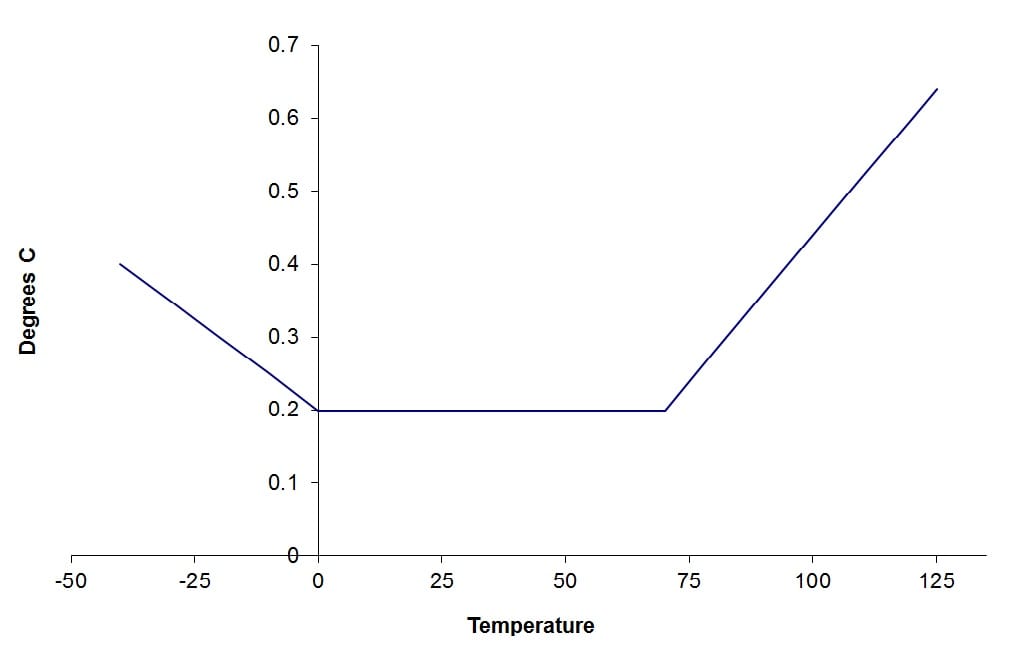

| Response Time Moving Air: | Better than 5 Mins (to 90% FSD) | Sensor Accuracy: | |
| Sheath Material: | 316 Stainless Steel |  |
|
| Sheath Temperature Rating: | -40 to +125°C (-40 to +257°F) | ||
| Cable Material: | Hyflon MFA | ||
| Cable Temperature Rating: | -40 to +125°C (-40 to +257°F) | ||
| Connector Material: | Nickel Plated Brass/Zinc Alloy | ||
| Connector Temperature Rating: | -25 to 85°C (-13 to 185°F) | ||

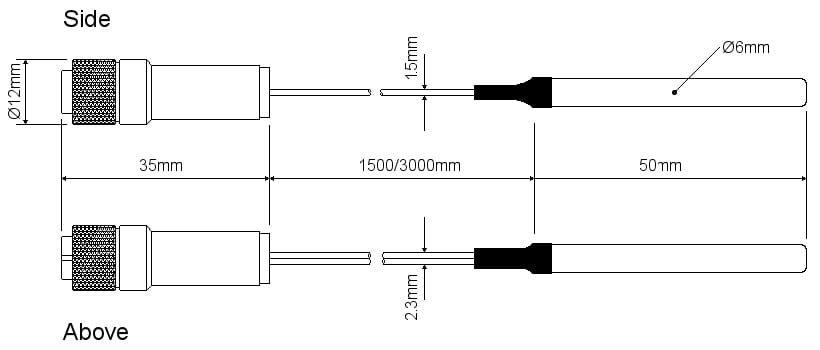

PB-5019 Dimensional Drawing
This probe is suitable for use with the following products:
| Tinytag Ultra 2 model number: | TGU-4020 and TGU-4510 |
| Tinytag Plus 2 model number: | TGP-4020, TGP-4510 and TGP-4520 |
| Tinytag View 2 model number: | TV-4020 and TV-4510 |
| Tinytag Plus Radio model numbers: | TGRF-4021, TGRF-4022 and TGRF-4024 |
| Tinytag Plus LAN model numbers: | TE-4021, TE-4022 and TE-4024 |
