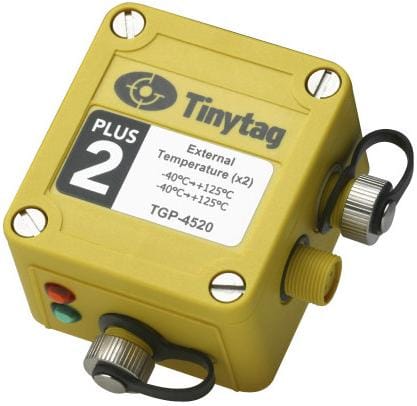

The TGP-4520 Tinytag Plus 2 data loggers include two external and connection for external probes. These loggers are ideally suited to monitor environmental temperature and/or the temperatures of different materials or surfaces in the same environment. The loggers provide accurate temperature monitoring with external Tinytag Thermistor probes. The logger will retain up to total of 32,000 readings. The TGP-4520’s are ideal for comparing ambient and process condition readings and multiple loggers may also be used together to allow the comparison of temperatures in different areas of the production, storage or locations.
Features
- Dual External Temperature Range: -40 to +125°C
- Internal memory for up to 32,000 readings
- Logging rates from 1 sec up to 10 days.
- 2 user programmable alarms
- Delayed start option (up to 45 days)
- Triggered start option
- IP68 waterproof casing
- User replaceable battery
Popular Applications
- Environmental monitoring
- Food processing and storage
- Pharmaceutical manufacture
- Logistics monitoring
- Museums and art galleries
| Logger Specifications | Sensor Specifications | ||
| Total Reading Capacity: | 32,000 Readings | Sensor Type: | External 10K NTC Thermistor Probe |
| Memory Type: | Non-Volatile | Measuring Range: | -40 to 125°C (-40 to +257°F) |
| Trigger Start: | Magnetic Switch | Reading Resolution: | 0.02°C or better |
| Delayed Start: | Relative/Absolute (up to 45 days) | Sensor Accuracy: (Graph below is based on PB-5001, PB-5002 or PB-5003 probes) | |
| Stop Options: | When full After n Readings Never (overwrite oldest data) |
 |
|
| Reading Types: | Actual, Min, Max | ||
| Logging Interval: | 1 sec to 10 days | ||
| Alarms: | 2 fully programmable; latchable | ||
| Operational Temperature Rating: | -40 to +85°C (-40 to +185°F) | ||
| IP Rating: | IP68 (Waterproof) | ||
| Case Dimension (HxWxD): | 34 x 59 x 80mm | ||
| Weight: | 110g | ||
The TGP-4520 can be downloaded using the USB cable, Ref CAB-0007-USB. The download cable connects to the base of the logger and allows for configuration and downloading data.
