Description

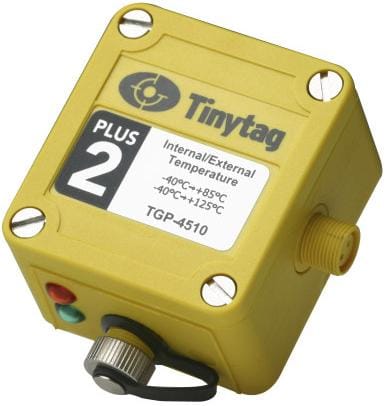

The TGP-4510 Tinytag Plus 2 data loggers include an internal and connection for an external thermistor probe. These loggers are ideally suited to monitor environmental temperature and the temperatures of materials or surfaces in the outdoor or harsh environment. The loggers provide accurate temperature monitoring with an internally mounted 10K NTC thermistor and a connector for external Tinytag Thermistor probes. The logger will retain up to total of 32,000 readings. The TGP-4510’s are ideal for comparing ambient and process condition readings. They are also widely used to help assess conditions during industrial processes, goods storage and ambient to surface temperature differences. Multiple loggers may also be used together to allow the comparison of temperatures in different areas of the production, storage or locations.
Features
- Internal Temperature Range: -40 to +85°C
- External Temperature Range: -40 to +125°C
- Internal memory for up to 32,000 readings
- Logging rates from 1 sec up to 10 days.
- 2 user programmable alarms
- Delayed start option (up to 45 days)
- Triggered start option
- Robust IP68 waterproof casing
- User replaceable battery
Popular Applications
- Environmental monitoring
- Food processing and storage
- Pharmaceutical manufacture
- Logistics monitoring
- Museums and art galleries
| Logger Specifications | |||
| Total Reading Capacity: | 32,000 Readings | Memory Type: | Non-Volatile |
| Reading Types: | Actual, Min, Max | Logging Interval: | 1 sec to 10 days |
| Delayed Start: | Relative Absolute (up to 45 days) |
Stop Options: | When full After n Readings Never (overwrite oldest data) |
| Battery: | ½AA 3.6V Lithium | IP Rating: | IP68 (Waterproof) |
| Battery Life: | Annual Replacement | Alarms: | 2 fully programmable; latchable |
| Internal Temperature Sensor Specifications | External Temperature Sensor Specifications | ||
| Reading Range: | -40 to +85°C (-40 to +185°F) | Reading Range: | -40 to +125°C (-40 to +257°F) |
| Sensor Type: | Internal 10K NTC Thermistor Sensor | Sensor Type: | External 10K NTC Thermistor Sensor |
| Response Time: | 20 mins to 90% FSD in moving air | Response Time: | Depends on probe used. |
| Resolution: | 0.01°C or better | Resolution: | 0.02°C of better |
| Accuracy: | Accuracy: | ||
 |
 |
||
The TGP-4510 can be downloaded using the USB cable, Ref CAB-0007-USB. The download cable connects to the base of the logger and allows for configuration and downloading data.
