Description

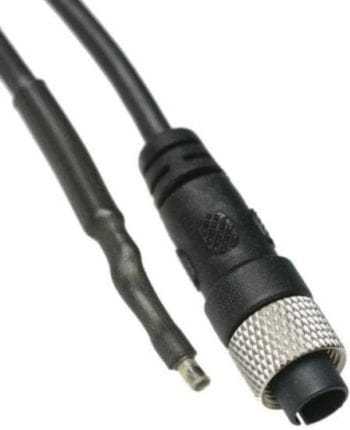

The PB-5006 is a flexible thermistor probe available with 0.5m, 1.5m, 3m or 5m silicon rubber cable. The probe includes a 40mm flexible epoxy tip that can be shaped around items to secure the probe in position. The probe has been used for monitoring temperature profiles in birds nest and other zoological temperature monitoring applications.
| Physical Specifications | Sensor Specifications | ||
| IP Rating: | IP67 (Waterproof) | Sensor Type: | 10K NTC Thermistor |
| Weight: | 40g | Measuring Range: | -40 to 125°C (-40 to +257°F) |

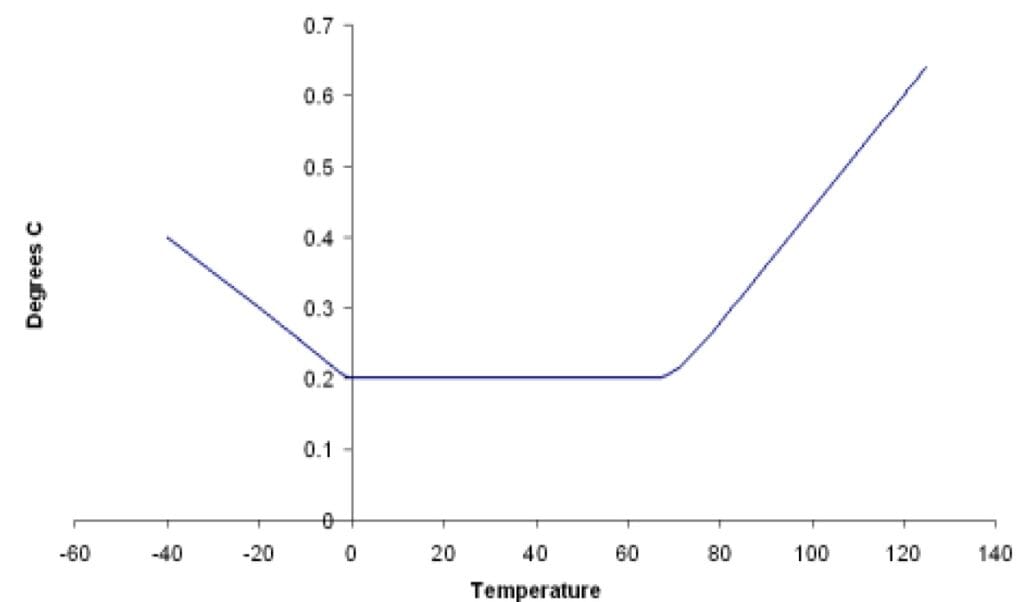

| Response Time Water: | 12 Seconds (to 90% FSD) | Sensor Accuracy: | |
| Sensor Material: | Epoxy |  |
|
| Sensor Temperature Rating: | -40 to +125°C (-40 to +257°F) | ||
| Cable Material: | Silicon Rubber | ||
| Cable Temperature Rating: | -60 to +200°C (-76 to +392°F) | ||
| Connector Material: | L-104 (TPU) | ||
| Connector Temperature Rating: | -40 to 85°C (-40 to 185°F) | ||

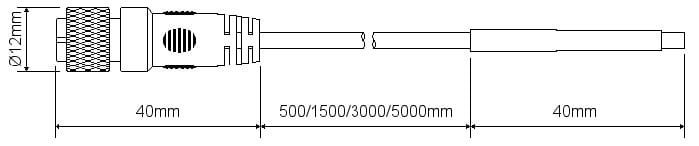

PB-5006 Dimensional Drawing
This probe is suitable for use with the following products:
| Tinytag Ultra 2 model number: | TGU-4020 and TGU-4510 |
| Tinytag Plus 2 model number: | TGP-4020, TGP-4510 and TGP-4520 |
| Tinytag View 2 model number: | TV-4020 and TV-4510 |
| Tinytag Plus Radio model numbers: | TGRF-4021, TGRF-4022 and TGRF-4024 |
| Tinytag Plus LAN model numbers: | TE-4021, TE-4022 and TE-4024 |
