Description

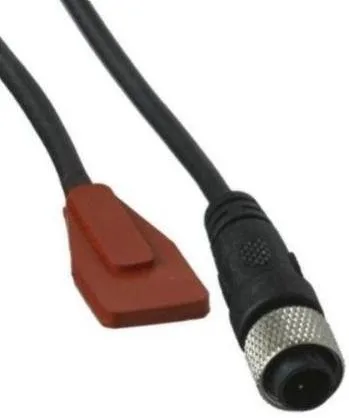

The PB-5003 is a surface mounted temperature probe available with 1.5m, 3m or 5m silicon rubber cable. The probe is mounted with an adhesive (3M9731) pad and is suitable for monitoring temperature ranges from -40 to +125°C. It is suitable for a variety of moderate temperature range applications, where surface temperatures are being monitored. Can be ideal for monitoring surface cooling or warming profiles, eg radiators, etc.
| Physical Specifications | Sensor Specifications | ||
| IP Rating: | IP68 (Waterproof) | Sensor Type: | 10K NTC Thermistor |
| Weight: | 40g | Measuring Range: | -40 to 125°C (-40 to +257°F) |
| Response Time Water: | 30 Seconds (to 90% FSD) | Sensor Accuracy: | |
| Pad Material: | Silicone |  |
|
| Pad Adhesive: | 3M9731 Adhesive | ||
| Pad Temperature Rating: | -40 to +125°C (-40 to +257°F) | ||
| Cable Material: | Silicon Rubber | ||
| Cable Temperature Rating: | -60 to +200°C (-76 to +392°F) | ||
| Connector Material: | L-104 (TPU) | ||
| Connector Temperature Rating: | -40 to 85°C (-40 to 185°F) | ||
PB-5003 Dimensional Drawing
This probe is suitable for use with the following products:
| Tinytag Ultra 2 model number: | TGU-4020 and TGU-4510 |
| Tinytag Plus 2 model number: | TGP-4020, TGP-4510 and TGP-4520 |
| Tinytag View 2 model number: | TV-4020 and TV-4510 |
| Tinytag Plus Radio model numbers: | TGRF-4021, TGRF-4022 and TGRF-4024 |
| Tinytag Plus LAN model numbers: | TE-4021, TE-4022 and TE-4024 |
