Description

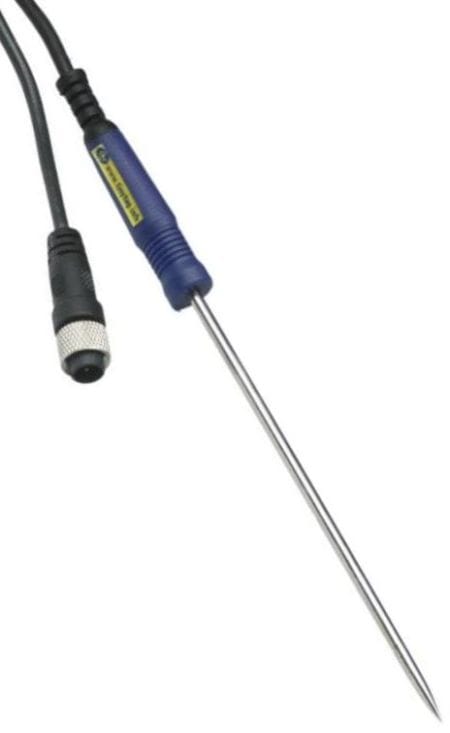

The PB-5002 is a fast response Stainless Steel temperature probe available with 1.5m, 3m or 5m silicon rubber cable. The fast response thermistor probe is suitable for monitoring temperature ranges from -40 to +125°C, where a faster response is required, It is suitable for a variety of moderate temperature range applications, where temperatures change rapidly. Can be ideal for monitoring Endothermic reactions, like dissolving Ammonia Nitrate salts in water (as used in cold packs), or Exothermic reactions, like sodium acetate solutions, used in hand warmers. The Stainless Steel probe should be OK for low concentrations, or monitoring the outside of packs.
| Physical Specifications | Sensor Specifications | ||
| IP Rating: | IP68 (Waterproof) | Sensor Type: | 10K NTC Thermistor |
| Weight: | 45g | Measuring Range: | -40 to 125°C (-40 to +257°F) |

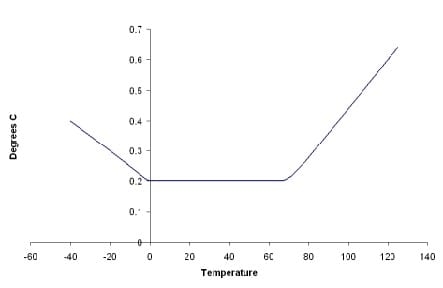

| Response Time Water: | 10 Seconds (to 90% FSD) | Sensor Accuracy: | |
| Probe Material: | 316 Stainless Steel |  |
|
| Probe Temperature Rating: | -40 to +125°C (-40 to +257°F) | ||
| Handle Material: | Evoprene G 978 & PP7064L1 | ||
| Handle Temperature Rating: | †-40 to +130°C (-40 to +266°F) | ||
| Cable Material: | Silicon Rubber | ||
| Cable Temperature Rating: | -60 to +200°C (-76 to +392°F) | ||
| Connector Material: | L-104 (TPU) | ||
| Connector Temperature Rating: | -40 to 85°C (-40 to 185°F) | ||
†Handle may become brittle below -20°C (-4°F).

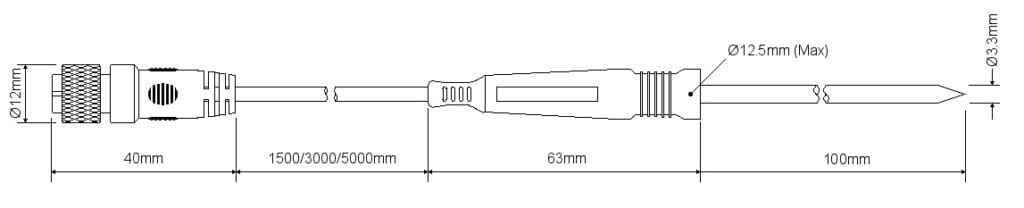

PB-5002 Dimensional Drawing
This probe is suitable for use with the following products:
| Tinytag Ultra 2 model number: | TGU-4020 and TGU-4510 |
| Tinytag Plus 2 model number: | TGP-4020, TGP-4510 and TGP-4520 |
| Tinytag View 2 model number: | TV-4020 and TV-4510 |
| Tinytag Plus Radio model numbers: | TGRF-4021, TGRF-4022 and TGRF-4024 |
| Tinytag Plus LAN model numbers: | TE-4021, TE-4022 and TE-4024 |
