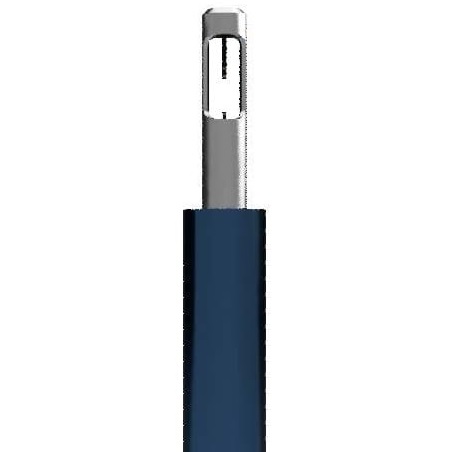

The ThermoAir 20 Directional Hot Wire Anemometer is a directional wind sensor suitable for monitoring low air flows. The Hot Wire Anemometer is able to detect much lower air flow velocities than the vane anemometer and probes are available with velocity range of 0-1m/s and 0-5m/s. Providing a clear low flow value to be viewed on the MC 4.0 handheld display. The directional ThermoAir 20 anemometers enclose the sensor inside a protective probe that ensures it will only take air flow readings in one direction. Helping ensuring that readings can be used to help determine the source of even the smallest drafts. Ideal for use in open air, or clean air environments, eg nursing homes or public buildings.
The key benefit of the ThermoAir 20 directional design is its ability to isolate and identify the precise origin point of an air current. By utilising a portable handheld display, the sensor can be taken to the source, wherever it is. With the sensor enclosed within a protective shroud, it limits to flows from a single axis, the user can conduct systematic, high-confidence sweep tests across building envelopes, window frames, or ductwork joints. The probe can be rotated until the highest reading is shown on the display. Showing the operator definitively that the air is flowing from the direction the probe is showing, making the ThermoAir 20 Directional Anemometer an invaluable tool for root-cause analysis in diagnostic applications.
This capability is essential for effective draft and leakage control in energy conservation and building maintenance. Rather than just confirming that a “draft exists,” the directional feature allows the technician to pinpoint the exact crevice or seal failure causing the air intrusion. This translates to efficient maintenance by eliminating guesswork and ensuring repair efforts are focused on the actual source, which is especially important for maintaining the strict climate control and cleanliness required in sensitive, modern structures.
| Display: | 3.2″ TFT Display |
| Unit of Measure:
|
Flow: m/s, km/h, ft/s. mph Volume: Flow: m³h, l/min, m³/s, cfm Humidity: %RH Temperature: °C, F, °K Pressure: Pa, mBar, mm H20, PSI, VOC, CO2 and PM1: ppm |
| Logger: | Internal 4GB memory, capacity 1 million readings |
| Power Supply: | Lithium Polymer Battery |
| Battery Life: | Approx 15 Hours |
| Case Dimensions: | 168 x 68 x 38mm |
| IP Rating: | IP67 |
| Weight: | Approx 300g |
| Operating Temp: | 0 to 60°C |
| Humidity: | 0-99%RH |
| Protective Case: | Removable Red Rubber Case. Also available in Blue, Orange or Green. |
| Flow Measuring Range: |
0.015 to 1 m/s or 0.015 to 5m/s |
|
| Head Size: | 8mm | |
| Shaft Diameter: | 15mm | |
| Probe Length: | 300mm | |
| Angle of Flow: | ±30° | |
| Cable Length: | 1.5m (more on request) | |
400.0410
£1,365.32
400.0411
£1,261.40
400.0412
£1,261.40
400.0413
£1,261.40
Need help with your products or have a question for us on our custom systems? Use the form below to send us a message and our experts will be in touch to help.
