Description

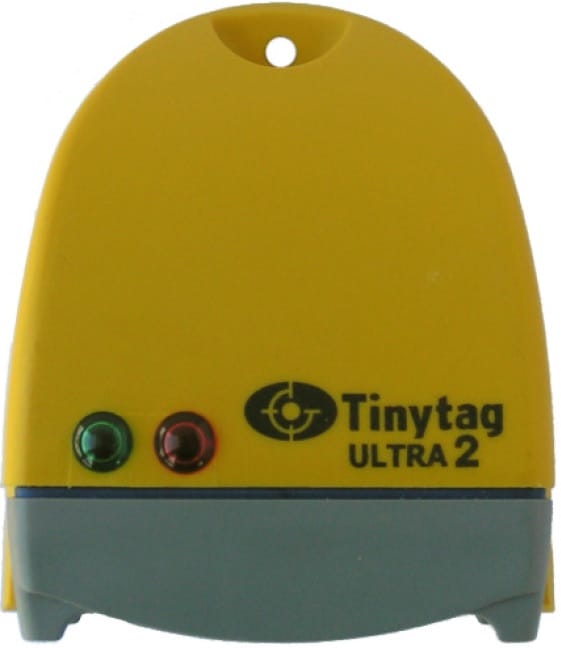

The TGU-4017 Tinytag Ultra 2 data loggers are ideally suited to monitor indoor temperatures. The loggers provide accurate temperature monitoring with an internally mounted 10K NTC thermistor and will retain up to 32,000 readings. The TGU-4017’s are ideal for monitoring the efficiency of heating, ventilation and air conditioning in offices, workplaces and domestic properties. They are also widely used to help assess the performance of building materials such as insulation, and help evaluate ‘before and after’ conditions in environmental refit projects. Multiple loggers may also be used together to build up a temperature map of warehouses or offices to help improve heating, ventilation or provide optimal locations for certain items in warehouses.

Features

• Temperature data logger
• 32,000 reading capacity
• High accuracy
• High reading resolution
• Fast data offload
• Splash-proof case
• Low battery monitor
• User-replaceable battery

Popular Applications

• Office and housing monitoring
• Pharmaceutical manufacture
• Dry food storage
• Museum display and repository
• Incubators

Physical Specifications		Sensor Specifications
Total Reading Capacity:	32,000 Readings	Sensor Type:	Internal 10K NTC Thermistor Sensor
Memory Type:	Non-Volatile	Measuring Range:	-40 to +85°C (-40 to +185°F)
Trigger Start:	Magnetic Switch	Reading Resolution:	0.01°C or better
Delayed Start:	Relative/Absolute (up to 45 days)	Response Time:	25 mins to 90% FSD in moving air

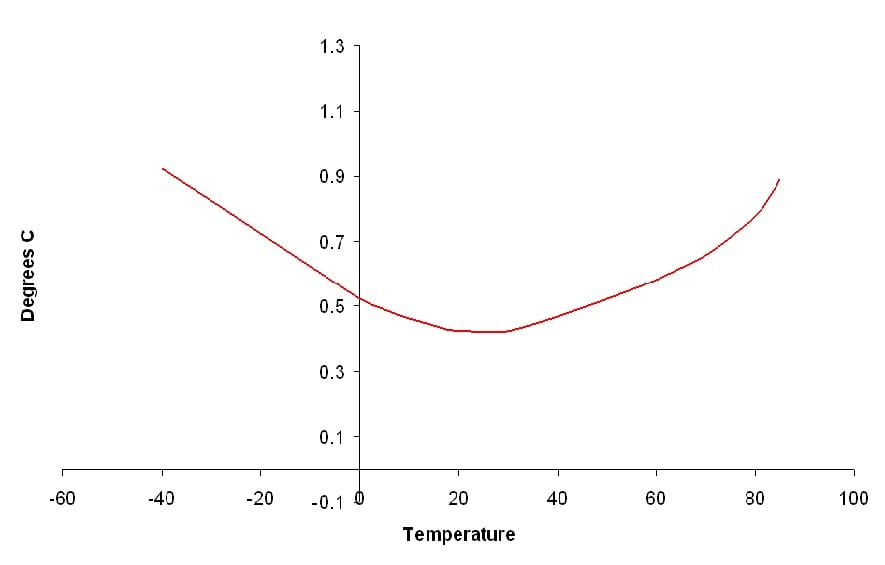

Stop Options:	When full After n Readings Never (overwrite oldest data)	Sensor Accuracy:
Reading Types:	Actual, Min, Max
Logging Interval:	1 sec to 10 days
Alarms:	2 fully programmable; latchable
Operational Temperature Rating:	-40 to +85°C (-40 to +185°F)
IP Rating:	IP54 (Splashproof)
Case Dimension (HxWxD):	72 x 60 x 33mm
Weight:	55g

The TGU-4017 can be downloaded using the USB cable, Ref CAB-0007-USB. The download cable connects to the base of the logger and allows for configuration and downloading data.
