Description

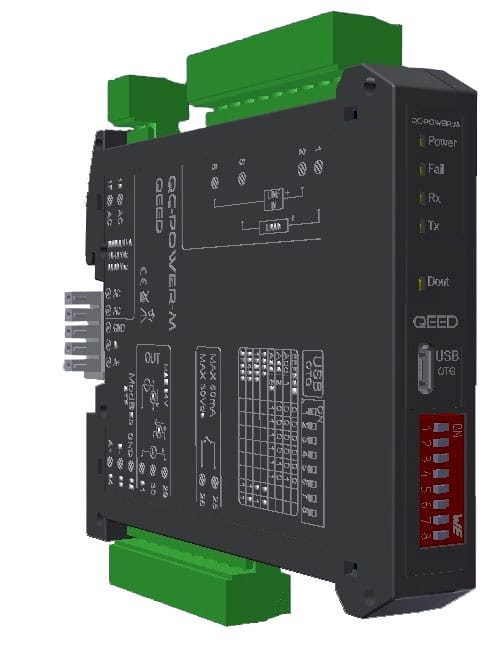

The QA-POWER-M is a single phase network power analyser with TRMS (true RMS) function. It is USB configurable, with 4-way galvanic isolation The input range is 1000 vDC / 600VAC, 10A AC/DC. The unit features universal power supply AC/DC, programmable alarm contact, RS485 Modbus output, and a 4-20mA / 0-10vDC output.

The QA-POWER-M also has a data logging function and can record input values and save the data to a USB pen drive memory stick. The logging interval can be set from 1 second to 18 hours. Stored data can be downloaded from the memory stick using the free Windows software supplied and exported to MS Excel, etc. The logger has a Real Time Clock.

Features

• INPUT
  • VOLTAGE: Up to 1000vDC / 600vAC fully configurable via USB;
  • CURRENT: Up to 10 A AC/DC direct (more by using external CT).
• OUTPUT
  • CURRENT: 0…20mA programmable, max load 600 ohm;
  • VOLTAGE: 0…10 V programmable, min load resistence 2kohm.
  • RS485 MODBUS: bus connection on the basis of the module or terminal, dip-switch for setting address and baudrate.
  • CONTACT OUTPUT: Optomos contact, programmable N.O. alarm contact by free interface software FACILE QA-POWER, retransmission or storage

Specifications

• POWER SUPPLY : 10..40vDC, 20-28vAC, 50-60 Hz
• ABSORPTION: Maximum 2,5 VA
• PROTECTION INDEX IP20
• ACCURACY: 0,5% F.S.
• MEASURE : Irms, Vrms, Watt, Var, Va, Vpk, Ipk, Frequency, Cosφ, Energy bidirectional, THD
• WORKING FREQUENCY : DC or 1…400 Hz
• ISOLATION: 4kV input, 1.5kV between output, RS485 and power supply.
• MOUNTING DIN rail mounting with removable terminals, RS485 bus and Supply connection ready on the base of module
• CONNECTIONS : Removable terminals 5,08mm
• CE STANDARDS: EN61000-6-4/2006 + A1 2011; EN64000-6-2/2005 ;EN61010-1/2010
• DIMENSIONS 17,5x 100x 112 mm (terminal excluded)
• DATA LOGGER : Non-volatile memory. Log on USB OnTheGo port by Pen Drive stick memory. RTC Real Time Clock integrated allows you to manage the log with date and time.
• CONFIGURATION: By free software FACILE QA-POWER-M to configure all of the conversion parameters like span, zero, alarm contact and log via USB port or via RS485. Dip-switch for setting modbus address and baudrate.
