Description

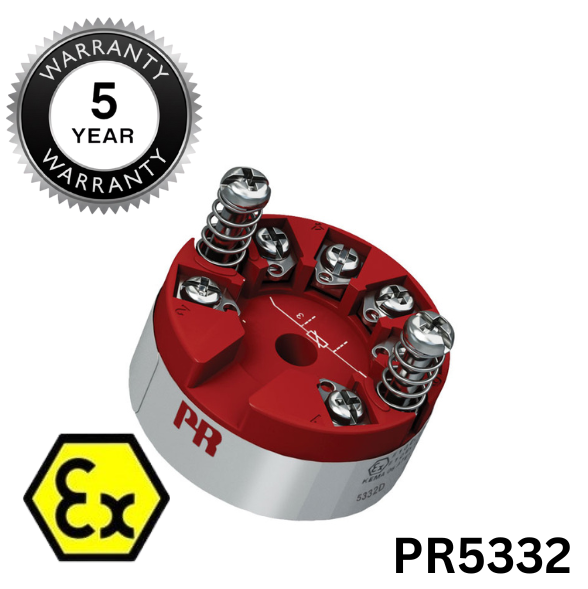

The PR 5332 is a cost-effective and dedicated temperature transmitter, designed for high-accuracy RTD and resistance measurement. It is the perfect choice for applications where you need reliable and precise temperature readings without the added complexity of a universal input. Its specialised function makes it a streamlined solution for new installations and a smart option for PT100 or PT1000 temperature measurements.

Dedicated Input Capability

• RTD Temperature Measurement: Convert signals from a variety of RTDs (PT100, PT1000, Ni100, Ni1000) to a standard 4-20mA output with exceptional accuracy. The PR 5332 supports 2-, 3-, and 4-wire RTD connections, offering flexible and reliable installation options.
• Resistance Conversion: Accurately convert linear resistance changes—from devices like potentiometers or Ohmic level sensors—into a standard 4-20mA signal.

Features

• Specialised and Cost-Effective: By focusing solely on RTD and resistance inputs, the PR 5332 offers a high-performance solution at a lower cost than a universal transmitter. It’s an intelligent choice for large-scale projects or applications where you don’t require the added functionality of a universal device.
• High Measurement Accuracy: With an accuracy of better than 0.05% of the selected range, the PR 5332 provides trustworthy readings for critical process control, particularly in high-precision applications like pharmaceutical or laboratory environments.
• PC-Programmable: Configuration is fast and easy using the same intuitive PR 5909 Loop Link communications interface. Set up the unit in minutes for any supported RTD or resistance application.
• Sensor Error Detection (NAMUR NE43): The unit continuously monitors for sensor failures (e.g., short or open circuits). You can program the output to a specific fail-safe value (e.g., 3.5mA or 23mA) to provide an immediate and clear alert to operators.
• Durable & Compact Design: Designed for DIN form B sensor head mounting, its compact size fits easily into standard enclosures, while its robust construction ensures long-term reliability.
• 5 Year Warranty: 5 Year Warranty on all Omni Instruments Supplied PR 5332 Transmitters. Warranty covers defects in construction, material, or production.

Specification

Options

If required, Omni Instruments will program a PR 5332 to your specific requirements. Please contact us for details.
