Description

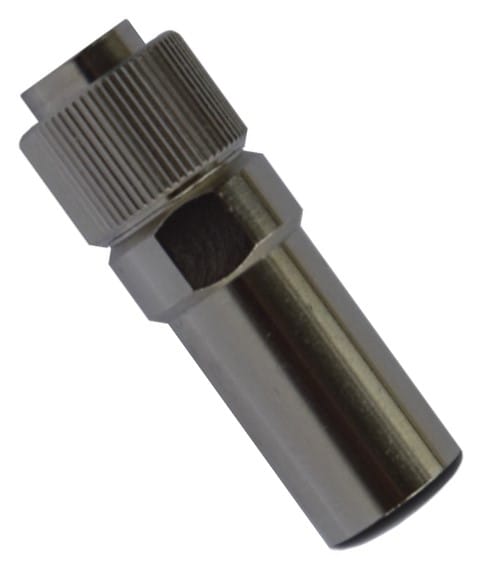

The PB-5010 is a compact thermistor sensor that can be attached to the Tinytag Data Logger. The probe can be used with the CAB-0038-XM extension cable.
| Physical Specifications | Sensor Specifications | ||
| IP Rating: | IP68 (Waterproof) | Sensor Type: | 10K NTC Thermistor |
| Weight: | 13g | Measuring Range: | -40 to 85°C (-40 to +185°F) |

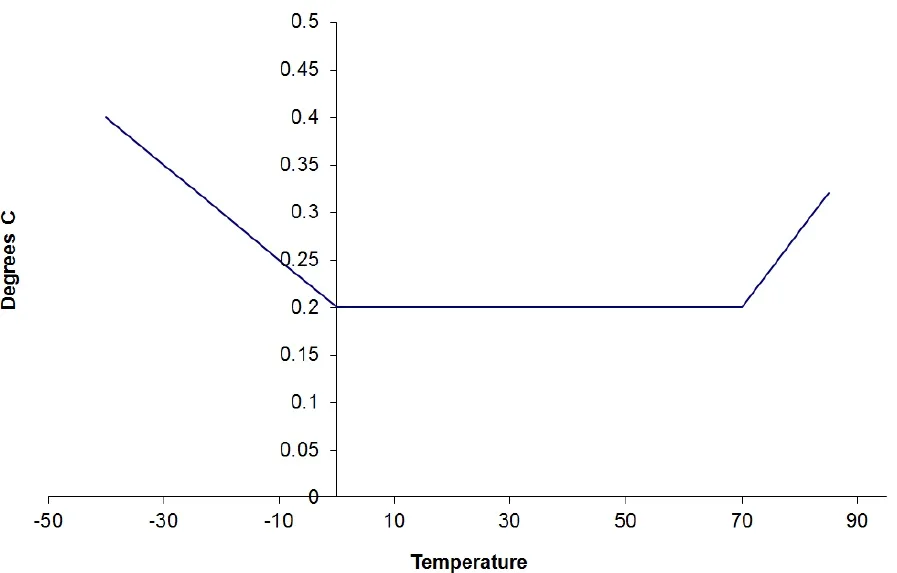

| Response Time Moving Air: | 25 Mins (to 90% FSD) | Sensor Accuracy: | |
| Connector Temperature Rating: | -40 to 85°C (-13 to 185°F) |  |
|
PB-5010 Dimensional Drawing
This probe is suitable for use with the following products:
| Tinytag Ultra 2 model number: | TGU-4020 and TGU-4510 |
| Tinytag Plus 2 model number: | TGP-4020, TGP-4510 and TGP-4520 |
| Tinytag View 2 model number: | TV-4020 and TV-4510 |
| Tinytag Plus Radio model numbers: | TGRF-4021, TGRF-4022 and TGRF-4024 |
| Tinytag Plus LAN model numbers: | TE-4021, TE-4022 and TE-4024 |
