Description
The PB-5009-0M6 is a highly flexible flying lead thermistor probe available with 0.6m PVDF cable. The thermistor probe is suitable for monitoring temperature ranges from -40 to +125°C and ideal for monitoring pipework temperature profiles in very confined places. The probe can be wrapped around hot or cold pipe and also air conditioning or refrigeration systems. Can be ideal for monitoring pipework, highlight temperature changes before pipes freeze or compressors overheat on air conditioning systems.
| Physical Specifications | Sensor Specifications | ||
| IP Rating: | IP67 (Waterproof) | Sensor Type: | 10K NTC Thermistor |
| Weight: | 16g | Measuring Range: | -40 to 125°C (-40 to +257°F) |

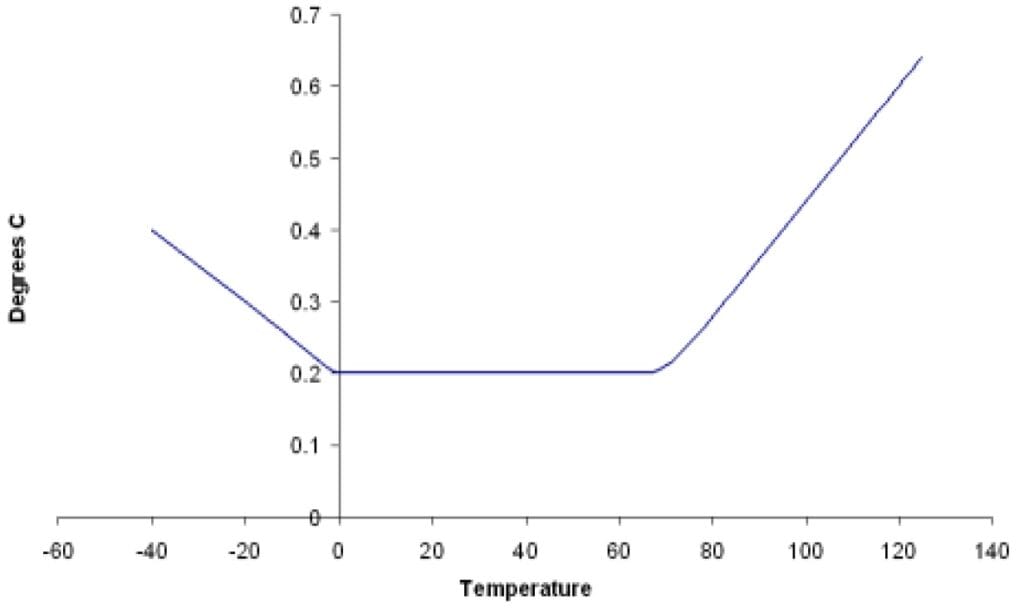

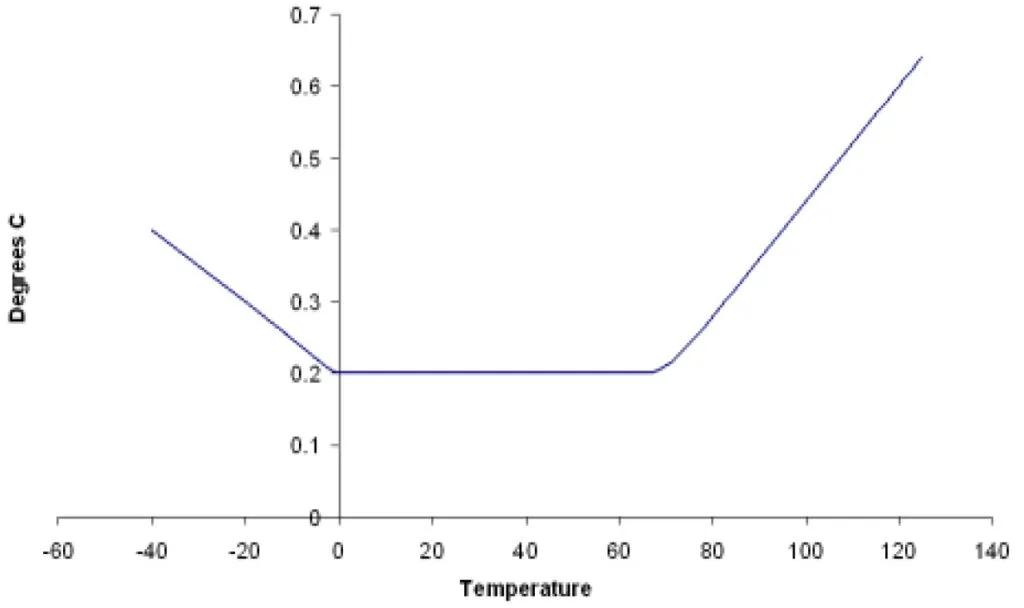

| Response Time Water: | Better than 10 Seconds (to 90% FSD) | Sensor Accuracy: | |
| Sensor Material: | Epoxy |  |
|
| Probe Temperature Rating: | -40 to +125°C (-40 to +257°F) | ||
| Cable Material: | PVDF | ||
| Cable Temperature Rating: | -40 to +125°C (-40 to +257°F) | ||
| Connector Material: | Nickel Plated Brass/Zinc Alloy | ||
| Connector Temperature Rating: | -25 to 85°C (-13 to 185°F) | ||

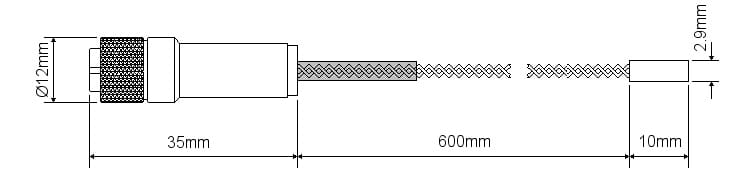

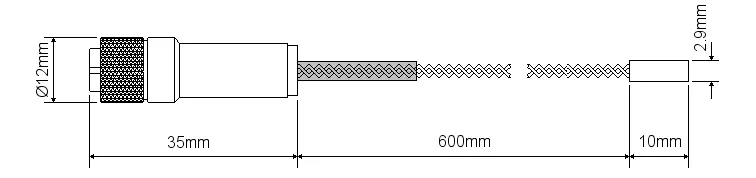

PB-5009 Dimensional Drawing
This probe is suitable for use with the following products:
| Tinytag Ultra 2 model number: | TGU-4020 and TGU-4510 |
| Tinytag Plus 2 model number: | TGP-4020, TGP-4510 and TGP-4520 |
| Tinytag View 2 model number: | TV-4020 and TV-4510 |
| Tinytag Plus Radio model numbers: | TGRF-4021, TGRF-4022 and TGRF-4024 |
| Tinytag Plus LAN model numbers: | TE-4021, TE-4022 and TE-4024 |
