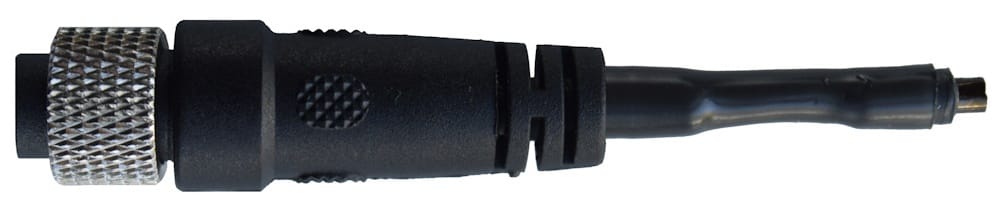

The PB-5007-0M025 is ideal for measuring temperatures were there is limited space and a fast response is required. The Epoxy temperature probe comes with just 25mm cable and 5mm diameter probe. The thermistor probe is suitable for monitoring temperature ranges from -40 to +85°C and for a variety of moderate temperature range applications, from monitoring of ambient temperatures to temperature of chilled or warmed products.
| Physical Specifications | Sensor Specifications | ||
| IP Rating: | IP67 (Waterproof) | Sensor Type: | 10K NTC Thermistor |
| Weight: | 15g | Measuring Range: | -40 to 85°C (-40 to +185°F) |

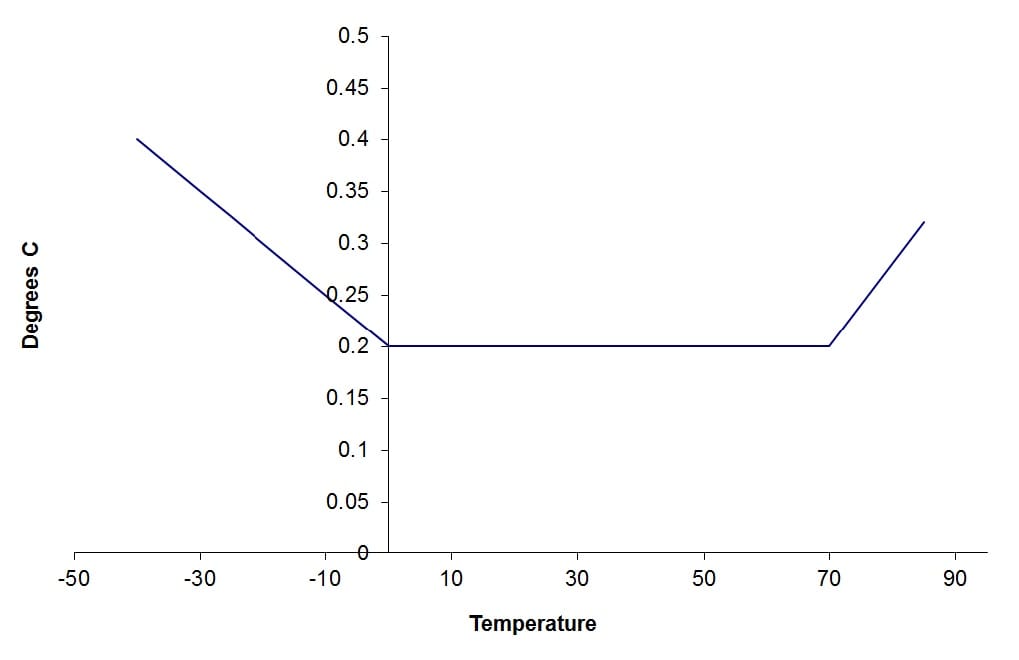

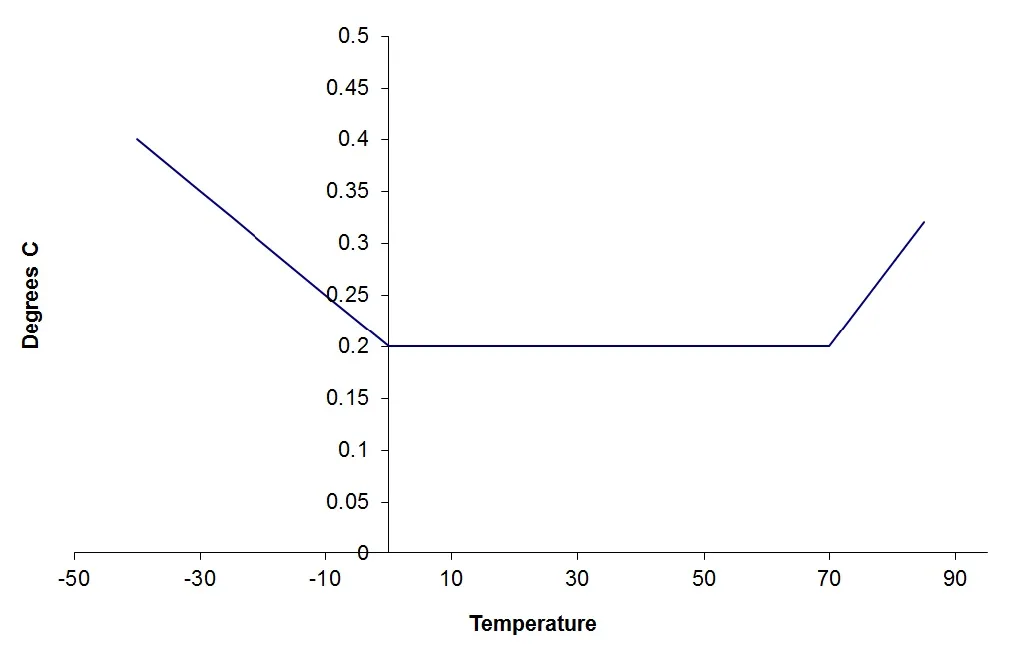

| Response Time Water: | 12 Seconds (to 90% FSD) | Sensor Accuracy: | |
| Sensor Material: | Epoxy |  |
|
| Sensor Material Temp Rating: | -40 to +85°C (-40 to +185°F) | ||
| Cable Material: | Silicon Rubber | ||
| Cable Temperature Rating: | -60 to +85°C (-76 to +185°F) | ||
| Connector Material: | L-104 (TPU) | ||
| Connector Temperature Rating: | -40 to 85°C (-40 to 185°F) | ||
PB-5007 Dimensional Drawing
This probe is suitable for use with the following products:
| Tinytag Ultra 2 model number: | TGU-4020 and TGU-4510 |
| Tinytag Plus 2 model number: | TGP-4020, TGP-4510 and TGP-4520 |
| Tinytag View 2 model number: | TV-4020 and TV-4510 |
| Tinytag Ultra Radio model numbers: | TR-3021 |
| Tinytag Plus Radio model numbers: | TGRF-4021, TGRF-4022 and TGRF-4024 |
| Tinytag Plus LAN model numbers: | TE-4021, TE-4022 and TE-4024 |
