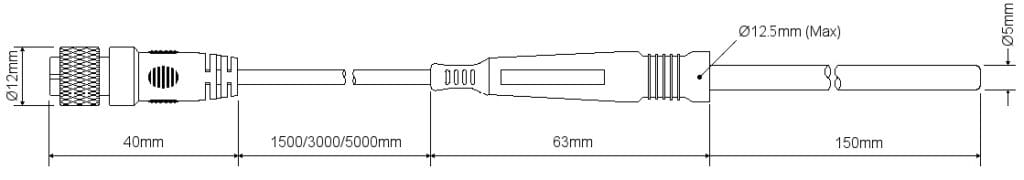

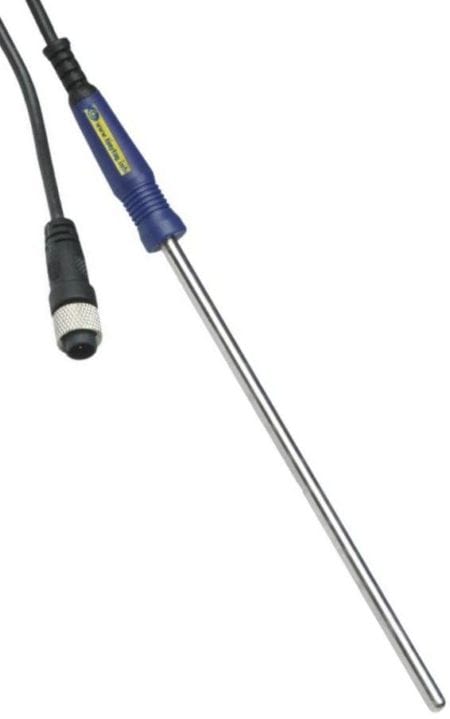

Standard Thermistor Probe with moulded handle and connector (IP68 rated). The stainless steel probe is 150mm long and 5mm in diameter with a 1.5m cable. Temperature range -40 to 125°C with a 15 second response time in water.
£45.00
The PB-5001-1M5 is a general purpose Stainless Steel temperature probe with 1.5m silicon rubber cable. The thermistor probe is suitable for monitoring temperature ranges from -40 to +125°C and for a variety of moderate temperature range applications, from monitoring of ambient temperatures to temperature of chilled or heated products. Can be ideal for monitoring water being boiled in a container and can be perfect for students.
| Physical Specifications | Sensor Specifications | ||
| IP Rating: | IP68 (Waterproof) | Sensor Type: | 10K NTC Thermistor |
| Weight: | 55g | Measuring Range: | -40 to 125°C (-40 to +257°F) |

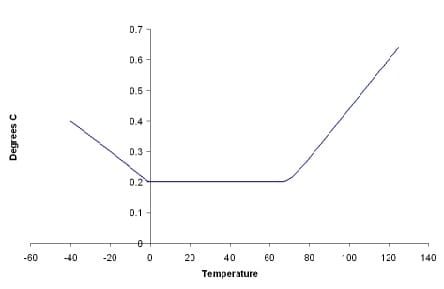

| Response Time Water: | 15 Seconds (to 90% FSD) | Sensor Accuracy: | |
| Probe Material: | 316 Stainless Steel |  |
|
| Probe Temperature Rating: | -40 to +125°C (-40 to +257°F) | ||
| Handle Material: | Evoprene G 978 & PP7064L1 | ||
| Handle Temperature Rating: | †-40 to +130°C (-40 to +266°F) | ||
| Cable Material: | Silicon Rubber | ||
| Cable Temperature Rating: | -60 to +200°C (-76 to +392°F) | ||
| Connector Material: | L-104 (TPU) | ||
| Connector Temperature Rating: | -40 to 85°C (-40 to 185°F) | ||
†Handle may become brittle below -20°C (-4°F).
| Tinytag Ultra 2 model number: | TGU-4020 and TGU-4510 |
| Tinytag Plus 2 model number: | TGP-4020, TGP-4510 and TGP-4520 |
| Tinytag View 2 model number: | TV-4020 and TV-4510 |
| Tinytag Plus Radio model numbers: | TGRF-4021, TGRF-4022 and TGRF-4024 |
| Tinytag Plus LAN model numbers: | TE-4021, TE-4022 and TE-4024 |
