HYGROCLIP 2. Stainless Steel Industrial Probes

Stainless steel cable mounted HygroClip2 100mm probe for measurements in industrial applications where the extra robustness of a stainless steel probe is essential. Typical applications include the food and pharmaceutical industry, or very high temperature applications. The probe is supplied with a metal sensor protection cage, that can be fitted with a range of filters to protect from high air velocity, dust and other contaminants.

Need help finding the right product?

Description

Features

  • Measures relative humidity, temperature and dew/frost point.
  • Use as a reference for system validation.
  • Temperature range -100°C up to +200°C
  • Humidity range 0-100%RH
  • UART interface and freely scalable analog signals 0-1V
  • Standard scaling 0-1V = 0-100% RH & -40 to 60°C
  • Probe material: Stainless Steel 1.4305
  • Probe with ‘standard’ adjustment profile, factory adjustment certificate



Specifications

Product Ref HC2A-IM102-M HC2A-IM302-M HC2A-IM305-M
Type Industrial probe of chrome nickel steel
Ranges Temp = -100°C to +200°C & Humidity = 0-100%RH
Adjustment At 23°C and 10, 35, 80%RH
Accuracy ±0.8%RH/±0.1 K/Response time τ 63: without filter < 15 s
Cable Length 2m 2m 5m

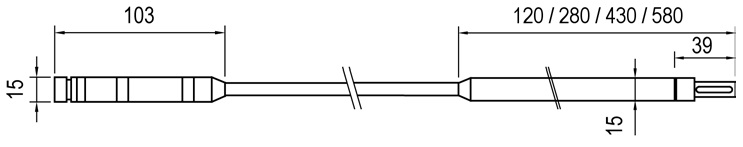

Probe Length 120mm 280mm 280mm
Filter Carrier SP-MSB15 (order filter separately.)

Filter Options

SPA-PE – Polyethylene Filter Sleeve (Pore size 40-50µm)

SPA-WM – Wire Mesh Filter Sleeve (Pore size 10µm)

SPA-PTFE – Teflon Filter Sleeve (Pore size 10µm)

SPA-SSS – Sinter Steel Filter with Carrier (Pore size 25µm)

Product

Ref

Price

Product Description

HC2A-IM102-M

£1,162.00

HygroClip 2. HC2A-IM102-M Stainless Steel Industrial Probe. Range 0-100%RH and -100 to +200°C, Accuracy ±0.8% RH, ±0.1°C. 15mm diameter PPS Probe with Stainless Steel 1.4301 tip with Hygromer HT-1 Sensor, 86mm (130mm with filter carrier) probe length and 2m cable to a 7 pin UART interface. Power Supply 3.3vDC ±0.1V @ 4.5mA. Two 0-1V Outputs for °C and %RH. Not suitable for use with 2-Wire Transmitters.

HC2A-IM302-M

£1,251.00

HygroClip 2. HC2A-IM302-M Stainless Steel Industrial Probe. Range 0-100%RH and -100 to +200°C, Accuracy ±0.8% RH, ±0.1°C. 15mm diameter PPS Probe with Stainless Steel 1.4301 tip with Hygromer HT-1 Sensor, 236mm (280mm with filter carrier) probe length and 2m cable to a 7 pin UART interface. Power Supply 3.3vDC ±0.1V @ 4.5mA. Two 0-1V Outputs for °C and %RH. Not suitable for use with 2-Wire Transmitters.

HC2A-IM305-M

£1,440.00

HygroClip 2. HC2A-IM302-M Stainless Steel Industrial Probe. Range 0-100%RH and -100 to +200°C, Accuracy ±0.8% RH, ±0.1°C. 15mm diameter PPS Probe with Stainless Steel 1.4301 tip with Hygromer HT-1 Sensor, 236mm (280mm with filter carrier) probe length and 5m cable to a 7 pin UART interface. Power Supply 3.3vDC ±0.1V @ 4.5mA. Two 0-1V Outputs for °C and %RH. Not suitable for use with 2-Wire Transmitters.

SPA-SS

£59.00

Sintered Steel Filter Carrier. Suitable for HC2A-IC, HC2A-IM and HC2A-IE Probes. Temperature Range -100-200°C.

SPA-SS-PTFE

£89.00

Stainless Steel 1.4301 Filter Carrier and White PTFE Filter with 10µm size pores. Suitable for HC2A-IC, HC2A-IM and HC2A-IE Probes. Temperature Range -100 to +200°C
