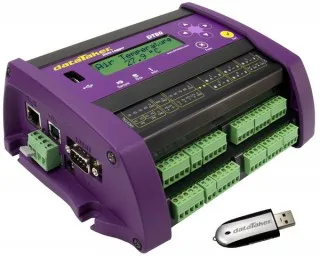

The Datataker DT80 Series 4 data loggers are a standalone data logger with 5-15 analogue inputs (up to 10 isolated inputs), 8 digital I/Os and 2 serial ports. CEM-20 modules allow the analogue inputs to increase to up to 300 channels. Internal memory for up to 10 million readings, expandable via USB port (approx 90,000 readings per MB. Serial, USB and Ethernet ports available on the DT80 allowing SDI-12, Modbus (Slave and Master), TCP/IP, FTP, HTTP, XML, SMTP or NTP comms. Programmable using internal web server and web browser or command interface window. Dimensions 180 x 137 x 65mm, weight 1.5Kg.
Connect an array of sensors through the versatile Analog and digital channels, high-speed counter inputs, phase encoder inputs and programmable serial sensor channels. Temperature, voltage, current, 4-20mA loops, resistance, bridges, strain gauges, frequency, digital, serial and calculated measurements can all be scaled, logged and returned in engineering units or within statistical reporting. Set up sampling, logging, alarm and control tasks to suit your own requirements while interfaces for smart sensors, GPS and other intelligent devices expand the DT80 flexibility.
With the standard unit able to store up to 10 million data points (expandable) you can log as much or as little as you need. Overwrite or stop logging once allocated memory is full, archive data on alarm event, copy to USB memory or transfer via FTP, the choice is yours.
Communications features include RS232, USB and Ethernet, connect to the DT80 locally, remotely through a modem or over the Internet. The web interface allows users to configure the DT80, access logged data and see current measurements as mimics or in a list using a web browser. FTP provides data to your office over the internet or mobile phone network, without the need for polling or specific host software.
dEX 2.0 is the latest update of the software platform for series 3 & 4 Datataker data loggers. It allows you to configure your sensors easily and manage you logger network in real time. You can edit your code manually to a connected logger or in offline mode, or you can use the intuitive interface to quickly add new loggers or sensors. You can also see your data in real time by setting up mimics. dEX comes in a range of applications so no matter where you are you can see your data and manage your loggers.
dEX Desktop software can be downloaded by clicking the icon on the right. All of the data loggers main features are accessable through this program, including channel setup, mimic screens and data download.
The software is available as an AIR File and you will need to install Abode Air to install the file. For more information, Click Here.
dEX comes pre-installed on every logger in the DT80 range. The software loads in your web browser so there is no need to install cumbersome applications on your computer. Being browser-based, dEX will work on all major operating systems including Windows, Mac and Linux.
The configuration editor allows you to view, edit and save logger configurations in an easy-to-use Windows Explorer style user interface. The configuration tree view allows definition of measurement schedules and measurements. Wiring diagrams show available wiring configurations for each sensor type. Configuration can be stored and retrieved on either the logger or a local computer.
Mimics are organised into panels which can be modified to highlight custom alarm conditions or data grouping. Mimics include dials, bar graphs, thermometers, etc. Real-time chart recorder mimic allows you to view trends and historical data over a custom time/date range. Up to 16 mimics can be displayed on up to 5 mimic pages.
Associated Research Paper
Anglia Ruskin University, UK – Combining Digital Twin and Machine Learning for the Fused Filament Fabrication Process

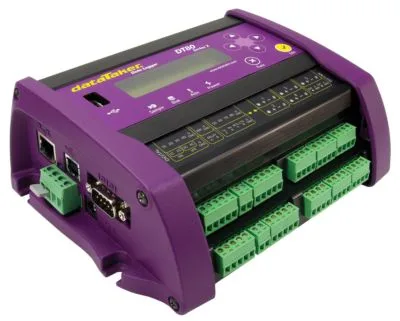

DT80
£3,675.00

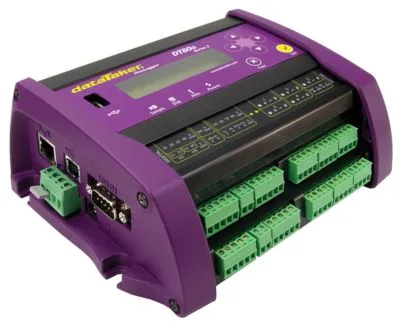

DT80G
£4,205.00

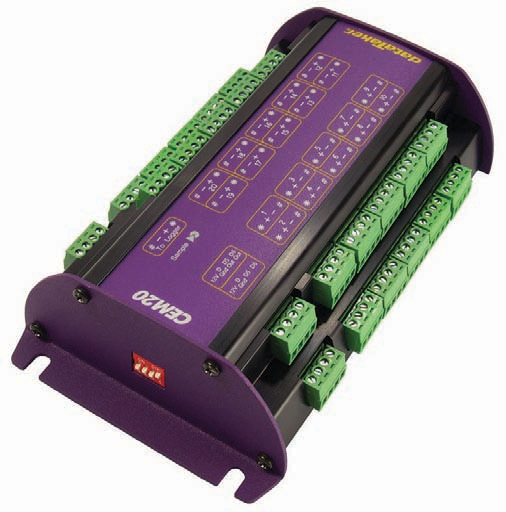

CEM-20
£1,100.00
Need help with your products or have a question for us on our custom systems? Use the form below to send us a message and our experts will be in touch to help.
