Home / Data Loggers / CEM-20
CEM-20
CEM-20 - Image 2

CEM-20

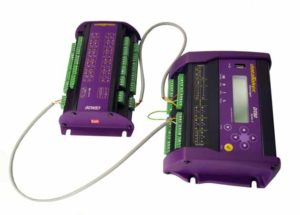

The CEM20 is the Channel Expansion Module for DT80 and DT85 data loggers Series 2 and above. This allows a further 60 single ended inputs (voltage, current or Thermocouple) or 20 fully differential inputs (PT100 or bridge) to be added to the DT80 or DT85. One full analogue input channel on the logger is used to connect the CEM 20.

£1,100.00

Need help finding the right product?

CONTACT US

Downloads

Datasheet

CEM-20 Channel Expansion Module

  • Description

Description

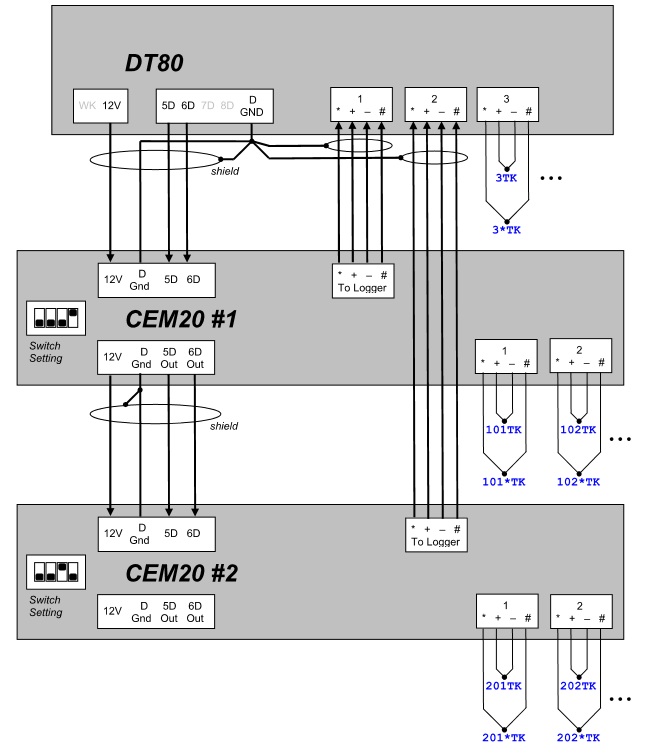

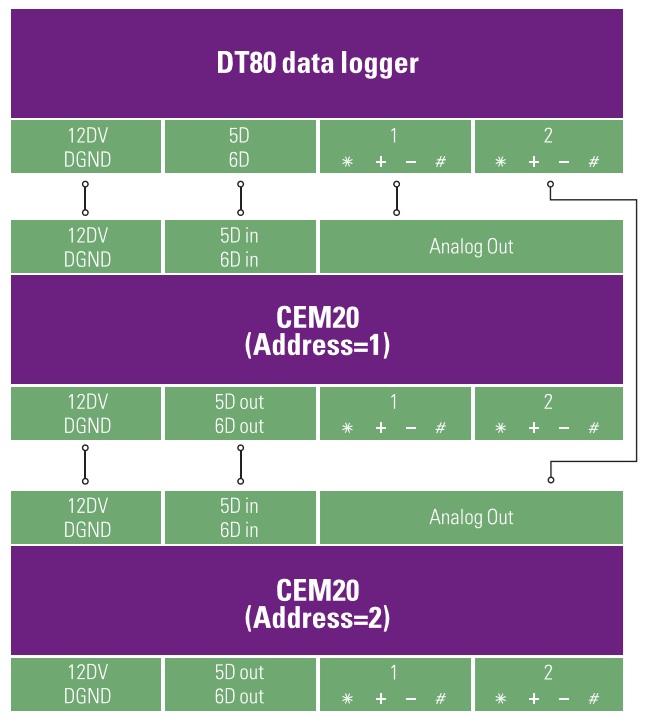

Increasing the channel capacity of the DataTaker DT80 range is made very easy by adding DataTaker Channel Expansion Modules (CEM20). Each CEM20 connects 20 universal data logging channels to the DataTaker data logger.

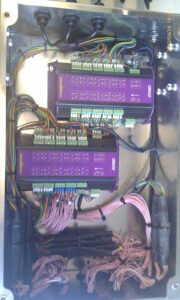

Omni Instruments can provide enclosures give you the flexibility to install your DataTaker system in a harsh or otherwise unsuitable environment by providing protection against external conditions such as water, dust, and accidental damage. These enclosures are designed to accommodate the dataTaker, channel expansion module and any other equipment required for your system. Enclosure are available for use in industrial, weather proof or portable applications, we can even provide Subsea housing that can be used with the dataTaker logger range for use in the UK Continental Shelf and even for depths up to 4,000m.

Product

Ref

Price

Product Description

DT80

£3,675.00

Datataker DT80 series standalone data logger with 5-15 analogue inputs (universal input type) and 12 digital I/O’s, expandable up to 300 channels via CEM-20 modules. Serial input suitable for Modbus, NMEA, ASCII serial input. The logger has an internal non volatile memory for up to 10,000,000 readings which can be expanded with a USB memory stick. Logging rates 25 Hz to 99 days. DT80 can be mains powered via plug in power supply, 10-30vDC external supply, or via internal battery (6V. 1.2Ah lead acid internal battery).
MORE INFO
Add to basket

DT85

£5,030.00

Datataker DT85 series standalone data logger with 16-48 analogue inputs (universal input type) and 12 digital I/O’s, expandable up to 800 channels via CEM-20 modules. Serial input suitable for Modbus, NMEA, ASCII and SDI-12 serial input. The logger has an internal non volatile memory for up to 10,000,000 readings which can be expanded with a USB memory stick. Logging rates 25Hz to 99 days. DT85 can be mains powered via plug in power supply, 10-30vDC external supply, or via internal battery (6V. 1.2Ah lead acid internal battery).
MORE INFO
Add to basket
