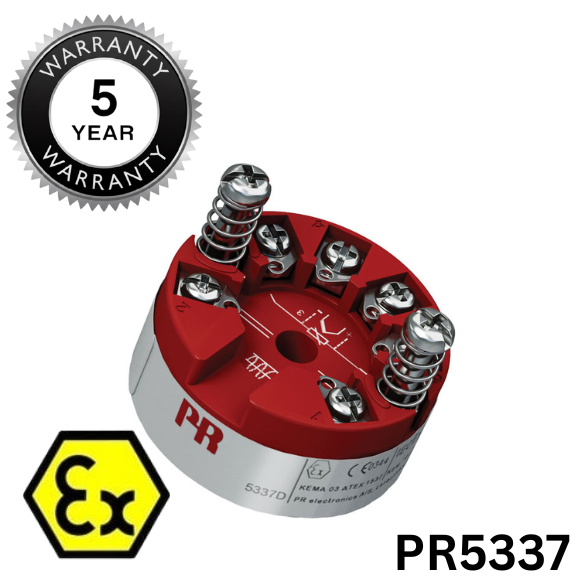

The 5337 is an extremely high accuracy sensor head mounting programmable transmitters with HART 5 or HART 7 protocol suitable for PT100/PT1000, Ni100, TC, Ohm or bipolar mV inputs. The transmitters converts the inputs into a 4-20mA output. The output signal is proportional and linear to the value of the temperature or resistance value that influences the input. The 5337 will also accept inputs from 2 RTD or TC sensors and provide a 4-20mA output with individual, difference or average temperature measurements. The unit requires an 8 to 35vDC power supply and can be mounted in a sensor head or DIN rail mounted. The unit is galvanically isolated and has the option of intrinsically safe versions.
Applications
Features
HART Protocol
The HART protocol provides a uniquely backward compatible solution for instrument communication as both 4-20 mA analog and digital communication signals are transmitted simultaneously on the same wiring. The Loop Link Programming Kit can configure the individual transmitters for multidrop mode and provide it with a unique polling address. The HART protocol revisions can be changed by user configuration to either the HART 5 or HART 7 protocl. HART provides many benefits promised by fieldbus, while retaining the compatibility and familiarity of existing 4-20mA systems.
HART® 7 protocol offers:
Options
| Type | Version |
| 5337 | A: Standard D: ATEX, CSA, FM. |
If required, Omni Instruments will program a 5337 to your specific requirements to allow your HART system to interface directly with the preprogrammed units. Please contact us for details.

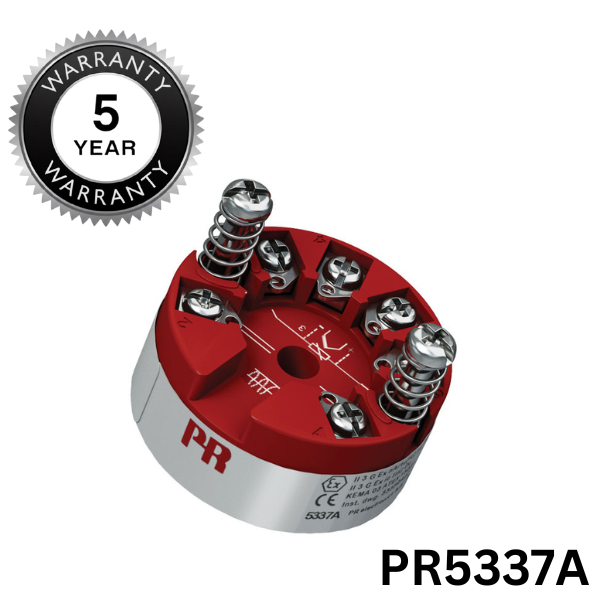

5337A
£363.00

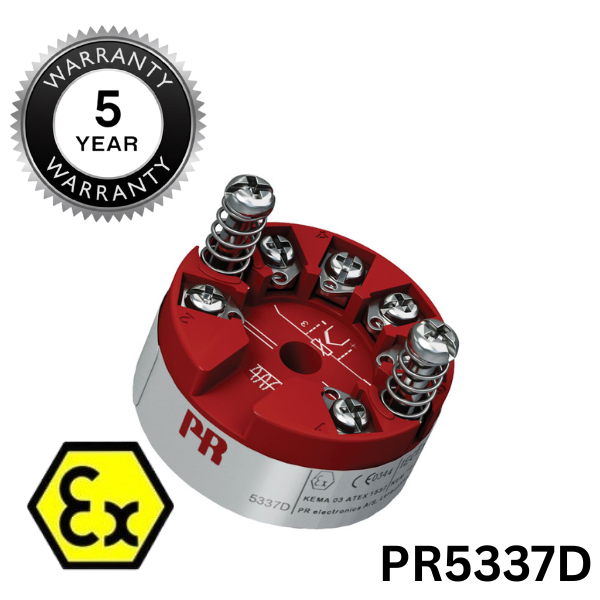

5337D
£398.79
5909
£217.34
PR-CONFIG
£19.00
