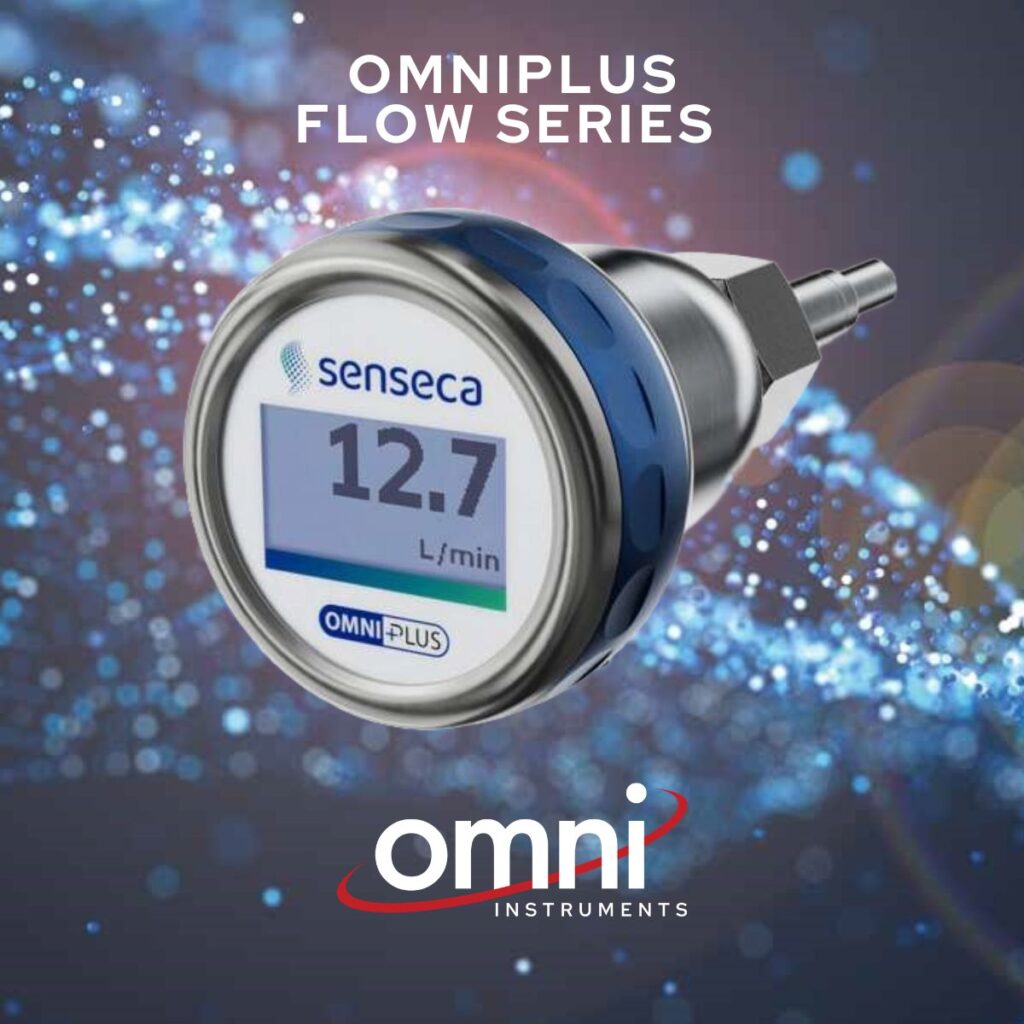

Recently added to our flow meters are a comprehensive range of intelligent OMNIPLUS flow meters from Senseca. These sensors feature a graphical LCD display, programmable parameters via the unique Honsberg rotatable ring, and robust construction for diverse industrial uses.

OMNIPLUS Flow Meters: Key Technologies

1. OMNIPLUS-VHSX: Volumetric Flow Sensor (Screw Volumeter)

Designed for precise measurement of viscous, lubricating media like oils, the OMNIPLUS-VHSX operates on a positive displacement principle, ensuring accuracy largely independent of fluid viscosity (up to 40,000 mm²/s). Fluid rotation of two interlacing screws is detected by an external Hall sensor, generating a proportional frequency signal. It supports bidirectional flow and offers analogue and switching outputs. Ideal for lubrication, hydraulics, fuel consumption, and dosing.

2. OMNIPLUS-F: Calorimetric Flow Sensor

These thermal flow sensors are perfect for aqueous fluids where no moving parts are desired, ensuring high reliability. They measure heat transfer between a heated and unheated temperature sensor. The required heat power to maintain a constant temperature difference is proportional to flow velocity. The OMNIPLUS-F excels at low flow detection, provides analogue and switching outputs (some with IO-Link), and can integrate temperature measurement. Applications include cooling circuits, pump protection, and minimum flow monitoring.

3. OMNIPLUS-HR2(V): Analogue Hall Sensor Flow Meters

These mechanical flow meters use a spring-supported piston displaced by fluid flow. A magnet on the piston is detected by a stationary Hall sensor, generating a continuous analogue signal proportional to flow rate. The OMNIPLUS-HR2 is ideal for monitoring water, whilst the OMNIPLUS-HR2V-are viscosity-stabilised and ideal for more viscous media and non-aggressive liquids. They provide analogue and programmable switching outputs. Suitable for general industrial flow, cooling systems, and process water.

Other OMNIPLUS Types:

The OMNIPLUS sensors also include the OMNIPLUS-VHZ Gearwheel Volumeter (for less viscous oils, dosing) and OMNIPLUS-RRI Rotor Flow Sensor (cost-effective for clean, low-viscosity liquids like water). The “OMNIPLUS” designation itself refers to the intelligent electronic display and control head, which can be coupled with various measurement principles, offering a consistent user interface across a wide range of applications.

The Unique Rotatable Programming Ring: Intuitive Control & Security

The OMNIPLUS series’ defining feature is its unique rotatable and often removable programming ring, which acts as both the primary interface and a clever security mechanism.

How it Works:

• • Magnetic Actuation: Embedded magnets in the ring interact with internal electronics through the sealed housing, eliminating vulnerable physical buttons, shafts, or seals.

• • Intuitive Display Interaction: The ring works with the backlit graphical LCD display. Turning it to specific positions (“STEP” or “EDIT”) allows users to navigate parameters and modify settings (e.g., switching points, units, scaling).

• • Programming Protection: The ring can be removed entirely to “lock” settings, preventing unauthorized changes. Alternatively, it can be rotated 180° and re-inserted to disable programming functions.

How it Aids Users:

• • Enhanced Durability: The sealed housing (e.g., IP67) and wear-free magnetic operation significantly boost longevity and resistance to harsh industrial environments.

• • Simplified On-Site Configuration: Users can intuitively program complex functions without special tools, software, or laptops. The clear, backlit display ensures accessibility in any lighting.

• • Increased Security: The “key” function of the removable ring prevents accidental or unauthorised parameter changes, crucial for process integrity.

• • Cost and Time Savings: This design leads to faster commissioning, reduced downtime due to easy adjustments, and lower training overhead.

In essence, Honsberg’s rotatable programming ring transforms a complex interface into a robust, secure, and user-friendly system, directly addressing common industrial challenges.

Check out the range on our website on the link below, or contact us directly for more information.
