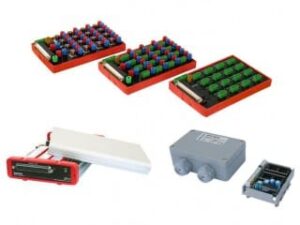

BMCM Connection Boards and Backplanes
16 way connection boards suitable for use with the LAN and USB AD16F, USB-AD12F, and USB-AD acquisition units and backplanes for housing amplifiers..

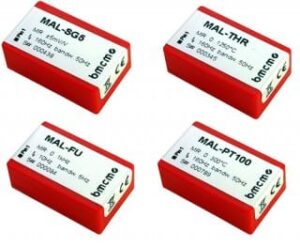

BMCM Miniature Amplifiers for LAN and USB External Acquisition Units
The MAL series of miniature amplifiers are suitable for the LAN-AD16FX, USB-AD16F and USB-AD12F external data acquisition modules. The measuring amplifiers of the MAL series are especially characterized by small size and price. The amplifier output is in the range of 5V or 0-5V. The miniature amplifiers are suitable for..

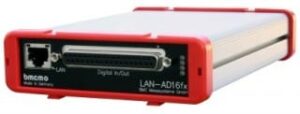

BMCM Network DAQ System for LAN Networks (TCP/IP) – LAN-AD16fx
The LAN-AD16fx features 16 Analogue Inputs (selectable ranges of 1V, 2V, 5V, 10V, with a 250kHz total sampling rate and 16 Bit resolution), 2 Analogue Outputs (10V, with 16 bit resolution), 32 digital I/O channels (3 of which can be configured as 32-bit counters) all connected to a LAN network..

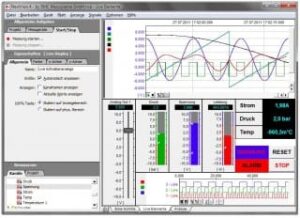

BMCM NEXTView Measurement Software for Data Acquisition & Analysis
The Nextview software allows you to visualize, control, automate, configure, scan, analyze and document with one software. You can implement your measurement applications completely without any programming efforts. The full version features all functions of the software. The NextView 4 software is suitable for 32-Bit systems and the NextView5 software..
BMCM USB DAQ System – USB-AD
The USB-AD features 16 Analogue Inputs (5V, 10Hz Sampling rate, with 12 Bit resolution), 1 Analogue Output (5V, with 12 bit resolution), 4 Digital inputs and 4 digital outputs all connected to a PC via a USB connection. Up to 127 devices can be integrated together...

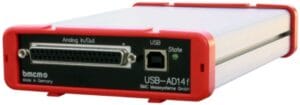

BMCM USB DAQ System – USB-AD14F USB Powered DAQ Unit
The USB-AD14F features 16 Analogue Inputs (±10V, 20kHz Sampling rate, with 14 Bit resolution), 1 Analogue Outputs (±5V, with 12 bit resolution), 8 digital inputs and 8 digital outputs (first can be configured as a 16-bit counter) all connected to a PC via a USB connection. Up to 127 devices..

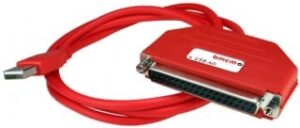

BMCM USB DAQ System – USB-PIO
The USB-PIO features 24 Digital TTL Channels via a 25-pin D-Sub female connector to a PC via a USB connection. The data acquisition system is accommodated in the D-Sub connector housing. Suitable for Windows 8.1 and 10 in 64-Bit...
