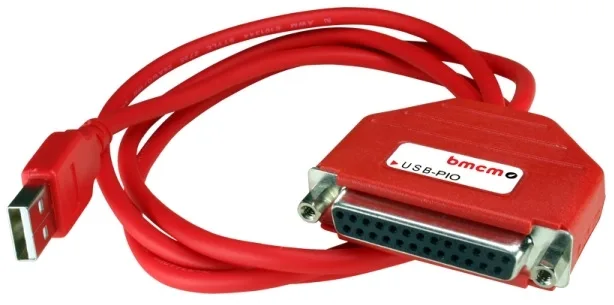

The USB-PIO features 24 Digital TTL Channels via a 25-pin D-Sub female connector to a PC via a USB connection. The data acquisition system is accommodated in the D-Sub connector housing. Suitable for Windows 8.1 and 10 in 64-Bit.
24 Channels, Digital, Output & MonitoringRecord and output digital TTL signals. The USB-PIO features three 8-bit bidirectional ports. The port lines are led out to a 25-pin D-Sub female connector. EXTRA SMALL. EXTRA RED. EXTRA LOW-PRICED.The unique idea of the USB-PIO: the data acquisition system is accommodated in the D-Sub connector housing. Not only the size is extra small but also the price. PLUG & PLAY.The connection to the PC is realized via USB. The USB-PIO provides all typical USB features (e.g. Plug&Play, Hot-Plug). Up to 127 devices can be connected and installed during operation. |
POWERED BY USB.The device is supplied with power via the USB interface. This reduces cabling efforts to a minimum and makes mobile measurements a lot easier. OPEN FOR EVERYONE.Widely supported: The data acquisition system can be used under Windows® 7/XP as well as under MAC OS X, Free BSD and Linux. The complete software for installation and programming of the USB-AD is included for free. NEXTVIEW®4. TRY FOR FREE.The DAQ system is supported by NextView® 4, the software for data acquisition and analysis. A fully functional 14-day trial is included with delivery to directly test the functionality of the USB-PIO. |
Software, connection accessories, and amplifiers
| NextView 4 Professional Software One software for everything. NextView®4 covers the entire world of PC measurement data acquisition: displaying live data, recording measured values, analyzing your measurement applications – and much more |
For information and pricing | |
| Â |
Connection boards and cables 16 way connection boards suitable for use with the LAN and USB AD16F, USB-AD14F, and USB-AD acquisition units and backplanes for housing amplifiers |
For information and pricing |
| Â |
MAL series miniature amplifiers Suitable for the LAN-AD16F, USB-AD16F, USB-AD14F external data acquisition units and suitable BP Series backplanes. Amplifiers provide conversions of voltage, current, PT100, resistance, thermocouple, strain gauge inputs to a suitable ±5V output for connection to your external data acquisition units. Isolated miniature amplifiers are also available for voltage and current inputs. |
For information and pricing |
| Select: |
|---|
OR8
£114.80
USB-PIO
£52.50
