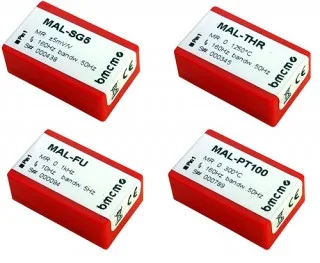

The MAL series of miniature amplifiers are suitable for the LAN-AD16FX, USB-AD16F and USB-AD12F external data acquisition modules. The measuring amplifiers of the MAL series are especially characterized by small size and price. The amplifier output is in the range of 5V or 0-5V. The miniature amplifiers are suitable for the measured quantities voltage, current, resistance, PT100, strain gauge, and thermocouple (type K). The frequency-voltage converter MAL-FU is ideal for rotation measurement. The miniature amplifiers of the MAL-ISO series are suitable for electrically isolate signals for higher accuracy measurements. MAL Modules can be fitted to suitable BP Series backplanes for connection to the DAQ modules.
The MAL Series miniature amplifiers are a cost efficient miniature measuring amplifier for a wide range of different input signals. The amplified ±5 or 0-5V output is suitable for connection to the BMCM LAN and USB data acquisition modules with the suitable BP Series backplanes and connector cable. Backplanes are available separate in stackable enclosures for easier installation.
Miniature measuring amplifiers for standard industrial signals
| Miniature Amplifiers | Parameter | Measuring Range | Additional Features |
| MAL-U10 | Voltage | ±10V | 5vDC Excitation |
| MAL-U5 | Voltage | ±5V | 5vDC Excitation |
| MAL-U1 | Voltage | ±1V | 5vDC Excitation |
| MAL-I20mA | Current | ±20mA | 5vDC Excitation |
| MAL-PT100 | PT100 |
0 to 300°C | Linearized, 1mA Current Source |

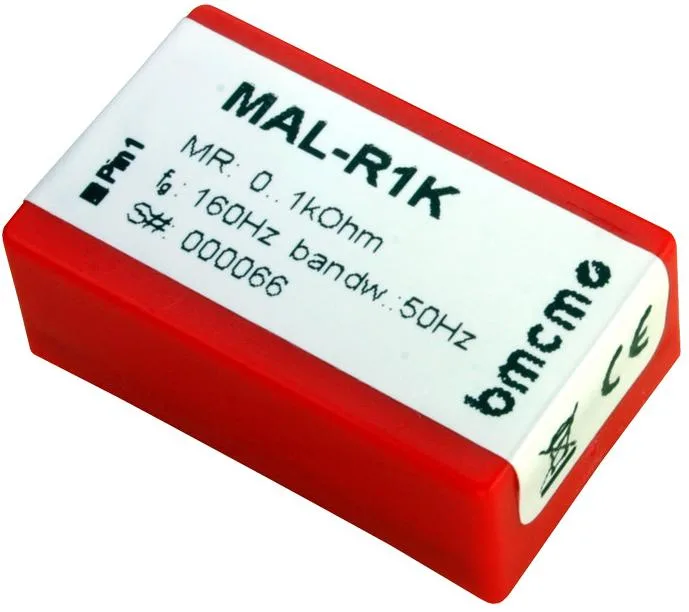

| MAL-R1K | Resistance |
0 to 1kΩ | 1mA Current Source |
| MAL-SG2 | Strain Gauge | ±2mV/V | 5vDC Excitation |

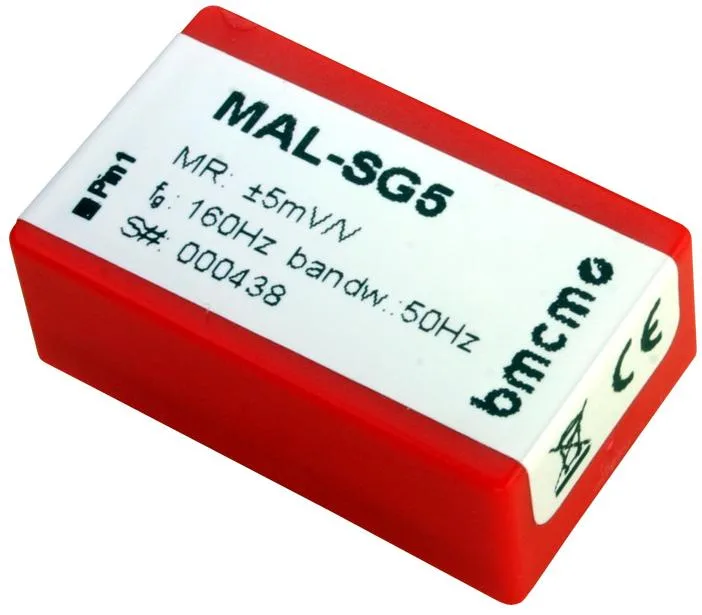

| MAL-SG5 | Strain Gauge | ±5mV/V | 5vDC Excitation |
| MAL-THR | K-Type Thermocouple |
0 to 1,250°C | Cold Junction Compensation, Non-Linearized |
| MAL-FU | Frequency | 0 to 100Hz 0 to 1kHz 0 to 10kHz |
Galvanic Isolation |
Miniature isolated measuring amplifiers for voltage and current signals
| Miniature Amplifiers | Parameter | Measuring Range | Additional Features |
| MAL-ISO50 | Voltage | ±50V | Electrical Isolation |
| MAL-ISO10 | Voltage | ±10V | Electrical Isolation |
| MAL-ISO5 | Voltage | ±5V | Electrical Isolation |
| MAL-ISO1 | Current | ±1mA |
Electrical Isolation |
| MAL-ISO20mA | Current | ±20mA | Electrical Isolation |

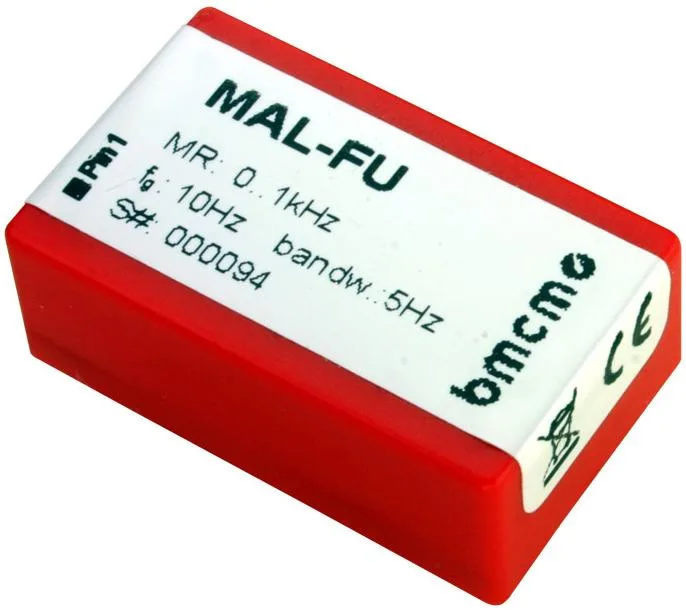

MAL-FU
£88.10

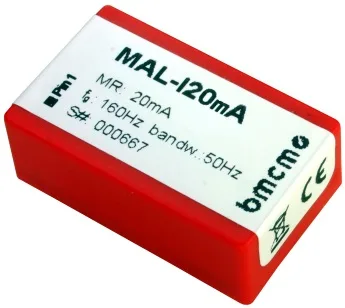

MAL-I20MA
£61.41

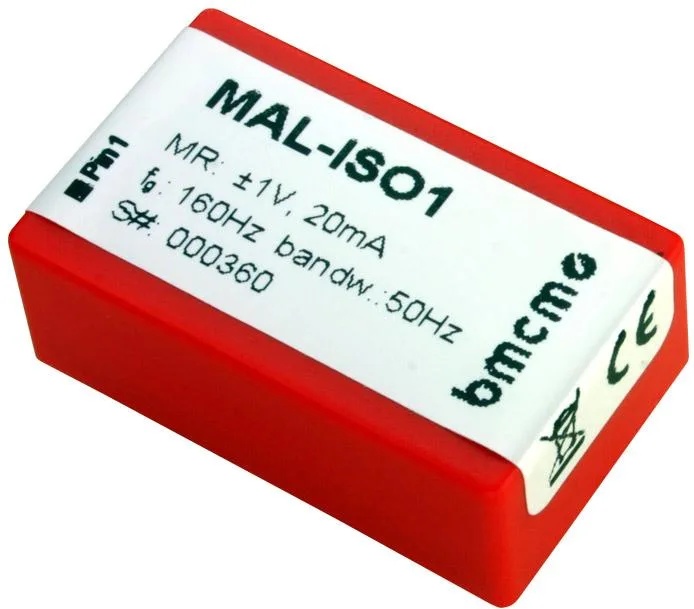

MAL-ISO1
£88.10
MAL-PT100
£88.10

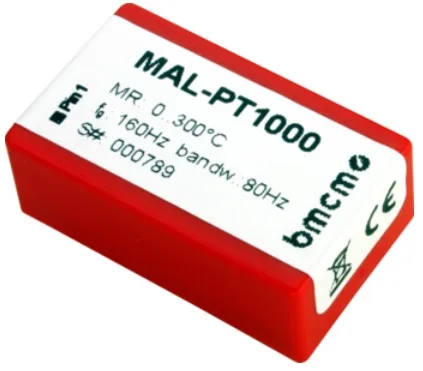

MAL-PT1000
£88.10
