PD41X Low Range Differential Pressure Transmitter.
The PD41X series are designed for measuring differential pressure values in the mBar and µBar ranges and features a port suitable for non-aggressive dry gases as a reference pressure for the measuring cell. The Series 41X capacitive pressure transmitter from Keller combines a ceramic measurement cell for low pressure ranges..
PS Series Differential Pressure Switch
The PS Series Differential Pressure Switches are a cost effective solution for various applications in building automation systems in the HVAC/R industry. The PS series switch includes a field adjustable dial with switching ranges from 20-200 pascals up to 500-4500 pascals and maximum pressure of 50kPa. Switching contacts are rates..
RHT-MODBUS Relative Humidity and Temperature Transmitters.
The RHT-WM-485-LCD and RHT-DM-485-LCD transmitters include high precision and stability sensors for measuring relative humidity and temperature. They are microprocessor based devices and, therefore, allow being entirely configured through an RS485 interface using the Modbus RTU command. The DigiConfig software allows the configuration of all transmitter features as well as..
RMS1-TX-110160-0X-GR-MB
Remote Inputs Module, 16 NPN digital inputs. RS232/RS485 Modbus ASCII/RTU Communication, Wide power supply range: 10 up to 30vDC, DIN rail mounting..
RTD-SURFACE-CURVED-5MFL
Self-Adhesive Surface Mounted PT100 Class A Sensor with 5m PFA Insulated Cable. Measurement Range -30 to +150°C. Suitable for a curved surface mounting with a 16 x 50mm rubber patch..
Rutland VertX 360 Windcharger
The Rutland VertX 360 Windcharger utilises a vertical axis configuration, meaning its main rotor shaft is set vertically. This architecture, coupled with a specifically engineered, compact Savonius turbine design, offers a distinct operational advantage to the horizontal rotor design: the turbine is inherently omni-directional. Crucially, this design also minimises noise..
SUBSEA-TEMP-MED-0-80C-MA-3/4NPTM-MCBH5M
Subsea Temperature Sensor Housing: MED - MED Housing 75mm Diameter, 95mm Housing Length Temp Range: 0-80C - Measurement Range: 0 to 80°C Output: MA - 2-Wire 4-20mA Output Signal Process Connection: 3/4NPTM - ¾" NPT Male Thread Probe Subsea Connector: MCBH5M - 5-Pin MCBH Miniature Bulkhead Connector..
SWE-N55L Loop Powered LED
The SWE-N55L Loop Powered digital indicator has a single 4-20mA current input. The measurement input is equipped with safety circuits, protecting the internal electronics against an overload. 13mm high, 4 digit, red LED display. The display is housed in a ABS Polycarbonate enclosure with an IP65 rating, making it an..
TAS237800/5A
TAS237 Series fixed core current transformer. Primary current range 800A AC, secondary current range 5A. Dimensions 185 x 84 x 45mm with three 37mm diameter apertures...

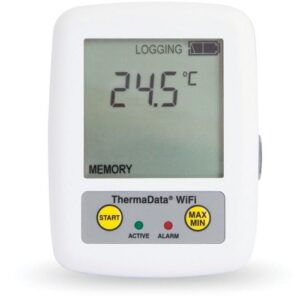

ThermaData WiFi 2 Channel Thermocouple Loggers
The ThermaData WiFi 2 Channel Thermocouple Loggers measure temperatures up to 1372 °C with a K-Type Thermocouples and up to 400°C with T-Type Thermocouples. Featuring both measurements on a single LCD display, or from any location in the world over the internet. Wall brackets or protective silicone cases are available..
Tinytag Aquatic 2 Underwater Temperature Loggers
Designed for long term immersion, these unit are waterproof to a depth of 500m making it ideal for environmental monitoring in rivers and seas. The Aquatic 2 comes in a high visibility yellow case has an attachment point that can be used to secure the logger in position. The Tinytag..
TMS3000-BAD
TMS3000 tunnel measuring system comprising of 2 DP sensors connected to control unit with analog O/P and Profibus O/P..
TSA200
TSA200 1-Wire Single Channel 0-20mA Input Module. Operating range 0-20mA with 0.01mA Resolution. Powered via 1-Wire Bus @ 68mA. Isolation voltage 1000vDC. Operating conditions: 0 to +40°C @ 0-85%RH (non-condensing). Dimensions: 85 x 35.1 x 23.5mm. Supports multiple sensors on a single bus via its unique 64-bit serial code and..
TSA202
TSA202 1-Wire Dual-Channel Analogue Input Module. Operating range 0-20mA or 0-10V with 1µA or 1mV Resolution. Powered via 1-Wire Bus @ 25mA. Isolation voltage 1000vDC. Operating conditions:-20 to +60°C @ 10-90%RH (non-condensing). Dimensions: 120 x 36 x 60mm. Supports multiple sensors on a single bus via its unique 64-bit serial..
TSA202-60
TSA202-60 1-Wire Dual-Channel 60V Input Module. Operating range 0-60V with 1mV Resolution. Powered via 1-Wire Bus @ 25mA. Isolation voltage 1000vDC. Operating conditions:-20 to +60°C @ 10-90%RH (non-condensing). Dimensions: 120 x 36 x 60mm. Supports multiple sensors on a single bus via its unique 64-bit serial code and screw less..
TSC201
The TSC201 is a 1-Wire 10A Current Sensor, suitable for AC or DC currents. Powered via 1-Wire Bus @ 30mA. Dimensions: 36 x 107 x 59mm. It features screwless terminal blocks for both the monitoring side and 1-Wire Network for easy daisy-chaining, making it a robust solution for current monitoring...
TSD800
The TSD800 is a magnetic door sensor with IP65 protection. Can be mounted to metal or wooden doors and windows. Provides a simple 'dry contact' relay output for monitoring by controller. Max 40V @ 0.2A Switching. Dimensions: 32 x 15 x 0mm, IP65...
TSH231
TSH231 1-Wire Temperature and Humidity Sensor. Temperature Range -10 to +60°C with accuracy ±0.4°C and Relative Humidity range 20-80%RH with ±3%RH accuracy. 1-Wire interface via dual RJ11 ports, suitable for easy daisy-chaining. IP54 Wall-Mounted enclosure with 68 x 105 x 35mm dimensions. Power Supply 4.5 to 26vDC (5V @ 5mA)...
TSL200
TSL200 1-Wire Ambient Light Sensor. Sensing range 0-83,000 Lux with 1 Lux Resolution. Powered via 1-Wire Bus @ 4mA. Operating conditions: 0 to +40°C @ 5-95%RH (non-condensing). IP30 enclosure with dimensions: 85 x 35.1 x 23.5mm. Supports multiple sensors on a single bus via its unique 64-bit serial code and..
TSM400-1-CP
TSM400-1-CP 1-Wire Carbon Dioxide and Pressure Sensor. CO2 Range 400 to 5,000ppm with 1 ppm Resolution. Atmospheric Pressure 10 to 1,200hPa with 1hPa Resolution. 1-Wire interface via screwless terminal block. IP20 Wall-Mounted enclosure with 81 x 81 x 30mm dimensions. Power Supply 4.5 to 26vDC (25mA, peak 150mA)...
TSM400-1-TH
TSM400-1-TH 1-Wire Temperature and Humidity Sensor. Temperature Range -10 to +60°C with accuracy ±0.4°C and Relative Humidity range 20-80%RH with ±3%RH accuracy. 1-Wire interface via screwless terminal block. IP20 Wall-Mounted enclosure with 81 x 81 x 30mm dimensions. Power Supply 4.5 to 26vDC (5V @ 10mA)...
TSP200
TSP200 1-Wire Barometric Pressure. Sensing range 300-1,100 hPa with 0.1 hPa Resolution. Powered via 1-Wire Bus @ 2mA. Operating conditions: -20 to +60°C @ 0-85%RH (non-condensing). IP30 enclosure with dimensions: 85 x 35.1 x 23.5mm. Supports multiple sensors on a single bus via its unique 64-bit serial code and daisy-chainable..
TSS8030R
The TSS8030R is a smoke detector designed for early fire warning by detecting a fixed level of smoke concentration through infrared ray scattering in its optic chamber, with factory-preset sensitivity. Controlled by a microprocessor utilising an enhanced algorithm for self-compensation of chamber contamination, this smoke sensor features a relay output,..
TSV101
TSV101 is an AC voltage detector with galvanic isolation. The unit provides a digital output for an AC voltage range of 0 to 250vAC, default switching point 170vAC, reduced to 85vAC by removing jumper. Dimensions: 85 x 35.1 x 23.5mm. Operating conditions: 0 to +40°C @ 5-85%RH (non-condensing)...
