MSR Reusable Climate Data Loggers
The MSR Reusable Climate Data Loggers is a range of compact data loggers that are designed to monitor the temperature and humidity of sensitive goods, such as pharmaceuticals, chemicals and food. The loggers will provide an automatic PDF report of the recorded measurements which is compliant with DIN 12830 and..
MTN/1187W
MTN/1187W Series Submersible RMS acceleration transducer with 5m of heavy duty polyurethane cable. Robust Stainless Steel construction with a 2-wire 4-20mA output. Measurement ranges: 0-1, 0-2, 0-5, 0-10, 0-20g. Power supply 12-32vDC. Frequency response 2 Hz to 1kHz. Operating temperature -25 to +90°C. Various mounting options. Sealed to IP68. Suitable..
Multi-Parameter Display
The CL11 benchtop display unit is an inexpensive multiple parameter meter that simultaneously measures and records CO2, humidity and temperature. The CO2 DISPLAY is a similar wall, or bench top mounted display. Equipped with the field-tested ROTRONIC HYGROMER¶© IN-1 humidity sensor, this instrument offers unbeatable value for money. Using the..

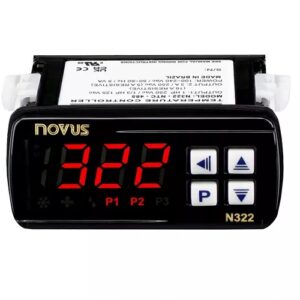

N322 Electronic Thermostat
The N322 Electronic Thermostat is designed for cooling and heating control using a single control SPDT Relay (Max 250vAC @ 16A) to activate or deactivate a compressor or electronic heater with simple ON/OFF control and a second SPST-NO Relay (Max 250vAC @ 3A) suitable for control or alarm. The N322..
Novus LogBox Dual Channel Data Logger
LogBox data loggers are available with two analogue or a single analogue and digital counter input. Ideal for applications such as flow monitoring, with there robust design and waterproof casing for easy installation. Downloading and configuration is via an infrared interface allow for PC, Laptop or PDA configuration options...
NS500/063-SUBSEA
NS 500/063 Pelton Wheel Flowmeter. 316/431 Wetted parts (PTFE or Viton oring). End connections 3/4 inch BSP. Pressure rating 345 bar. Calibrated over the range of 0.18-1.8 l/min. For use on Water. Fitted and potted with five meters of four core screened cable suitable for depths of up to 4000..
OLCT10-220
OLCT10 Fixed Gas Detector for Nitrogen Dioxide (NO2). Range 0-30ppm. Output 4-20mA. Power supply 15-30vDC, consumption 30mA max. Operating temperature -10 to +50°C. Life span 24 months. Response time less than 120 second (T90). Plastic housing, 118 x 157 x 60mm, IP65. OLCT10 Fixed Gas Detector for Nitrogen Dioxide (NO2)...
OLCT10N-003
OLCT10N Fixed Digital Gas Detector for Hydrogen (H2), Range 0-100%LEL. Accuracy ±1%LEL. Output: RS485 Modbus RTU. Power Supply: 12-30vDC, Consumption 50mA typ. Operating temperature: -20 to +55°C. Life span: 48 Months. Plastic housing, 118 x 157 x 60mm, IP65. Certified to use in ATEX II 3GD zone...
OMEGA-WE-SDC80
OMEGA Helix Woltmann Type Bulk Water Meter. Pipe diameter 80mm with PN16 flanged connections, flow range: Qmin 788 l/hr; Qn 63m3/hr; Qmax 78.75m3/hr. Epoxy coated cast Iron body suitable for up to water up to 30 C with WRAS Approval. All OMEGA Flowmeters come prepared for a pulse output of..
OMK-610-KIT1
OMK610 Squirrel oven data logger kit. Maximum of 100 minutes at 250°C. Complete kit consisting of OQ610 Squirrel data logger. Complete with TB610 HS thermal barrier, TBHS-1 heat sink, USB connection cable, light weight carry case, getting started guide, Paintview configuration and data analysis software, plus 6 TC-K-N3-3 Combined Clamp..
OMNI-ECO-200M DIN Rail Mounted Ultrasonic Flow Meter
The ECO-200M is similar to the TUF-200F but is a DIN Rail mounted unit. The unit is a low cost clamp on ultrasonic flow meter and is ideal for long-term deployment for flow measurement and closed-pipe applications, such as liquid process control, water flow measurement (hot/chill water, city water, sea..
OQ610-S Through Process Data Logging Systems
The OQ610-S data logger is suitable for taking up to 6 K or T type thermocouple temperature readings for heat treating products in your manufacturing process. The logger is housed in one of the standard, or custom, thermal barriers for protection for the required process temperature and duration. We can..
P502 Small Angle Rotary Sensor
P502 Small Angle Rotary Position Sensor. Range: Any rotation from 5 to 15 degrees. Output options of 4-20mA or bipolar DC voltage available. Electronics sealed to IP65 (connector)/IP67 (cable). Operating temperature -40 to +125°C...
PA-21Y/300BAR/22-2155-156
Series 21Y Pressure Transmitter. Range 0 to 300 Bar. Power Supply 8-32vDC, Output 4-20mA. 1/4" BSP process thread and IP67 rated M12 electrical connection. Compensated temperature range 0 to +50°C and ±0.5%FS linearity...
PA-DPS-85
PA-DPS Differential Air Pressure Switch in an IP54 enclosure. Range 200-1000 pascals with a Silver Cadmium Oxide (AgCdO) contacts suitable for up to 1.5A (0.4)/250vAC. 6mm id pressure connections. Dimensions 130mm diameter x 99mm high. Units come complete with duct fixing kit (consisting of 2 x pitot tubes, 2m tubing..

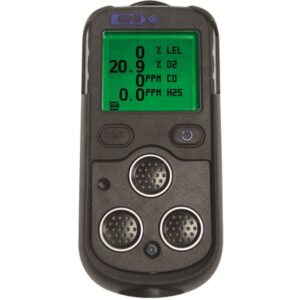

Personal Surveyor (PS200 Series) Portable Gas Detector
A robust and accurate portable gas detector the Personal Surveyor (PS200 series) provides the unrivalled protection in confined space applications with audible and visual alarms in the event of exposure to dangerous levels of gases being detected. The PS200 unit can detect and display CH4, O2, H2S and CO in..

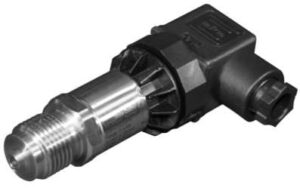

PL-525-0.3
PL-525 Relative Low Range Pressure Transmitter. Range 0 to 300mBar. Power Supply 10-30vDC, output 4-20mA. IP65 stainless steel casing with ½" BSP male thread pressure connection, ceramic diaphragm and DIN connector. Operating temperature range -15 to +80°C...
PL-692-0.4
PL-692-0.4 differential pressure transmitter suitable for liquids, steam and gases. Pressure range 0-400mBarD over a 4-20mA output with 11-33vDC power supply. IP65 stainless steel casing with a pair of 6mm compression pressure connection, ceramic Al2O3 (96%) diaphragm and 1.5m flying lead. Operating temperature range -15 to +85°C...
PM-CT-200SC
Current Transformer (split core type) - Primary current - 200A, Rating Class 3 - 2.5 VA..
PM-CT-M200
Current Transformer (moulded type) - Primary current - 200A, Rating Class 3 - 5VA..
RIPS P502 small angle rotary sensor (2.5 to 10 deg travel)
The P502 RIPS (Rotary Inductive Position Sensor) is an affordable, durable, high-accuracy rotary sensor designed for industrial and scientific feedback applications, like the P500, but with smaller angles of deflection for better resolution. The P502 provides a linear output proportional with angle of rotation. Each unit is supplied with the..
RME1 Ethernet Web Enabled Analogue Acquisition Unit
The RME1 is an analogue acquisition module that will accept 4-20mA, 0-10V, PT100 and thermocouple (Type J, K, T, R, N, E, S) inputs. The unit provides an output over Modbus TCP, web page (HTTP), SNPM (Version 1), CVS/XML and can be configurable with the M2M web interface. Data can..
RMS1-OR-11088-0X-GR-MB
Remote I/O Module, 8 Opto isolated digital inputs, 8 Relay Digital Outputs. RS232/RS485 Modbus ASCII/RTU Communication, Wide power supply range: 10 up to 30vDC, DIN rail mounting..
RMS2-TC-110-00-80-IA3-MB
RMS2-TC Thermocouple Acquisition Module. The unit provides 8 Differential Input Channel suitable for Type J, K, T, R, N, E or S Thermocouples. An RS232 and RS485 isolated pluggable terminal blocks (Modbus RTU/ASCII Slave) plus USB port for configuration. DIN Rail mounted industrial enclosure with terminal blocks. Power supply: 10-30vDC,..
