Description

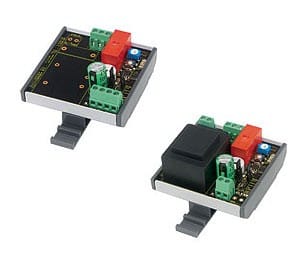

The Water Detection Alarm System includes an alarm module that can be connected to water detection cable, rain sensor, condensation sensor or a point sensor and will activate a relay when the sensor detects the presence of water. Allowing you to customise each module to suit your specific needs, whether that is to add alarming to an existing BMS system, or to add some automation.
Applications
- A WD-AMX with the WD-CS Water Detection Cable can be used to raise an alarm in areas where water leaks are likely to occur, ie basements, etc.
- A WD-AMX with the WD-RS Rain Sensor can be used to automatically close windows as soon as the rain starts to fall.
- A WD-AMX with the WD-CPS Condensation Sensor can be used to open windows when a dew point is reached, preventing condensation.
- A WD-AMX with the WD-PS Point Sensor can be used to control the upper level of water on a wall or surface.
Features
- AC detector excitation for reliability
- 24vDC or 230vAC versions
- LED indication of leak status
- Manual or auto reset alarm output
- Audible alarm
Specifications
Supply: | WD-AMX-1 WD-AMX-2 |
24vDC ±10% 230vAC @ 50Hz |
Supply current: | 50mA max. | |
Output: | SPDT relay 12A @ 230VAC | |
Response time: | <1 sec. after exposure | |
Sensors: | WD-CS, WD-PS, WD-RS | |
Max. sensor cable length:Â Â Â Â | 200 metres (with leader cable) | |
Audible alarm: | 85dB @ 2.3 kHz at 10cms. | |
Ambient: | Temp.          Humidity       |
0 to 40°C 0 to 80% RH non-condensing |
Dimensions: | 72 x 64 x 55mm | |
Weight: | WD-AMX-1 WD-AMX-2 |
100g 240g |
