Description

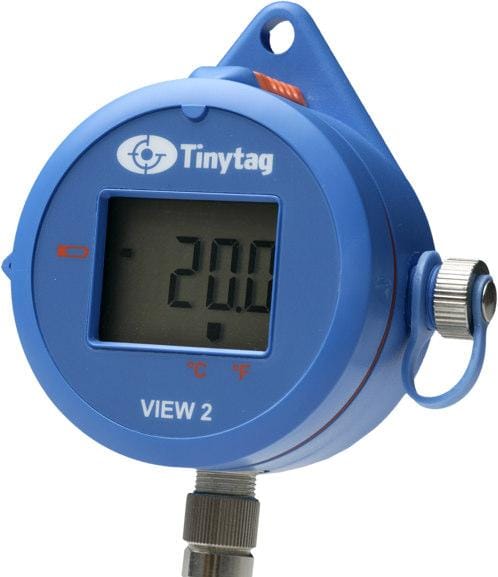

The TV-4204 Tinyview 2 is a reliable low temperature data logger with a display, designed for use with external PT1000 probes in a variety of applications, particularly where a high reading accuracy and resolution are needed. The large range of Tinytag PT1000 probes means the logger is able to monitor temperatures down to -200°C, making the TV-4204 suitable for freezer or cryogenic application monitoring

Features

• Low temperature data logger with display
• LCD display of current readings
• 30,000 reading capacity
• High Accuracy
• High Reading Resolution
• Fast Data Offload
• 2 user-programmable alarms
• Low battery monitor
• User-replaceable battery

Popular Applications

• Freezer monitoring
• Cold room monitoring
• Organ transport
• Cryogenic applications
• Frozen food defrost curves

Logger Specifications		Sensor Specifications
Total Reading Capacity:	30,000 Readings	Sensor Type:	External PT1000 Probe
Memory Type:	Non-Volatile	Measuring Range:	-200 to +100°C (depending on probe)
Display:	4 digits + indicators	Logger Resolution:	0.01°C or better
Display Modes:	°C or °F	Display Resolution:	0.1°C

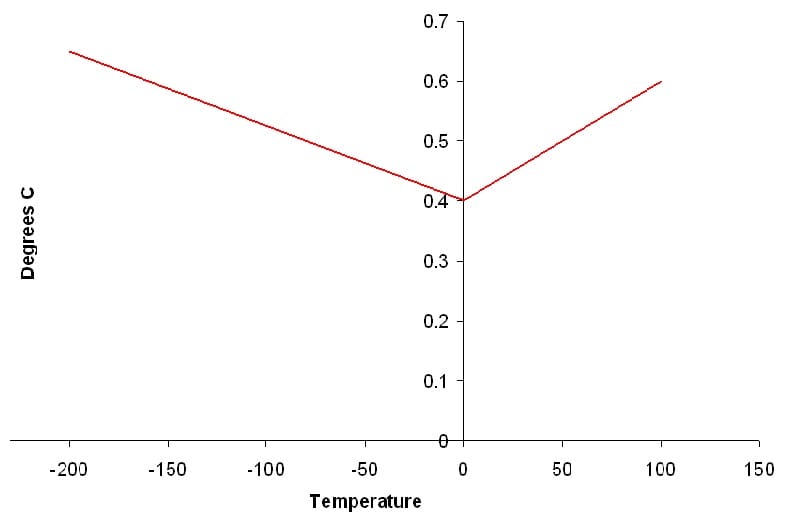

Display Refresh Rate:	Every 2 seconds	Sensor Accuracy: (Graph below is based on PB-7002 or PB-7003 probes)
Trigger Start:	Magnetic Switch
Delayed Start:	Relative/Absolute (up to 45 days)
Stop Options:	When full After n Readings Never (overwrite oldest data)
Reading Types:	Actual, Min, Max
Logging Interval:	1 sec to 10 days
Alarms:	2 fully programmable; latchable
Operational Temperature Rating:	-30 to +70°C
IP Rating:	IP65 (Splashproof)
Case Dimension (HxWxD):	85 x 77 x 35mm, 60mm diameter
Weight:	85g

The TV-4204 can be downloaded using the USB cable, Ref CAB-0007-USB. The download cable connects to the base of the logger and allows for configuration and downloading data.

This Logger can be used with any of the Tinytag PT1000 probes available.
