Description

The TV-4104 Tinyview 2 is a reliable high temperature data logger with a display, designed for use with external PT100 probes in a variety of applications, particularly where a high reading accuracy and resolution are needed. The large range of Tinytag PT100 probes means the logger is able to monitor temperatures up to 300°C or 600°C, making the TV-4104 suitable for oven or industrial process monitoring

Features

• High temperature data logger with display
• LCD display of current readings
• 30,000 reading capacity
• High Accuracy
• High Reading Resolution
• Fast Data Offload
• 2 user-programmable alarms
• Low battery monitor
• User-replaceable battery

Popular Applications

• Industrial process monitoring
• Oven validation
• Autoclave validation
• Oven monitoring/validation
• Foodstuff temperature profiling

Logger Specifications		Sensor Specifications
Total Reading Capacity:	30,000 Readings	Sensor Type:	External PT100 Probe
Memory Type:	Non-Volatile	Measuring Range:	-50 to 300/600°C (depending on probe)
Display:	4 digits + indicators	Logger Resolution:	0.02°C or better
Display Modes:	°C or °F	Display Resolution:	0.1°C

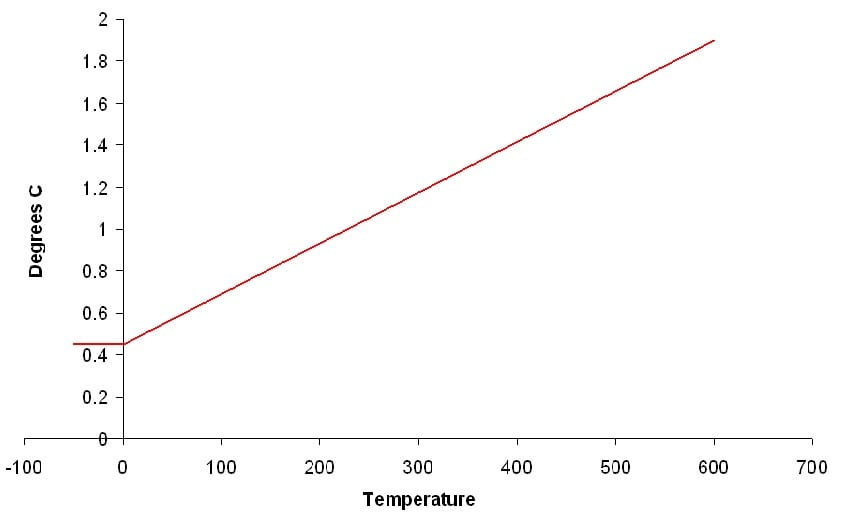

Display Refresh Rate:	Every 2 seconds	Sensor Accuracy: (Graph below is based on PB-6005 or PB-6006 probes)
Trigger Start:	Magnetic Switch
Delayed Start:	Relative/Absolute (up to 45 days)
Stop Options:	When full After n Readings Never (overwrite oldest data)
Reading Types:	Actual, Min, Max
Logging Interval:	1 sec to 10 days
Alarms:	2 fully programmable; latchable
Operational Temperature Rating:	-30 to +70°C
IP Rating:	IP65 (Splashproof)
Case Dimension (HxWxD):	85 x 77 x 35mm, 60mm diameter
Weight:	85g

The TV-4104 can be downloaded using the USB cable, Ref CAB-0007-USB. The download cable connects to the base of the logger and allows for configuration and downloading data.

This Logger can be used with any of the Tinytag PT100 probes available.
