Description
| Specification | |
| Memory Size | 16K (Non-volatile) |
| Readings | 30,000 |
| Resolution | 8 bit |
| Delayed Start | Relative / Actual (up to 45 days) |
| Stop Options | When full, After No. of Readings, Never (wrap around) |
| Reading Types | Actual, Minimum, Maximum |
| Logging Interval | 1 second to 10 days |
| Offload | While stopped or when logging in minute multiples |
| Alarms | Two, fully programmable |
| Functional Range | -40°C to +85°C (LCD -20 to +70°C) |
| IP Rating | IP65 Splash proof (Food Grade) |
| Battery Life | Up to three years |
| Dimensions | Diameter 60mm, Depth 35mm |
| Weight | 85g |

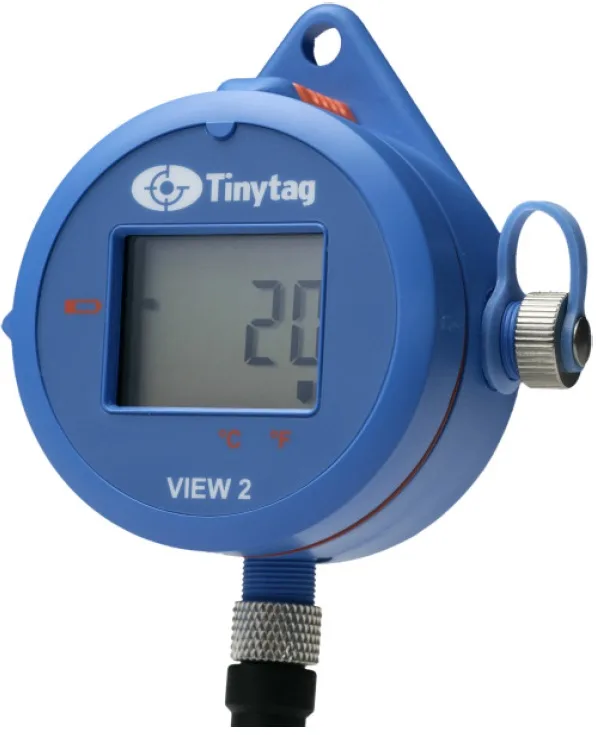

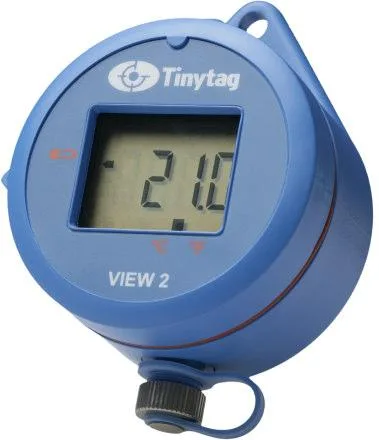

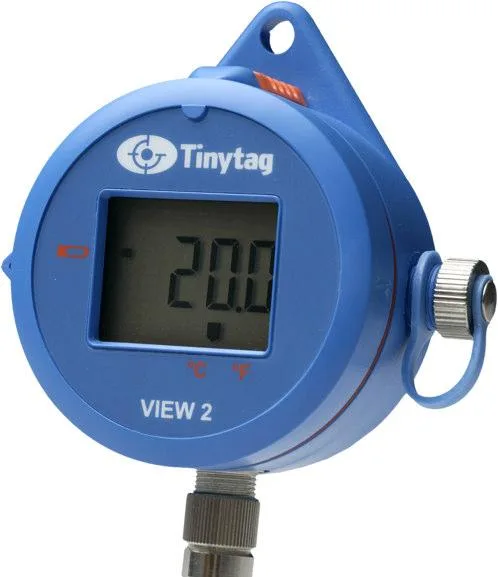

The Tinytag View 2 range are ideal for applications where a visual indication of the current parameters need to be viewed without a PC. The LCD display will display both temperature and humidity while also indicating if an alarm level has been reached. Very easy to install and with a wide range of probes and accessories make this suitable for indoor and outdoor applications. An audible alarm can be provided by the ACS-5000.

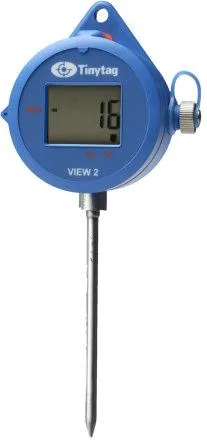

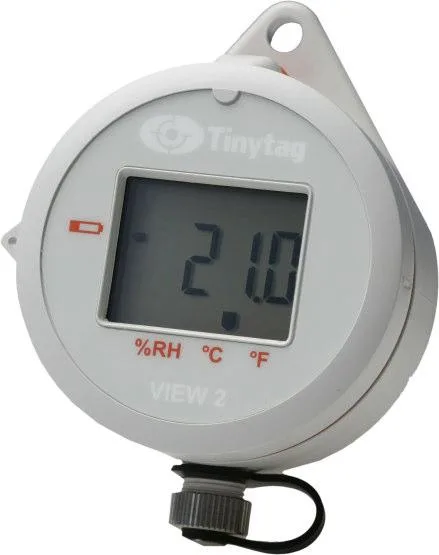

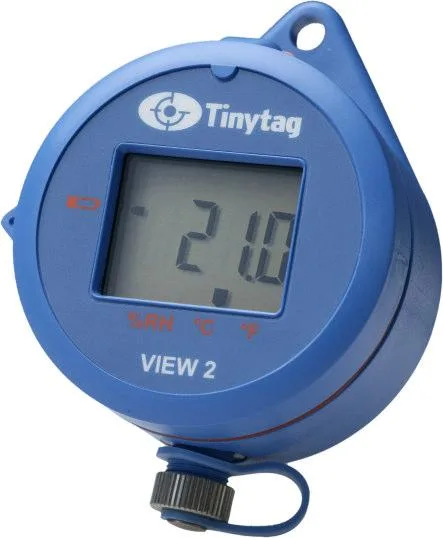

Large memory for up to 30,000 readings to be stored before data download is required. Models are available with internal temperature sensor, external temperature sensor, internal humidity and also external humidity/temperature probe. Popular applications include refrigeration and food storage monitoring.
You will also require Tinytag Explorer software and a CAB-0007 data download cable to use these loggers. These are available separately or as a pack ( SWPK-7-USB-ENG ).
