Description

Tinytag Explorer Software

Tinytag Explorer is the principal software for operating all Tinytag data loggers. This windows based program has a simple step-by-step launch page providing a simple guide to easily manage both Tinytag loggers and recorded data.

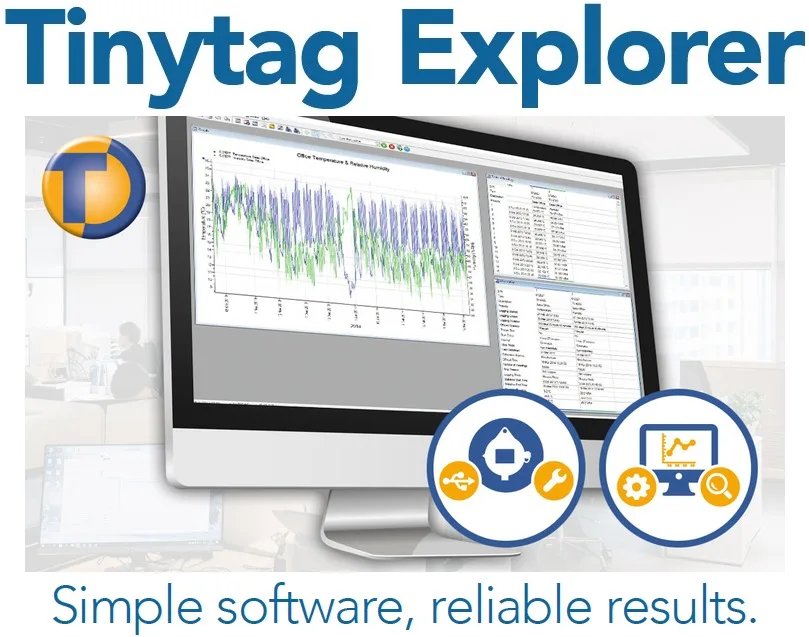

Offloaded, recorded data is initially presented as a graph but can also be displayed as a table of readings, if required. These views are supplemented with an information view, that summaries details of the data being shown, with options for daily min./max view. The software also includes a dew point tool for temperature and relative humidity data loggers.

Data from multiple logging runs or multiple loggers can be easily combined into the same graph or table, allowing easier analysis of that data using the comprehensive overlay features.

The software also includes a comprehensive, illustrated help file to take you through the basics as well as the more advanced features and a printed getting started guide. The start up guide and software supports multiple languages and covers a range of different languages: English, Chinese, French, German, Italian, Korean, Spanish and Swedish.

Features

• Quick to get started, simple step-by-step set up interface
• Illustrated and comprehensive ‘Help’ file
• Overlay feature allows data traces from multiple recordings on the same graph
• Graphical, tabular and information views
• Supports .txt, CSV, Excel, and XML export formats
• Dew Point Tool
• Top and tail feature for masking unwanted data
• Bulk Offload Tool
• Current reading feature that allows you to check your loggers
• Site licence that allows software to be installed on multiple PCs
• Multiple language support

Minimum System Requirements

• Operating System: Vista, 7 or 8/8.1 (x86 or x64 versions).
• Browser: Internet Explorer version 8 or above, Firefox and Google Chrome
• Processor: 200MHz Pentium III processor or better (1.6GHz recommended).
• Memory: 512Mb (1024Mb recommended for Vista).
• Hard Disk Space: At least 30 Mb available hard disk space (120Mb recommended).
• Monitor: Minimum 256 colours, resolution 800 x 600 (15” Monitor with 16 bit colour, 800 x 600 resolution or greater recommended).
