The Tinytag Plus 2 data loggers are the designed for use in a variety of harsh, outdoor and industrial applications. Housed in a robust, waterproof (IP68) casing, they can be deployed outdoors for monitoring environmental conditions, wildlife habitats, and indoor in industrial areas or dirty manufacturing processes. This section includes Tinytag Plus 2 loggers suitable for measuring temperature and humidity. Versions available include single and dual channel loggers with internal and external sensor options for cryogenic low temperatures and high temperatures up to 600°C.
The Tinytag Plus 2 range of data loggers are designed for a large range of applications, including temperature and relative humidity. These are classed as the workhorse of the complete Tinytag range as they feature a very robust construction and can be used a in large range of applications including shipment, outdoor environmental and submersible monitoring applications. PT1000 data logger is ideal for cryogenic applications.
Large memory for up to 32,000 readings to be stored before data download is required. LED indicators located on the front of all of the units give a visual indication when high or low alarm levels have been reached. High resolution (0.01°C) provides even better accuracy compared to similar data loggers from alternative vendors. Easy to use software for data download, graphing and logger configuration.
| Specification | |
| Memory Size | 32K (Non-volatile) Plus 2 |
| Readings | 32000 |
| Resolution | 12 bit |
| Delayed Start | Relative / Actual (up to 45 days) |
| Stop Options | When full, After No. of Readings, Never (wrap around) |
| Reading Types | Actual, Minimum, Maximum |
| Logging Interval | 1 second to 10 days |
| Offload | While stopped or when logging in minute multiples |
| Alarms | Two, fully programmable |
| Functional Range | -40 to +85°C (Logger) |
| IP Rating | IP68 Water proof |
| Battery Life | Up to 12 months,internal battery monitor |
| Dimensions | 34mm x 51mm 80mm |
| Weight | 55g |
You will also require Tinytag Explorer software and a CAB-0007 data download cable to use these loggers. These are available separately or as a pack (SWPK-7-USB).

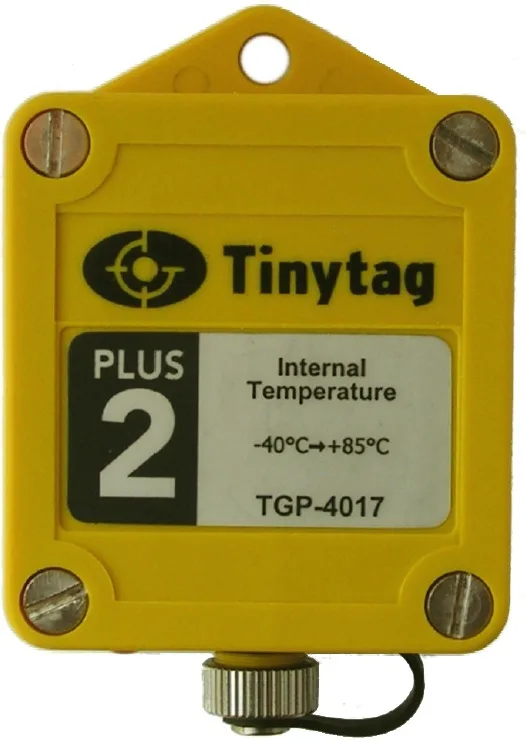

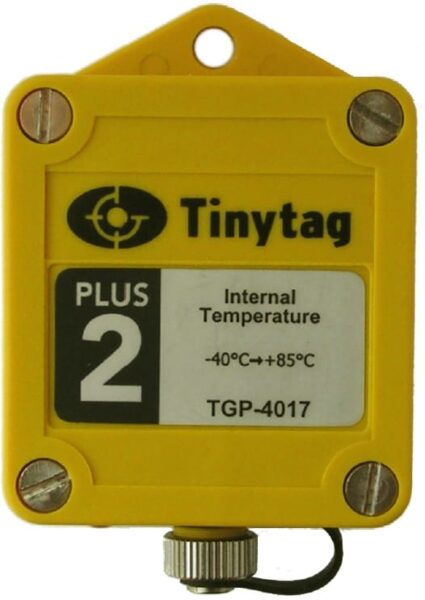

TGP-4017
£120.00

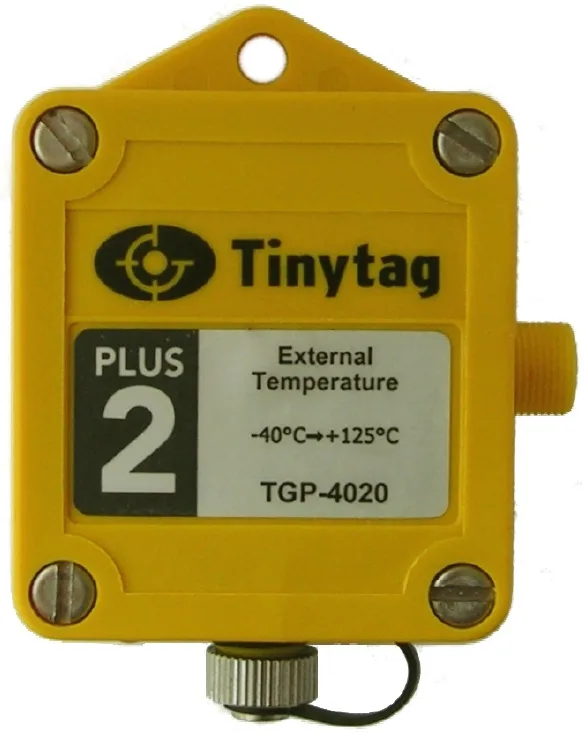

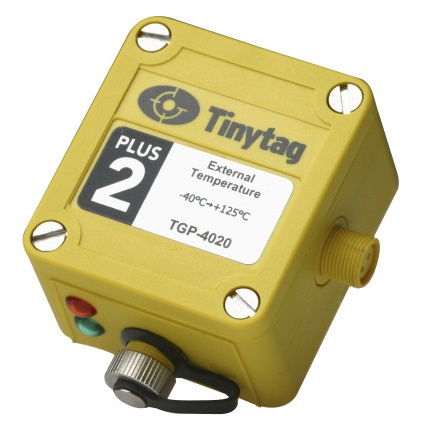

TGP-4020
£120.00

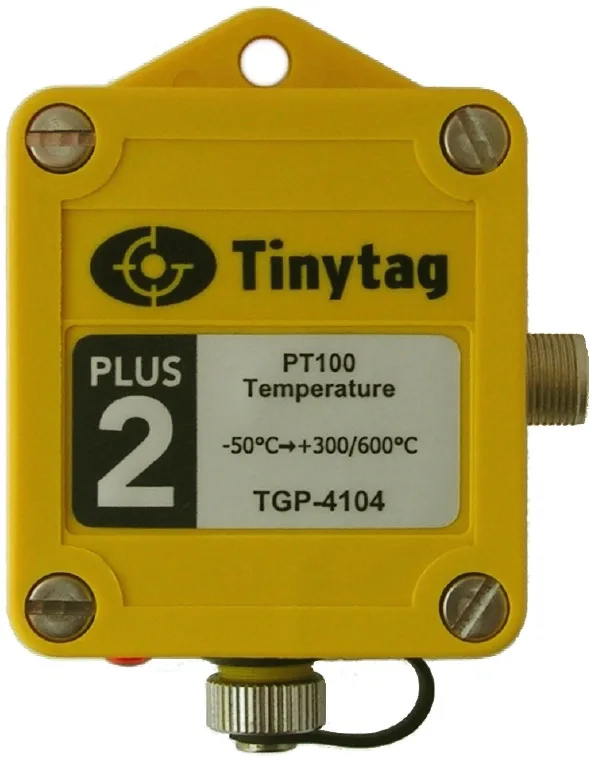

TGP-4104
£140.00
TGP-4205
£140.00

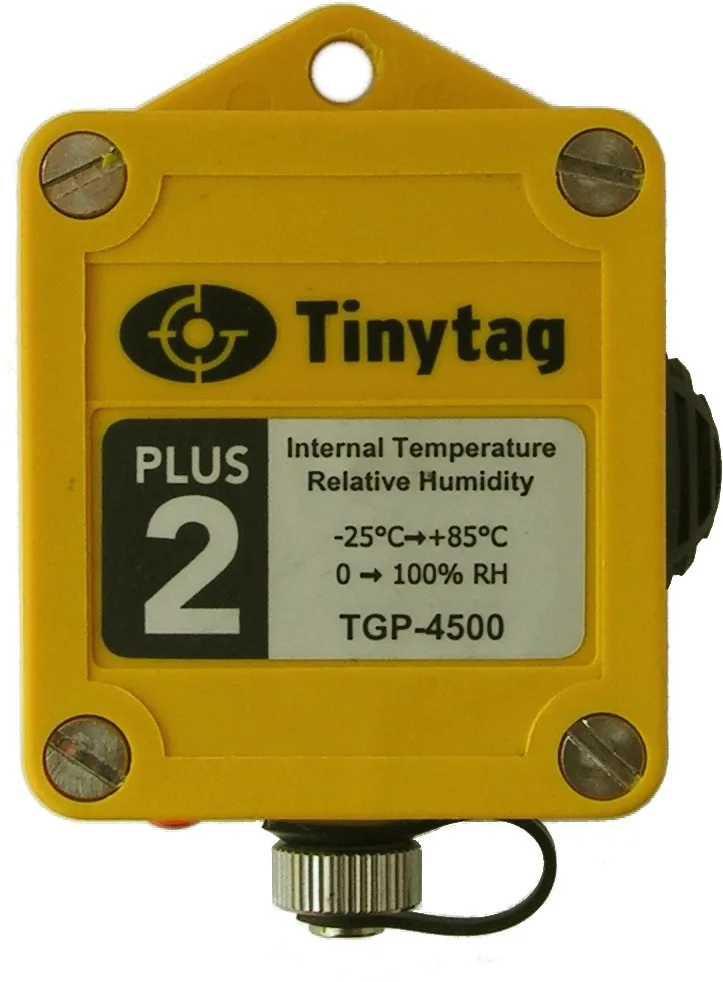

TGP-4500
£190.00
